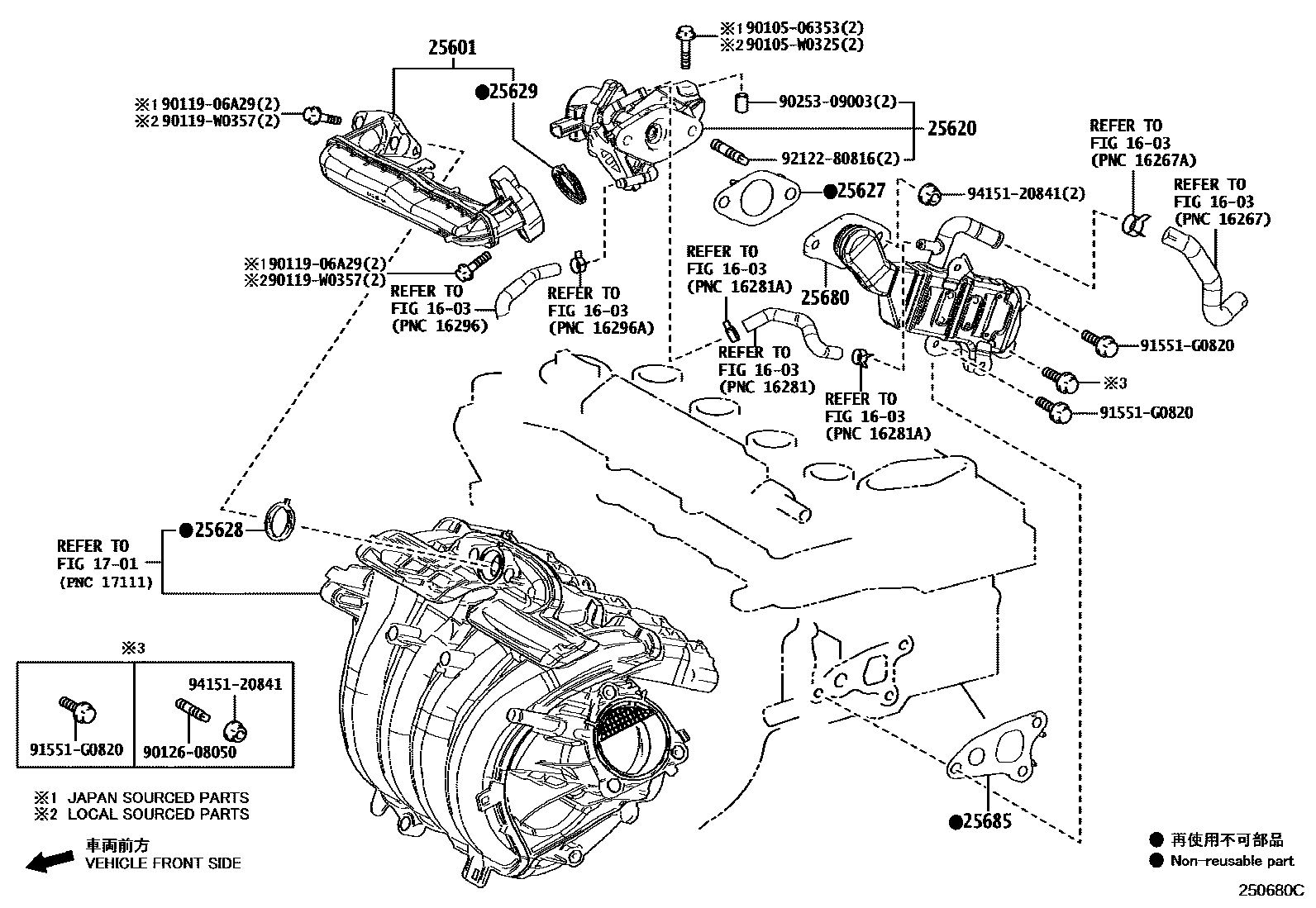

EXHAUST GAS RECIRCULATION SYSTEM
1603
1701
25601PIPE SUB-ASSY, EGR, NO.1
*132
*613
25620VALVE ASSY, EGR
*132
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO6,WITHOUT(ON BOARD DIAGNOSIS)
PERU SPEC&EXHAUST EMISSION CONTROL-EURO6,WITHOUT(ON BOARD DIAGNOSIS)
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO6,WITHOUT(ON BOARD DIAGNOSIS)
NEW CALEDONIA SPEC&EXHAUST EMISSION CONTROL-EURO6,WITHOUT(ON BOARD DIAGNOSIS)
REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL&FUEL CAUTION LABEL-ENGLISH&MOROCCO SPEC&CATALYTIC CONVERTER-9R-08 & 11R-08
*613
25627GASKET, EGR VALVE
*132
*613
25628GASKET, EGR INLET
*132
*613
25629GASKET, EGR VALVE ADAPTER
*132
*613
*132,*613
25680COOLER ASSY, EGR
*132
*613
*132,*613
25685GASKET, EGR COOLER, NO.1
*613
*132
*132,*613
9010506353
main90105-06353
90105W0325
main90105-W0325
9011906A29
main90119-06A29
90119W0357
main90119-W0357
9012608050
main90126-08050
9025309003
main90253-09003
91551G0820
main91551-G0820
9212280816
main92122-80816
9415120841
main94151-20841
18 parts on this diagram · 2 diagrams in section
