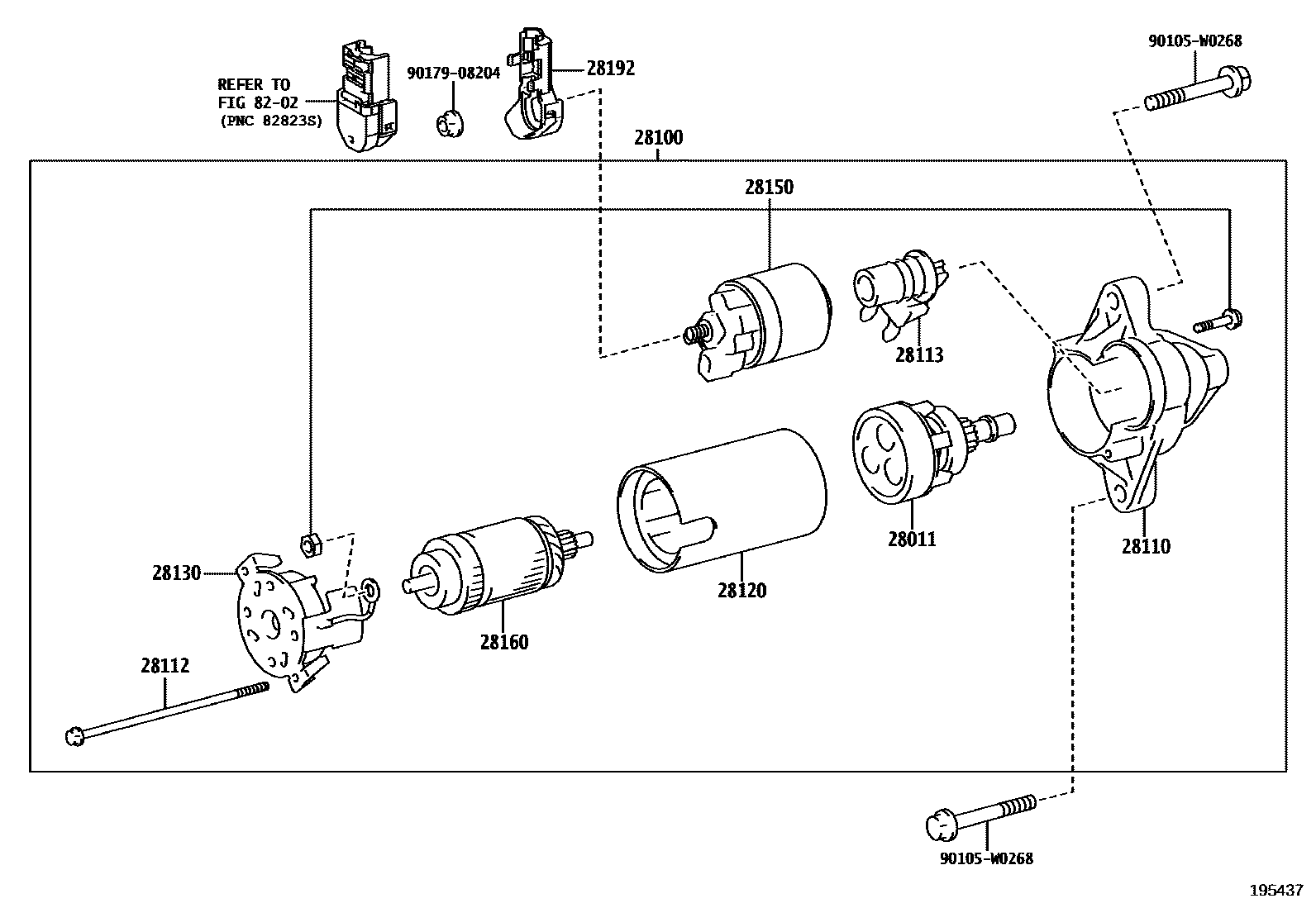

STARTER
28011CLUTCH SUB-ASSY, STARTER
28100STARTER ASSY
12V 1.2KW
12V 1.7KW
12V 1.7KW,LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)
28110HOUSING ASSY, STARTER DRIVE
28112BOLT, HOUSING SET
28113LEVER, STARTER PINION DRIVE
28120YOKE ASSY, STARTER
LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)
28130FRAME ASSY, STARTER COMMUTATOR END
28150SWITCH ASSY, MAGNET STARTER
LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)
28160ARMATURE ASSY, STARTER
LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&COLD AREA SPEC
LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&SUB COLD AREA SPEC
LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)
LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)
28192COVER, STARTER
8202
90105W0268
main90105-W0268
9017908204
13 parts on this diagram · 4 diagrams in section
