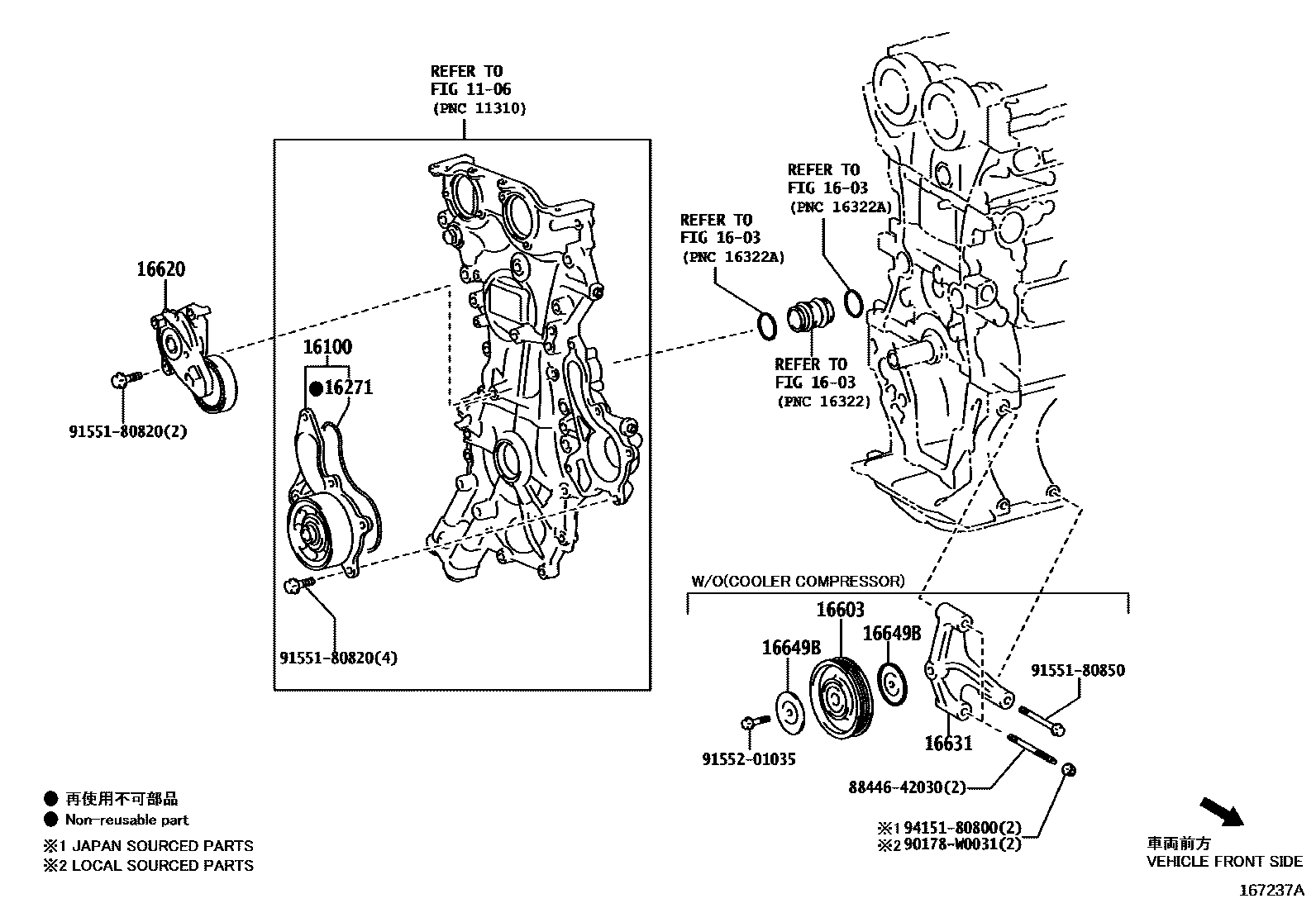

WATER PUMP

0001 1 0002 1 0003 1

1106

1603

16100PUMP ASSY, ENGINE WATER

main16100-80014i8NRFTS..NRE210201901

main161A0-39035i2ZRFXE..ZWE211201901

main161A0-39045i2ZRFXE..ZWE219202301

16271GASKET, WATER PUMP

main16271-37020i2ZRFXE..ZWE211201901

main16271-47060i8NRFTS..NRE210201901

16603PULLEY SUB-ASSY, IDLER, NO.1

main16603-50030i8NRFTS..NRE210..G201901-202010

LIGHT GRADE

16620TENSIONER ASSY, V-RIBBED BELT

main16620-47061i8NRFTS..NRE210201901

16631BRACKET, IDLER PULLEY

main16631-47010i8NRFTS..NRE210..G201901-202010

LIGHT GRADE

16649BPLATE, IDLER PULLEY COVER

main16649-50030×2i8NRFTS..NRE210..G201901-202010

LIGHT GRADE

8844642030BOLT, IDLE PULLEY

main88446-42030

90178W0031

main90178-W0031

9155180820

main91551-80820

9155180850

main91551-80850

9155201035

main91552-01035

9415180800

main94151-80800

14 parts on this diagram · 3 diagrams in section
