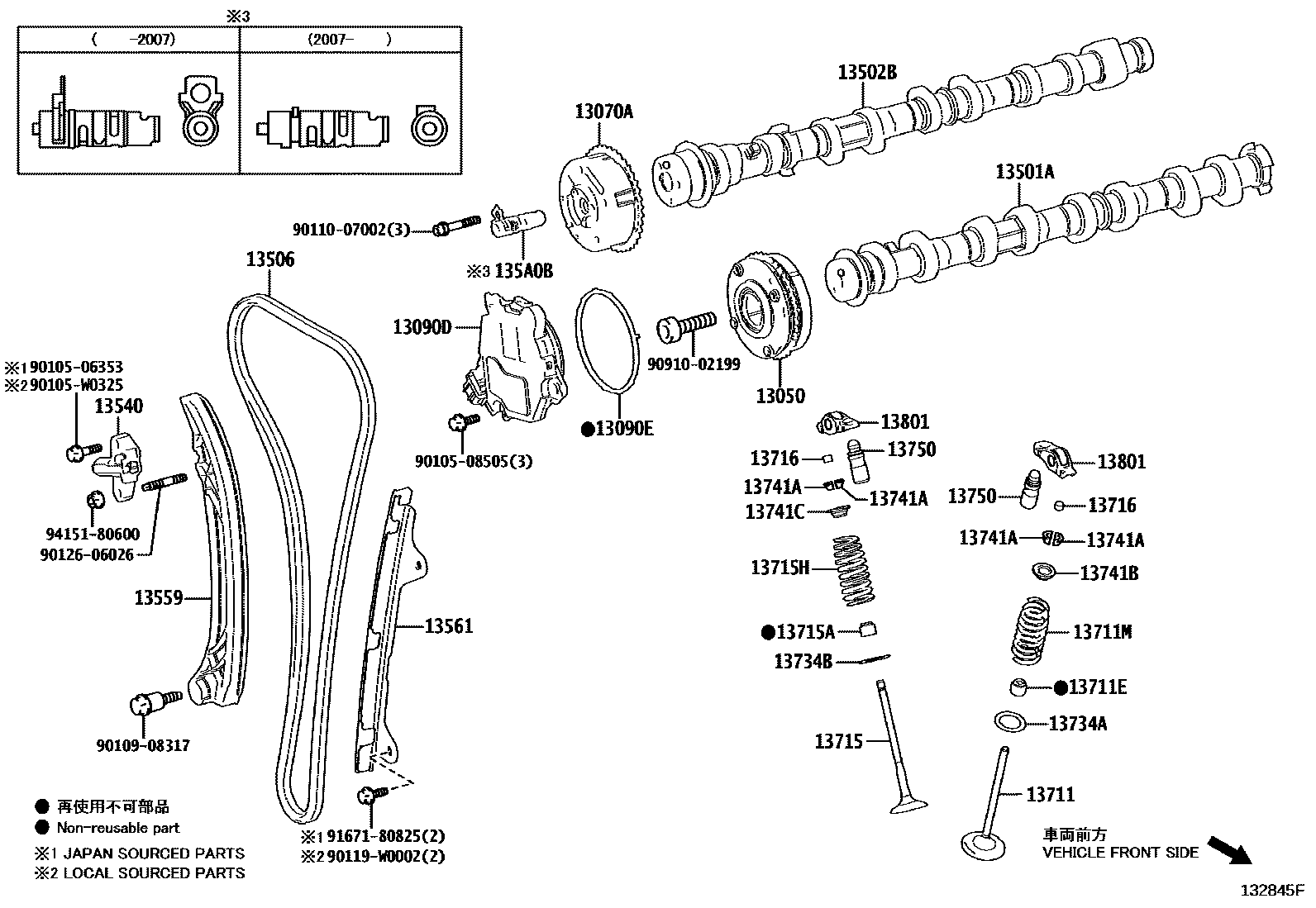

CAMSHAFT & VALVE
13050GEAR ASSY, CAMSHAFT TIMING
*132
*613
*132,*613
13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST
*132,REFER PNC135A0B
*613,REFER PNC135A0B
*132,REFER PNC135A0B,*613,REFER PNC135A0B
13090DMOTOR ASSY, CAM TIMING CONTROL W/EDU
*132
*613
*132,*613
13090ERING, O(FOR CAM TIMING CONTROL MOTOR)
*613
*132
*132,*613
13501ACAMSHAFT SUB-ASSY, INTAKE
*132
*613
13502BCAMSHAFT SUB-ASSY, EXHAUST
*132
*613
13506CHAIN SUB-ASSY
(L)
*132
(J)
*613
13540TENSIONER ASSY, CHAIN, NO.1
(L)
*132
(J)
*613
13559SLIPPER, CHAIN TENSIONER
(L)
*132
(J)
*613
13561DAMPER, CHAIN VIBRATION, NO.1
MARK=UK
*132
NO MARK
*613
*613
135A0BVALVE ASSY, CAMSHAFT TIMING
*132
*613
*132,*613
13711VALVE, INTAKE
(L)
*132
*132,(J),*613
(J),*613
(J)
*613
(L),*613
13711ESEAL, INTAKE VALVE STEM OIL
(L)
*613
(J)
*132
13711MSPRING, COMPRESSION(FOR INTAKE VALVE)
*613
*132
*132,*613
13715VALVE, EXHAUST
(L)
*132
(J),*613
*132,(J),*613
(J)
*613
(L),*613
(L),*613
13715ASEAL, EXHAUST VALVE STEM OIL
(L)
*613
(J)
*132
13715HSPRING, COMPRESSION(FOR EXHAUST VALVE)
*132
*132,*613
*613
13716CAP, VALVE STEM
(L)
*132,(J),*613
*613
*132
(J),*613
(J)
(L),*613
13734SEAT, VALVE SPRING
(L)
(J)
13734ASEAT, INTAKE VALVE SPRING
*132
*613
*132,*613
13734BSEAT, EXHAUST VALVE SPRING
*132
*613
*132,*613
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
(J)
*132
*613
*132,*613
(L)
13741BRETAINER, INTAKE VALVE SPRING
*132
*613
*132,*613
13741CRETAINER, EXHAUST VALVE SPRING
*132
*613
*132,*613
13750ADJUSTER ASSY, VALVE LASH
(L)
(J)
*132
*613
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
(L)
*132
(J)
*613
9010506353
9010508505
90105W0325
main90105-W0325
9010908317
9011007002
90119W0002
main90119-W0002
9012606026
9091002199
9167180825
9415180600
37 parts on this diagram · 3 diagrams in section
