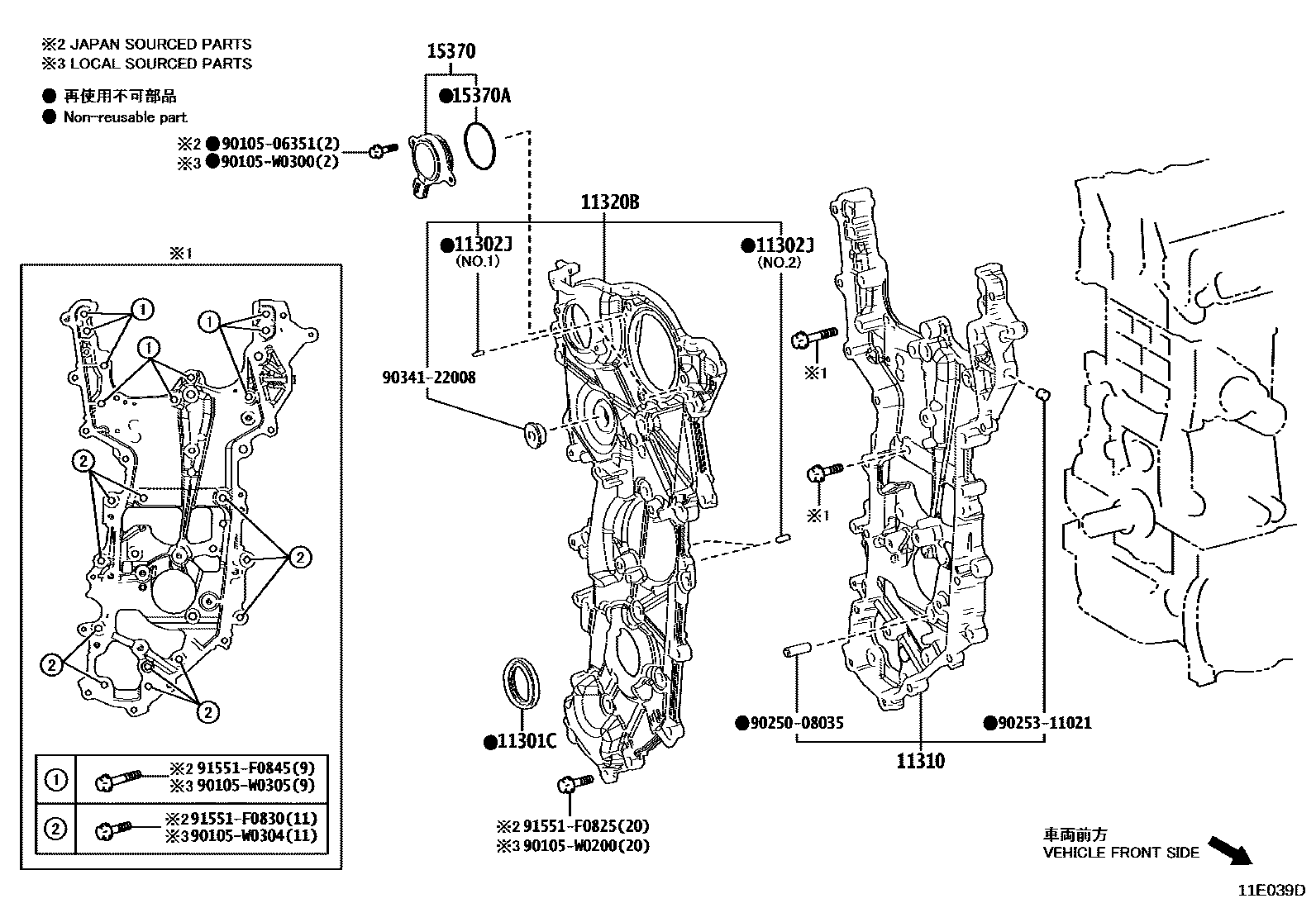

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-40044iM20AFXS..MZEH12201902

*132

main90311-W0021iM20AFXS..MZEH19202301

*613

11302JPIN, STRAIGHT(FOR TIMING CHAIN COVER)

main90250-04097×2iM20AFXS..MZEH12201902

*132,NO.1:REFER ILL.

main90250-06003×2iM20AFXS..MZEH12201909

*613,NO.2:REFER ILL.

11310COVER ASSY, TIMING CHAIN

main11310-0T160i2ZRFXE..ZWE219202301

(L)

main11310-0T170i2ZRFXE..ZWE211201901

(L)

main11310-24010iM20AFXS..MZEH19202301

*132

main11310-37080i2ZRFXE..ZWE211201901

(J)

main11310-37110i2ZRFXE..ZWE219202301

(J)

main11310-47081i8NRFTS..NRE210201901

main11310-F2030iM20AFXS..MZEH12201909

*613

main11310-37090i2ZRFXE..ZWE211..LHD..(D,G,N)201901

MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO6,WITHOUT(ON BOARD DIAGNOSIS)

11320BCOVER ASSY, TIMING CHAIN, NO.2

main11320-24010iM20AFXS..MZEH12201902

*132

main11320-F2030iM20AFXS..MZEH19202301

*613

15370SOLENOID ASSY, CAM TIMING OIL CONTROL

main15370-25020iM20AFXS..MZEH12201902

*132

main15370-47010×2i8NRFTS..NRE210201901

15370ARING, O(FOR CAM TIMING OIL CONTROL SOLENOID)

main90301-44006iM20AFXS..MZEH19202301

*132,*613

main90301-50003×2i8NRFTS..NRE210201901

9010506351

main90105-06351

90105W0200

main90105-W0200

90105W0300

main90105-W0300

90105W0304

main90105-W0304

90105W0305

main90105-W0305

9025008035

main90250-08035

9025311021

main90253-11021

9034122008

main90341-22008

91551F0825

main91551-F0825

91551F0830

main91551-F0830

91551F0845

main91551-F0845

17 parts on this diagram · 4 diagrams in section
