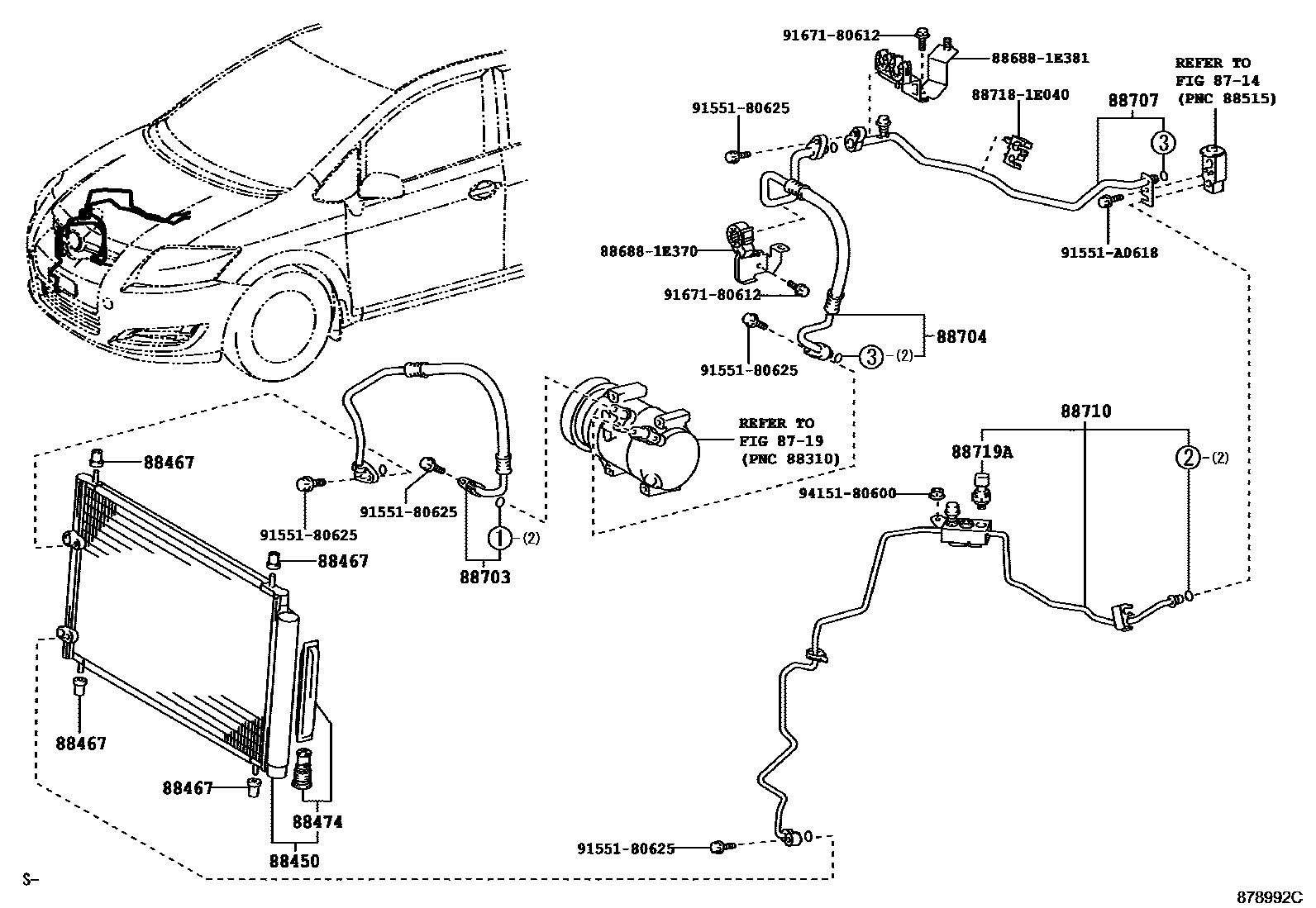

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1O-RING

8714

8719

88450CONDENSER ASSY, W/RECEIVER

main88450-02280iNDE150..TERRA200610-200812

AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)

main88450-02280iNDE150..TERRA200812-200910

AIR CONDITIONER-MANUAL AIR CONDITIONER

main88450-02410iADE150..SOL200805-200901

AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)

main88450-02410iADE150..TERRA200901-200910

AIR CONDITIONER-MANUAL AIR CONDITIONER

main88450-12280iNDE150201012-201208

main88450-12280iZRE151,ZZE150..SOL200610-200812

AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)

main88450-12280iNRE150,ZRE15#..(6F,6FS)..SOL200809-201208

AIR CONDITIONER-MANUAL AIR CONDITIONER

main88450-12290iADE150..TERRA200610-200805

AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)

88467CUSHION, COOLER CONDENSER, NO.1

main16716-28010iNDE150201012-201208

main16716-28010iADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL200610-200901

AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)

main16716-28010iNDE150..(6F,6FS)..SOL;ADE150,NRE150,ZRE15#..(6F,6FS)..SOL..(DCRL,HTWC,HTWVM)200809-201208

AIR CONDITIONER-MANUAL AIR CONDITIONER

88474DRYER, COOLER

main88474-12030iADE150..SOL200610-200812

AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)

main88474-12030iNRE150,ZRE15#..(6F,6FS)..SOL200809-201208

AIR CONDITIONER-MANUAL AIR CONDITIONER

main88474-12030iNDE150201012-201208

main88474-17010iNDE150..TERRA;ADE150..TERRA..DCRL200812-200910

AIR CONDITIONER-MANUAL AIR CONDITIONER

main88474-17010iNDE150..(5F,5FS)..SOL200610-200901

AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)

88703HOSE SUB-ASSY, DISCHARGE

main88703-12830iZRE151..SOL200910-201003

main88703-12830iZRE15#..SOL200812-200910

AIR CONDITIONER-MANUAL AIR CONDITIONER

main88703-12830iZRE151..SOL200610-200812

AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)

main88703-12840iZZE150..TERRA200610-200812

AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)

main88703-12850iNDE150..SOL200610-200812

AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)

main88703-12860iADE150..SOL200610-200801

AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)

sub88703-1A130

main88703-1A100iNRE150..TERRA200809-200910

AIR CONDITIONER-MANUAL AIR CONDITIONER

main88703-1A110iADE150..TERRA200901-200910

AIR CONDITIONER-MANUAL AIR CONDITIONER

main88703-1A120iNDE150..SOL200812-200910

AIR CONDITIONER-MANUAL AIR CONDITIONER

main88703-1A120iNDE150201012

main88703-1A130iADE150..SOL200802-200901

AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)

88704HOSE SUB-ASSY, SUCTION

main88704-1A180iZRE151..SOL200610-200612

AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)

sub88704-1A181

main88704-1A181iZRE15#..TERRA200812-200910

AIR CONDITIONER-MANUAL AIR CONDITIONER

main88704-1A181iZRE151..SOL200701-200812

AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)

main88704-1A181iZRE151..SOL200910-201003

main88704-1A190iZZE150..SOL200610-200812

AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)

main88704-1A200iNDE150..SOL200610-200812

AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)

main88704-1A210iADE150..TERRA200610-200901

AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)

main88704-1A330iNRE150..TERRA200809-200910

AIR CONDITIONER-MANUAL AIR CONDITIONER

main88704-1A340iADE150..SOL200901-200910

AIR CONDITIONER-MANUAL AIR CONDITIONER

main88704-1A350iNDE150201012

main88704-1A350iNDE150..SOL200812-200910

AIR CONDITIONER-MANUAL AIR CONDITIONER

88707PIPE SUB-ASSY, SUCTION

main88707-12250iNDE150,ZRE151,ZZE150..SOL200610-200901

AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)

main88707-12250iADE150..SOL..DCRL;NDE150,ZRE15#..SOL200812-200910

AIR CONDITIONER-MANUAL AIR CONDITIONER

main88707-12250iNDE150201012

main88707-12300iNRE150..TERRA200809-200910

AIR CONDITIONER-MANUAL AIR CONDITIONER

88710TUBE ASSY, AIR CONDITIONER

main88710-12760iZRE15#..SOL200812-200910

AIR CONDITIONER-MANUAL AIR CONDITIONER

main88710-12760iZRE151..SOL200910-201003

main88710-12760iZRE151,ZZE150..SOL200610-200812

AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)

main88710-12770iNDE150201012

main88710-12770iNDE150..SOL200610-200812

AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)

main88710-12770iNDE150..SOL200812-200910

AIR CONDITIONER-MANUAL AIR CONDITIONER

main88710-12780iADE150..TERRA200610-200901

AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)

main88710-12780iADE150..SOL200901-200910

AIR CONDITIONER-MANUAL AIR CONDITIONER

main88710-1A030iNRE150..TERRA200809-200910

AIR CONDITIONER-MANUAL AIR CONDITIONER

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iZRE151..SOL200809-200910

AIR CONDITIONER-MANUAL AIR CONDITIONER

main88719-33020iNDE150201012

main88719-33020iNDE150,ZRE151,ZZE150..SOL200610-200901

AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)

886881E370BRACKET, COOLER DIAPHRAGM

main88688-1E370

886881E381BRACKET, COOLER DIAPHRAGM

main88688-1E381

887181E040PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1E040

9155180625

main91551-80625

91551A0618

main91551-A0618

9167180612

main91671-80612

9415180600

main94151-80600

17 parts on this diagram · 6 diagrams in section
