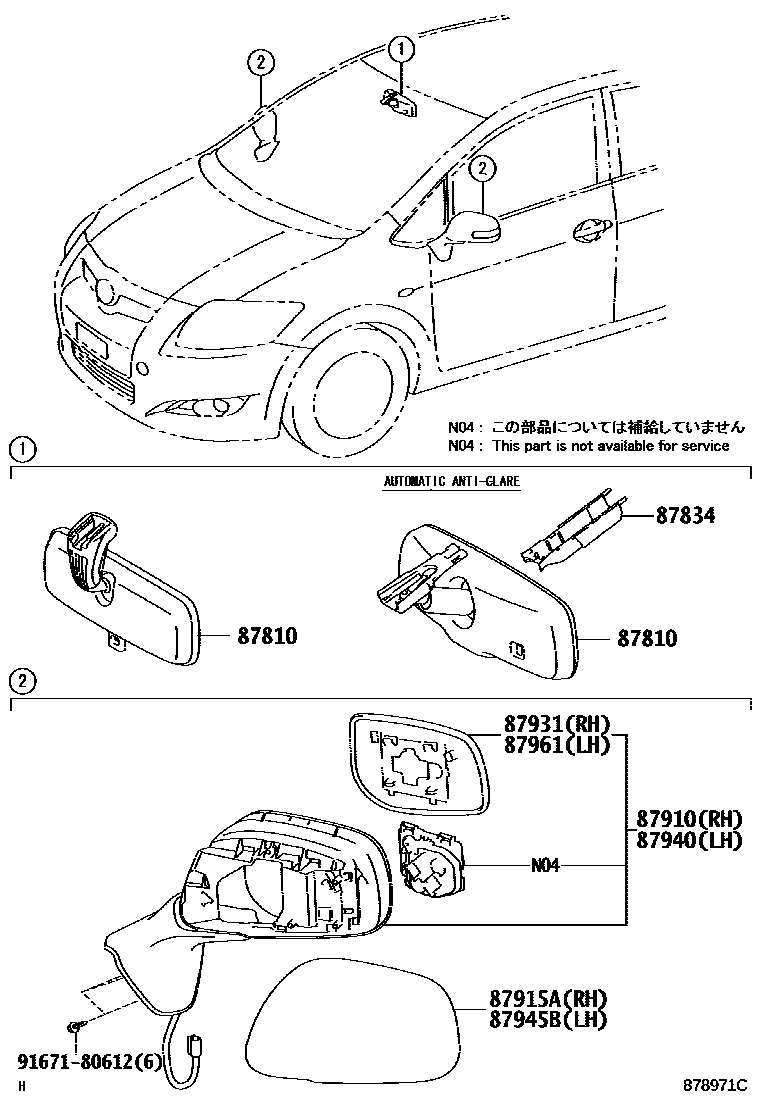

MIRROR
87810MIRROR ASSY, INNER REAR VIEW
INTERMITTENT WIPER-AUTO(RAIN SENSOR)
main87810-0F050iNDE150,NRE150..LHD..(6F,6FS)..SOL;ADE150,ZRE15#..(6F,6FS)..SOL..(DCRL,HTWC,HTWVM)200811-200910
INTERMITTENT WIPER-AUTO(RAIN SENSOR)
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
INTERMITTENT WIPER-AUTO(RAIN SENSOR)
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-12A80iNDE150..LHD..(6F,6FS);ADE150,NRE150,ZRE15#..LHD..(6F,6FS)..(DCRL,HTWC,HTWVM)200809-200910
NO PAINT REQ.
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(BLACK),W/HEATER
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(BLACK),W/HEATER
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(BLACK),W/HEATER
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER
87915ACOVER, OUTER MIRROR, RH
SUPER WHITE 2,040
SILVER ME.,1F7
GRAY ME.,1G3
BLACK MC.,209
RED M.M.,3R3
DK.BLUE MC.,8S6
LT.BLUE M.M.,8S1
BLUE ME.,8T7
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER,SUPER WHITE 2,040
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER,GRAY ME.,1G3
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER,SILVER ME.,1C0
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),BLACK MC.,209
main87915-33010-J2iADE150,NRE150,ZRE152..TERRA..(DCRL,HTWC,HTWVM);NDE150,ZRE151..(6F,6FS)..TERRA..(DCR,DCRL,HTWVM)200809-200910
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),LT.BLUE M.M.,8S1
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER,DK.BLUE MC.,8S6
DK.BLUE ME.,8T8
87931OUTER MIRROR, RH
main87931-12A80iNDE150..LHD..(6F,6FS);ADE150,NRE150,ZRE15#..LHD..(6F,6FS)..(DCRL,HTWC,HTWVM)200809-200910
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(BLACK),W/HEATER
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(BLACK),W/HEATER
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(BLACK),W/HEATER
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-12A90iNDE150..LHD..(6F,6FS);ADE150,NRE150,ZRE15#..LHD..(6F,6FS)..(DCRL,HTWC,HTWVM)200809-200910
NO PAINT REQ.
main87940-12B00supersedes 87940-12A90iADE150,NRE150,ZRE152..LHD..TERRA..(DCRL,HTWC,HTWVM);NDE150,ZRE151..LHD..(6F,6FS)..TERRA..(DCR,DCRL,HTWVM)200809-200910
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(BLACK),W/HEATER
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(BLACK),W/HEATER
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER
87945BCOVER, OUTER MIRROR, LH
SUPER WHITE 2,040
SILVER ME.,1F7
GRAY ME.,1G3
BLACK MC.,209
RED M.M.,3R3
DK.BLUE MC.,8S6
LT.BLUE M.M.,8S1
BLUE ME.,8T7
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER,SUPER WHITE 2,040
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER,GRAY ME.,1G3
main87945-33010-B2iADE150,NRE150,ZRE152..TERRA..(DCRL,HTWC,HTWVM);NDE150,ZRE151..(6F,6FS)..TERRA..(DCR,DCRL,HTWVM)200809-200910
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER,SILVER ME.,1C0
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),BLACK MC.,209
main87945-33010-J2iNDE150..(6F,6FS)..SOL;ADE150,NRE150,ZRE15#..(6F,6FS)..SOL..(DCRL,HTWC,HTWVM)200809-200910
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),LT.BLUE M.M.,8S1
main87945-33010-J3iNDE150..(6F,6FS)..SOL;ADE150,NRE150,ZRE15#..(6F,6FS)..SOL..(DCRL,HTWC,HTWVM)200809-200910
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER,DK.BLUE MC.,8S6
main87945-33010-J4iADE150,NRE150,ZRE152..TERRA..(DCRL,HTWC,HTWVM);NDE150,ZRE151..(6F,6FS)..TERRA..(DCR,DCRL,HTWVM)200809-200910
DK.BLUE ME.,8T8
87961MIRROR OUTER, LH
main87961-12A90iNDE150..LHD..(6F,6FS);ADE150,NRE150,ZRE15#..LHD..(6F,6FS)..(DCRL,HTWC,HTWVM)200809-200910
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(BLACK),W/HEATER
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(BLACK),W/HEATER
9167180612
main91671-80612
9 parts on this diagram · 2 diagrams in section
