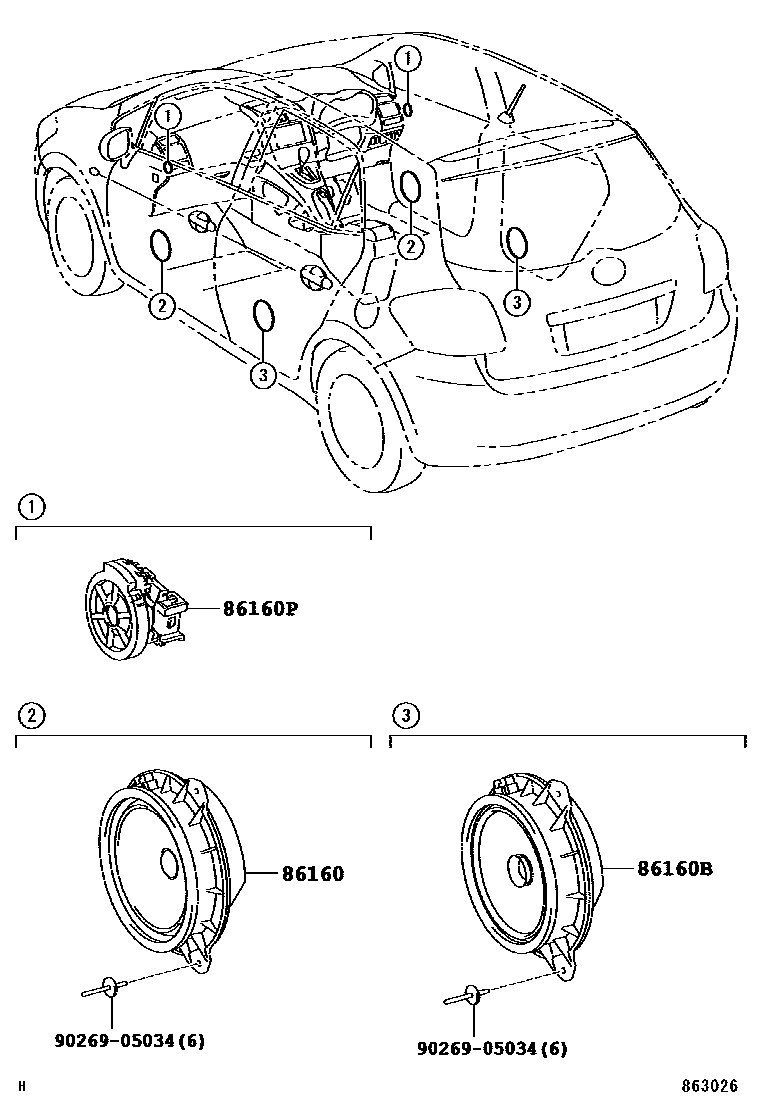

SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-2B580×2iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200809-200910

main86160-52300×2iNDE150,ZRE151201106

86160BSPEAKER ASSY, REAR

main86160-52220×2iADE150..TERRA200610-200901

AUDIO-CD RADIO 6SPEAKER

86160PSPEAKER ASSY, FRONT NO.2

main86160-52170×2iNDE150,ZRE151201112

main86160-68010×2iNDE150,ZRE151,ZZE150200610-200812

9026905034

main90269-05034

4 parts on this diagram · 1 diagram in section
