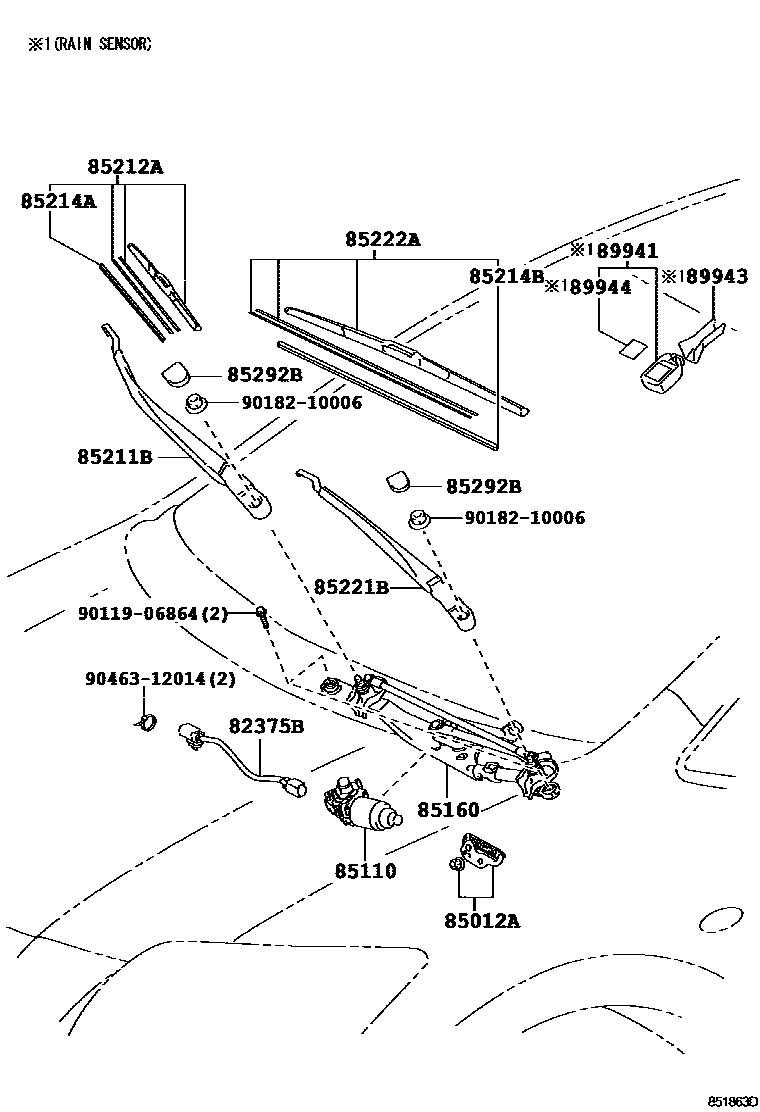

WINDSHIELD WIPER

0001 1 0002 1

82375BWIRE, WIPER MOTOR

main82375-12320iADE150200610-200901

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-50010iADE150..LHD200610-200901

main85012-58030iNDE150200910

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-12A00iNDE150,ZRE151,ZZE150..RHD200610-200812

main85110-12A10iNDE150..LHD..(6F,6FS);ADE150,NRE150,ZRE15#..LHD..(6F,6FS)..(DCRL,HTWC,HTWVM)200809-200910

85160LINK ASSY, WINDSHIELD WIPER

main85150-12A10iNDE150,ZRE151,ZZE150..RHD200610-200812

main85150-12A20iNDE150,ZRE151,ZZE150..LHD200610-200812

85211BARM, FRONT WIPER, RH

main85211-12500iADE150,NDE150,ZRE151,ZZE150..RHD200610-200706

main85211-12501iNDE150..RHD..(6F,6FS);ADE150,NRE150,ZRE15#..RHD..(6F,6FS)..(DCRL,HTWC,HTWVM)200809-200910

main85211-12510iADE150,NDE150,ZRE151,ZZE150..LHD200610-200710

main85211-12511iZRE151..TERRA200910

85212ABLADE, FR WIPER, RH

main85212-12450iNDE150,ZRE151,ZZE150..RHD200707-200812

main85212-28170iADE150..LHD200711-200901

85214ARUBBER, WIPER, RH

main85214-28090iZRE151..SOL200910-201003

main85214-68020iNDE150..RHD..(6F,6FS);ADE150,NRE150,ZRE15#..RHD..(6F,6FS)..(DCRL,HTWC,HTWVM)200809-200910

sub85214-52110

85214BRUBBER, WIPER, LH

main85214-28090iNDE150,ZRE151,ZZE150..RHD200610-200812

main85214-68020iZRE151..TERRA200910

sub85214-52110

85221BARM, FRONT WIPER, LH

main85221-12440iADE150,NDE150,ZRE151,ZZE150..RHD200610-200706

main85221-12441iADE150..RHD200707-200901

main85221-12450iADE150,NDE150,ZRE151,ZZE150..LHD200610-200710

main85221-12451iADE150..LHD200711-200901

85222ABLADE, FR WIPER, LH

main85222-12840iADE150..LHD200711-200901

main85222-28160iNDE150..RHD..(6F,6FS);ADE150,NRE150,ZRE15#..RHD..(6F,6FS)..(DCRL,HTWC,HTWVM)200809-200910

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2iNDE150,ZRE151,ZZE150200610-200812

89941SENSOR, RAIN

main89941-42010iNDE150,NRE150,ZRE15#..RHD..(6F,6FS)..SOL200809-200901

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

89943COVER, RAIN SENSOR

main89943-28010iNDE150,ZRE151,ZZE150..SOL200610-200812

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

89944TAPE, RAIN SENSOR

main89944-42010iNDE150,ZRE151,ZZE150..SOL200610-200812

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

9011906864

main90119-06864

9018210006

main90182-10006

9046312014

main90463-12014

17 parts on this diagram · 2 diagrams in section
