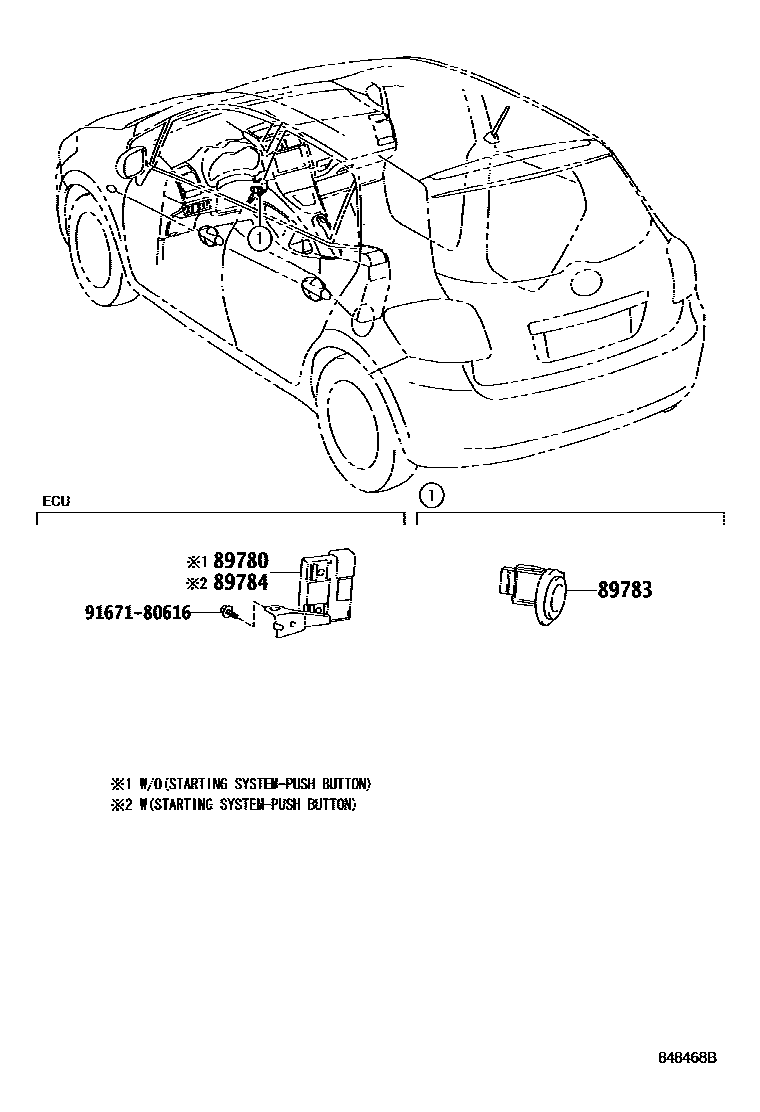

ANTI-THEFT DEVICE

0001 1 0002 1

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-12180iADE150200610-200910

sub89780-12220

main89780-12260iNDE150,ZRE151200910

sub89780-12270

89783AMPLIFIER, TRANSPONDER KEY

main89783-35040iNDE150,ZRE151200910-201106

sub89783-35041

main89783-35041iNDE150,ZRE151201107

sub89783-35042

main89783-42020iADE150,NDE150,ZRE151,ZZE150200610-200802

sub89783-42040

main89783-42040iADE150200803-200910

sub89783-42041

89784COMPUTER, IMMOBILIZER CODE

main89784-12030

9167180616

main91671-80616

4 parts on this diagram · 2 diagrams in section
