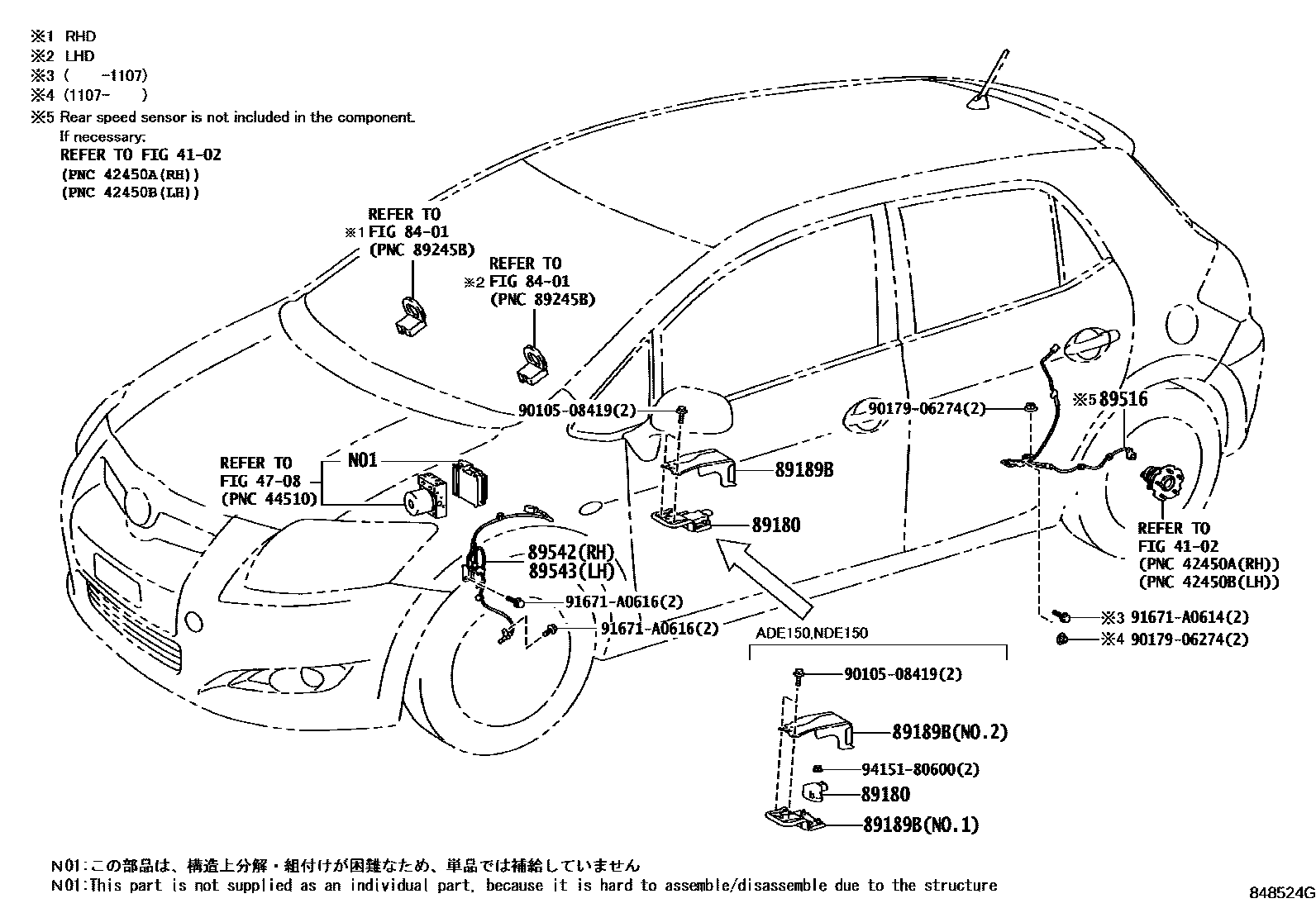

ABS & VSC

4102

4708

8401

89180SENSOR ASSY, YAWRATE

main89183-12030iNDE150201012

89189BBRACKET, YAWRATE SENSOR

main89189-12081iNDE150201012

NO.1

main89189-12091iNDE150201012

NO.2

89516WIRE, SKID CONTROL SENSOR

main89516-12051iADE150,NDE150,ZRE151,ZZE150200610-201107

RH

sub89516-12070

sub90179-06178

main89516-12061iADE150,NDE150,ZRE151,ZZE150200610-201107

LH

sub89516-12080

sub90179-06178

main89516-12070iNDE150,ZRE151201107-201208

RH

main89516-12080iNDE150,ZRE151201107-201208

LH

main89516-12180iADE150200611-200909

RH

sub89516-12051

main89516-12190iNDE150,ZRE151,ZZE150200611-200909

LH

sub89516-12061

89542SENSOR, SPEED, FRONT RH

main89542-12080iNRE150,ZRE15#..6F,6FS200610-201208

main89542-12090iNDE150;ADE150..DCRL200610-201208

89543SENSOR, SPEED, FRONT LH

main89543-12080iZRE151,ZZE150200610-201208

main89543-12090iADE150;NDE150..5F,5FS200610-201208

9010508419

main90105-08419

9017906274

main90179-06274

91671A0614

main91671-A0614

91671A0616

main91671-A0616

9415180600

main94151-80600

13 parts on this diagram · 1 diagram in section
