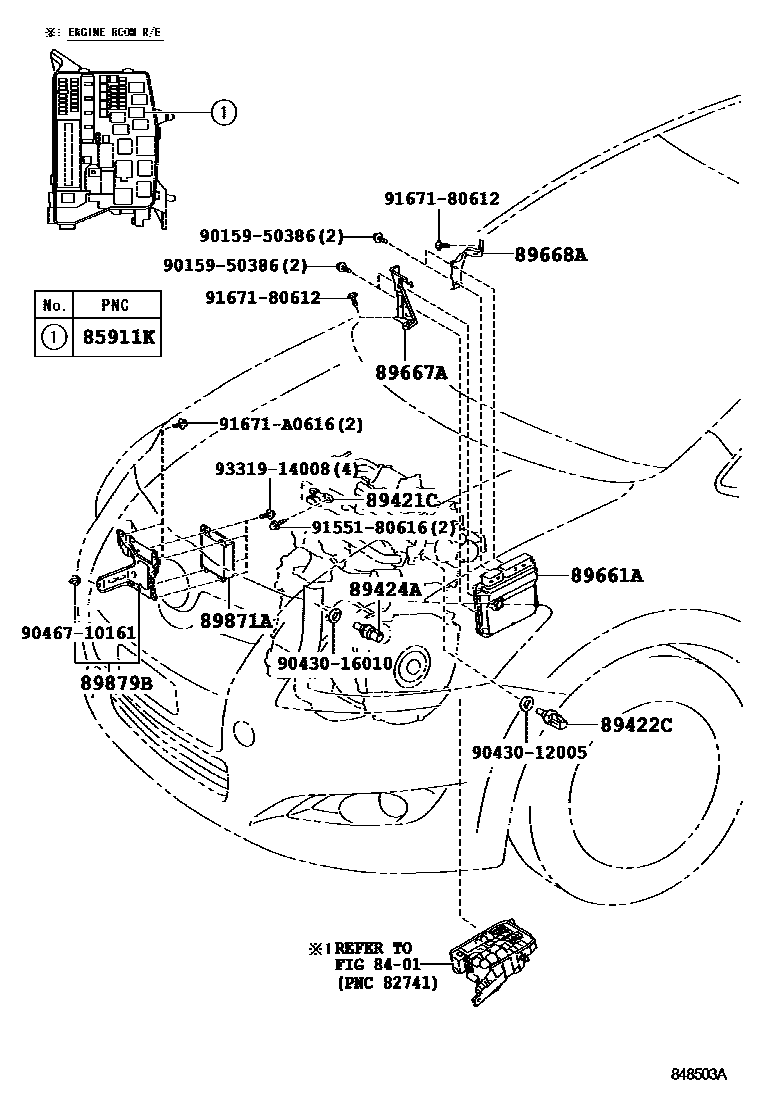

ELECTRONIC CONTROLED DIESEL (ECD)

0001 1 0002 1 0003 1 0004 1

8401

85911KRELAY, HEATER(FOR AIR FUEL RATIO SENSOR)

main90987-02027iADE150200610-200910

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89420-12220iNDE150200610-200812

main89421-20200iADE150200610-200910

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-33030iADE150200610-200910

89424ASENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)

main89424-60010iADE150200610-201208

89661ACOMPUTER, ENGINE CONTROL

main89660-12C40iNDE150..5F200610-200812

P/N LABEL=8966012C40

sub89660-12C41

main89660-12C50iNDE150..5FS200610-200812

P/N LABEL=8966012C50

sub89660-12C51

main89660-12J20iNDE150..6F..DCR200812-200911

P/N LABEL=8966102S80

sub89660-12J21

main89660-12J21iNDE150200912

P/N LABEL=8966102S81

main89660-12J30iNDE150..6FS..DCR200812-200910

P/N LABEL=8966102S90

sub89660-12J31

main89660-12J60iNDE150..6F..DCRL200812-200909

P/N LABEL=8966102T20

sub89660-12J61

main89660-12J70iNDE150..6FS..DCRL200812-200909

P/N LABEL=8966102T30

sub89660-12J71

main89661-12A90iADE150..DCRL200610-200701

P/N LABEL=8966112A90

sub89661-12A91

main89661-12A91iADE150..DCRL200702-200706

P/N LABEL=8966112A91

sub89661-12A92

main89661-12A92iADE150..DCRL200707-200812

P/N LABEL=8966112A92

main89661-12B00iADE150..DCR200610-200701

P/N LABEL=8966112B00

sub89661-12B01

main89661-12B01iADE150..DCR200702-200806

P/N LABEL=8966112B01

sub89661-12B02

main89661-12B02iADE150..DCR200807-200901

P/N LABEL=8966112B02

main89661-12G70iADE150200901-200910

P/N LABEL=8966112G70

sub89661-02S32

89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-12210iADE150200610-200910

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-12160iADE150200610-200910

89871ADRIVER, INJECTOR

main89871-20080iADE150200901-200910

main89871-71010iADE150200610-200901

89879BBRACKET, INJECTOR DRIVER

main89879-12060iADE150200610-200910

9015950386

main90159-50386

9043012005

main90430-12005

9043016010

main90430-16010

9046710161

main90467-10161

9155180616

main91551-80616

9167180612

main91671-80612

91671A0616

main91671-A0616

9331914008

main93319-14008

18 parts on this diagram · 4 diagrams in section
