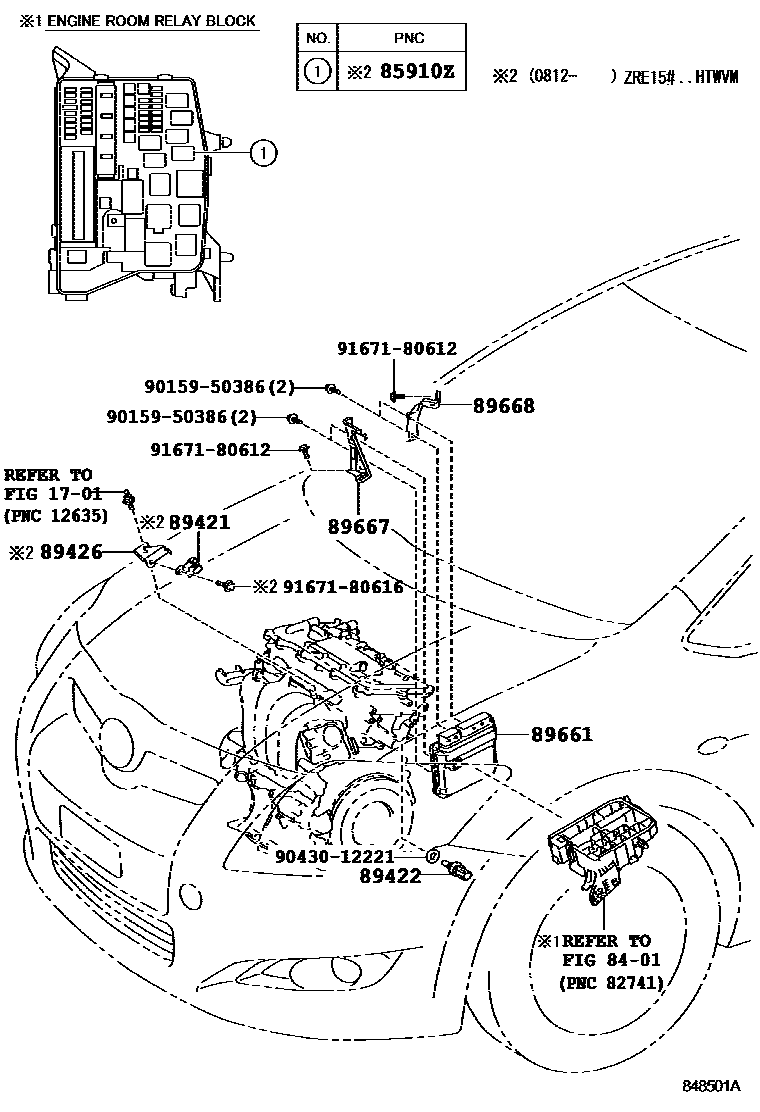

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

1701

8401

85910ZRELAY, INJECTION (FOR EFI)

main90987-02027iZRE15#..HTWVM200812-200910

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030iZRE15#..HTWVM200812-200910

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iZRE151..TERRA200610-201003

main89422-35010iZZE150200610-200812

89426BRACKET, VACUUM SENSOR

main89426-28080iZRE15#..HTWVM200812-200910

89661COMPUTER, ENGINE CONTROL

main89660-12D40iZZE150200610-200812

P/N LABEL=8966012D40

main89661-12B90iZRE151..5F200610-200612

P/N LABEL=8966112B90

main89661-12B91iZRE151..5F200612-200812

P/N LABEL=8966112B91

main89661-12C10iZRE151..5FS200610-200612

P/N LABEL=8966112C10

main89661-12C11iZRE151..5FS200612-200812

P/N LABEL=8966112C11

main89661-12G90iNRE150200809-200910

P/N LABEL=8966112G90

sub89661-12G91

main89661-12J10iZRE151200812-201012

P/N LABEL=8966112J10

sub89661-12J11

main89661-12J20iZRE151201012-201105

P/N LABEL=8966112J20

sub89661-12J21

main89661-12J21iZRE151201106

main89661-12J70iZRE151..6F..HTWVM200812-200908

P/N LABEL=8966112J70

sub89661-12J71

main89661-12J71iZRE151..6F..HTWVM200909-200910

P/N LABEL=8966112J71

main89661-12J90iZRE151..6FS200812-200908

P/N LABEL=8966112J90

sub89661-12J91

main89661-12J91iZRE151..6FS200909-200910

P/N LABEL=8966112J91

main89661-12K10iZRE152200812-200908

P/N LABEL=8966112K10

sub89661-12K11

main89661-12K11iZRE152200909-200910

P/N LABEL=8966112K11

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-12210iNRE150,ZRE15#..6F,6FS200610-200910

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-12120iZRE151200610-200910

9015950386

main90159-50386

9043012221

main90430-12221

9167180612

main91671-80612

9167180616

main91671-80616

13 parts on this diagram · 3 diagrams in section
