METER

83100METER ASSY, COMBINATION

main83800-02L52i200610-200812

main83800-02L92i200610-200812

main83800-02M12i200610-200706

main83800-02M32i200610-200706

main83800-0Z290i200707-200812

main83800-0Z300i200707-200812

main83800-0Z460i200812-200910

main83800-0Z480i200812-200910

main83800-0Z500i200812-200910

main83800-0Z520i200812-200910

main83800-0Z550i200812-200910

main83800-0ZD30i200910

main83800-02L21i200610-200812

SPEEDOMETER-KM/H,W(METER ASSY:ANALOGUE)

main83800-02L41i200610-200901

SPEEDOMETER-KM/H,W(METER ASSY:ANALOGUE)

main83800-02L62i200610-200812

SPEEDOMETER-MILE&KM/H,W(METER ASSY:OPTITRON)

main83800-02M02i200610-200812

SPEEDOMETER-MILE&KM/H,W(*MMT & METER ASSY:OPTITRON)

main83800-02M22i200610-200812

SPEEDOMETER-MILE&KM/H,W(METER ASSY:OPTITRON)

main83800-02M42i200610-200812

SPEEDOMETER-MILE&KM/H,W(*MMT & METER ASSY:OPTITRON)

main83800-0Z340i200809-200910

SPEEDOMETER-KM/H,WITH(METER ASSY:ANALOGUE)

main83800-0Z350i200812-200910

SPEEDOMETER-KM/H,WITH(METER ASSY:ANALOGUE)

main83800-0Z360i200812-200910

SPEEDOMETER-KM/H,WITH(METER ASSY:ANALOGUE)

main83800-0Z380i200812-200910

SPEEDOMETER-KM/H,WITH(METER ASSY:ANALOGUE)

main83800-0Z420supersedes 83800-0Z440i200809-200910

STOP & START SYSTEM PACKAGE

main83800-0Z430i200809-200910

STOP & START SYSTEM PACKAGE&SPEEDOMETER-MILE&KM/H,WITH(METER ASSY:OPTITRON)

main83800-0Z450i200809-200910

SPEEDOMETER-MILE&KM/H,WITH(METER ASSY:OPTITRON)

main83800-0Z470i200812-200910

SPEEDOMETER-MILE&KM/H,WITH(METER ASSY:OPTITRON)

main83800-0Z490i200812-200910

SPEEDOMETER-MILE&KM/H,W(*MMT & METER ASSY:OPTITRON)

main83800-0Z510i200812-200910

SPEEDOMETER-MILE&KM/H,WITH(METER ASSY:OPTITRON)

main83800-0Z530i200812-200910

SPEEDOMETER-MILE&KM/H,W(*MMT & METER ASSY:OPTITRON)

main83800-0ZB50supersedes 83800-0ZC80i200910-201012

SPEEDOMETER-KM/H,W(METER ASSY:ANALOGUE)

main83800-0ZB60i200910-201012

SPEEDOMETER-KM/H,W(METER ASSY:ANALOGUE)

83138GGLASS, COMBINATION METER

main83852-02L51i200910

main83852-02L21i200610-200901

SPEEDOMETER-KM/H,W(METER ASSY:ANALOGUE)

9356855014

main93568-55014

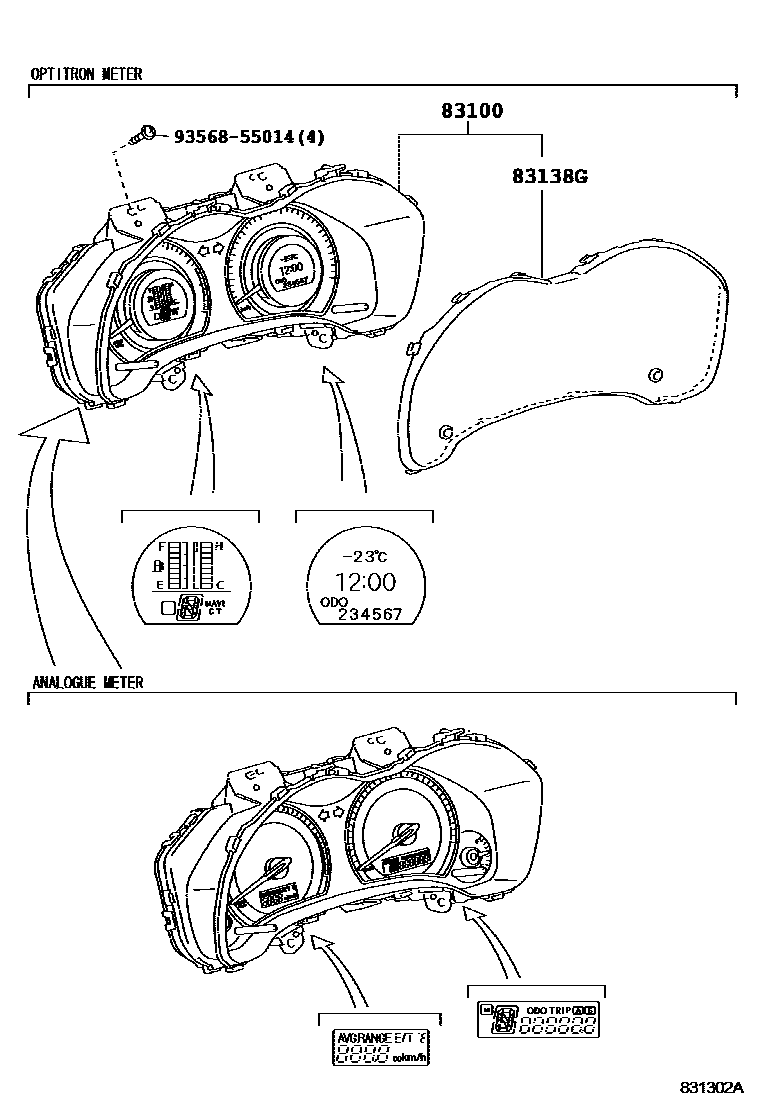

3 parts on this diagram · 1 diagram in section
