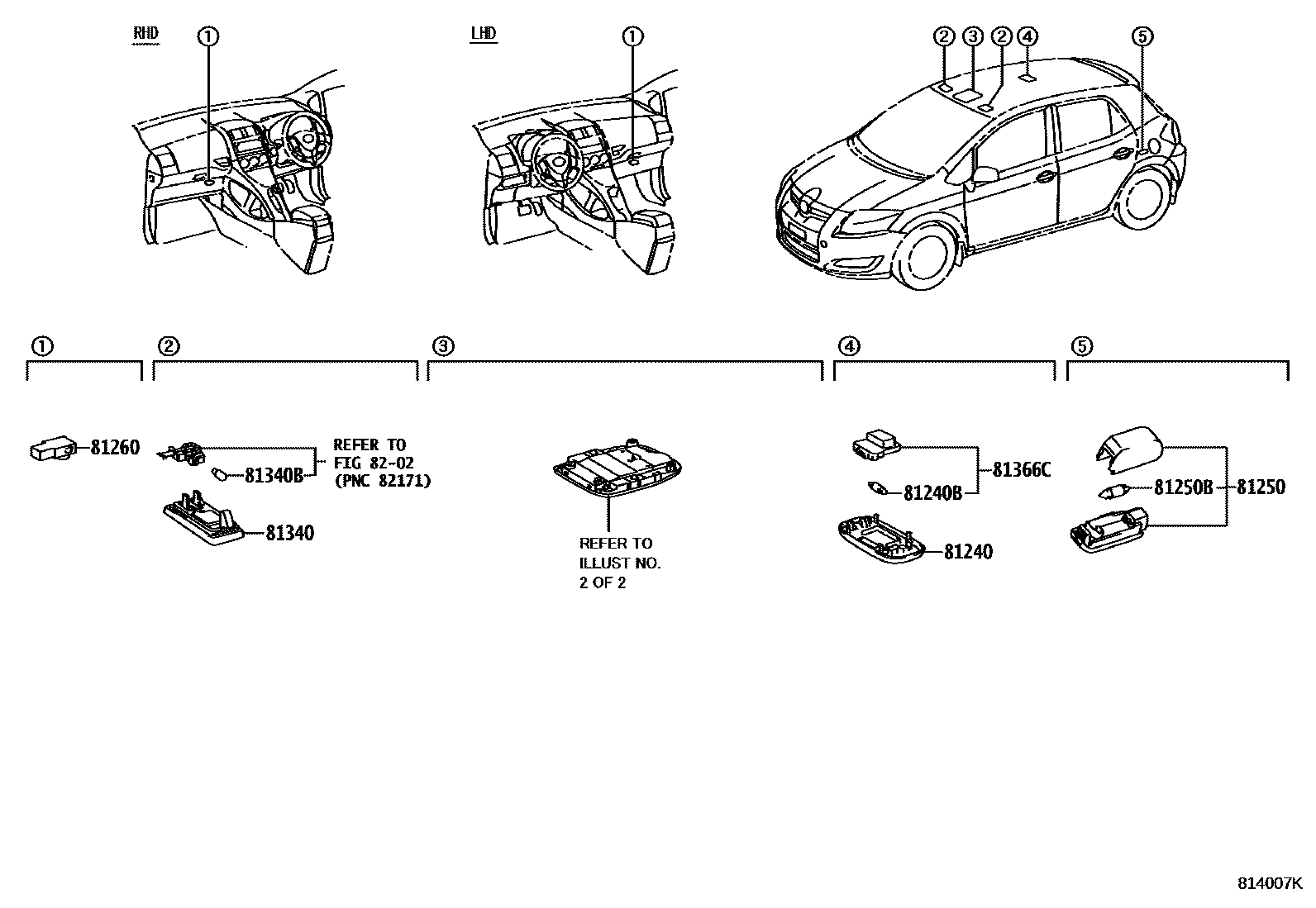

INTERIOR LAMP

0001 1 0002 1

81240LAMP ASSY, ROOM, NO.1

main81240-52040-B1iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200809-200910

LT.GRAY,TRIM1#

main81240-52040-E0iNDE150..RHD..SOL;ADE150,NRE150,ZRE15#..RHD..SOL..(DCRL,HTWC,HTWVM)200812-200910

GREGE,TRIM4#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iNDE150,ZRE151,ZZE150200610-200812

12V 8W

81250LAMP ASSY, ROOM, NO.2

main81240-05041iADE150200610-200901

main81330-05050iNDE150,ZRE151201010

sub81330-02060

81250BBULB, ROOM LAMP, NO.2

main90981-WE002iZRE151..SOL200910-201003

12V 5W

81260LAMP ASSY, GLOVE BOX

main81080-48010iADE150,ZZE150;NDE150,ZRE151..5F,5FS200610-200901

81340LAMP ASSY, VANITY

main81340-30100-B0×2iADE150,ZZE150;NDE150,ZRE151..5F,5FS200610-200901

LT.GRAY

81340BBULB (FOR VANITY LAMP)

main90981-11062×2iADE150,ZZE150;NDE150,ZRE151..5F,5FS200610-200901

12V 8W

81366CBASE, ROOM LAMP SWITCH

main81366-68010iADE150,ZZE150;NDE150,ZRE151..5F,5FS200610-200901

8202

9 parts on this diagram · 2 diagrams in section
