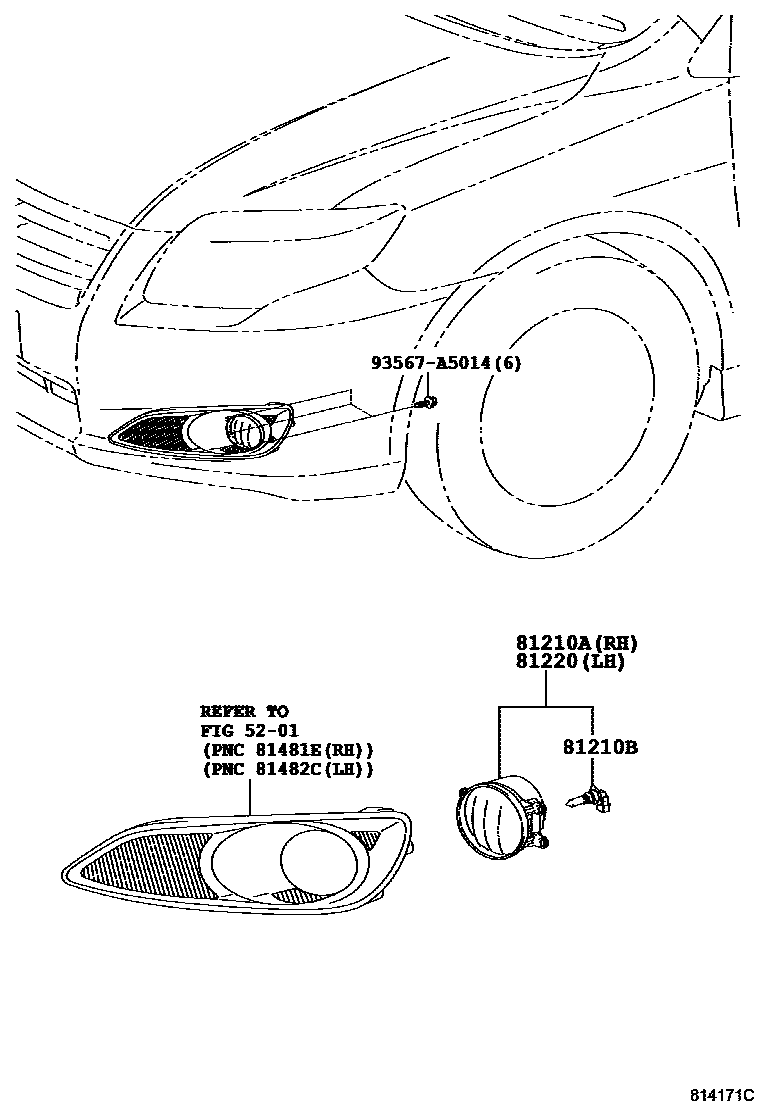

FOG LAMP

0001 1 0002 1

5201

81210ALAMP ASSY, FOG, RH

main81210-0D040iADE150,NDE150,ZRE151,ZZE150..SOL200610-200611

FRONT FOG LAMP-MOP

sub81210-0D041

main81210-0D041iADE150,ZZE150..TERRA;NDE150,ZRE151..(5F,5FS)..TERRA200612-200910

FRONT FOG LAMP-MOP

sub81210-0D042

main81210-0W050iZRE151..SOL200910-201003

81210BBULB, FOG LAMP

main90981-13075iNDE150..(6F,6FS)..SOL;ADE150,NRE150,ZRE15#..(6F,6FS)..SOL..(DCRL,HTWC,HTWVM)200610-200910

12V 55W,HALOGEN,FRONT FOG LAMP-MOP,PHILIPS

main90981-13075iADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL200610-201003

12V 55W,HALOGEN,PHILIPS

main90981-13081iADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL200610-201003

12V 55W,HALOGEN,OSRAM

main90981-13081iNDE150..(6F,6FS)..SOL;ADE150,NRE150,ZRE15#..(6F,6FS)..SOL..(DCRL,HTWC,HTWVM)200610-200910

12V 55W,HALOGEN,FRONT FOG LAMP-MOP,OSRAM

81220LAMP ASSY, FOG, LH

main81220-0D040iADE150,NDE150,ZRE151,ZZE150..SOL200610-200611

FRONT FOG LAMP-MOP

sub81220-0D041

main81220-0D041iADE150,ZZE150..TERRA;NDE150,ZRE151..(5F,5FS)..TERRA200612-200910

FRONT FOG LAMP-MOP

sub81220-0D042

main81220-0W040iZRE151..SOL200910-201003

93567A5014

main93567-A5014

5 parts on this diagram · 2 diagrams in section
