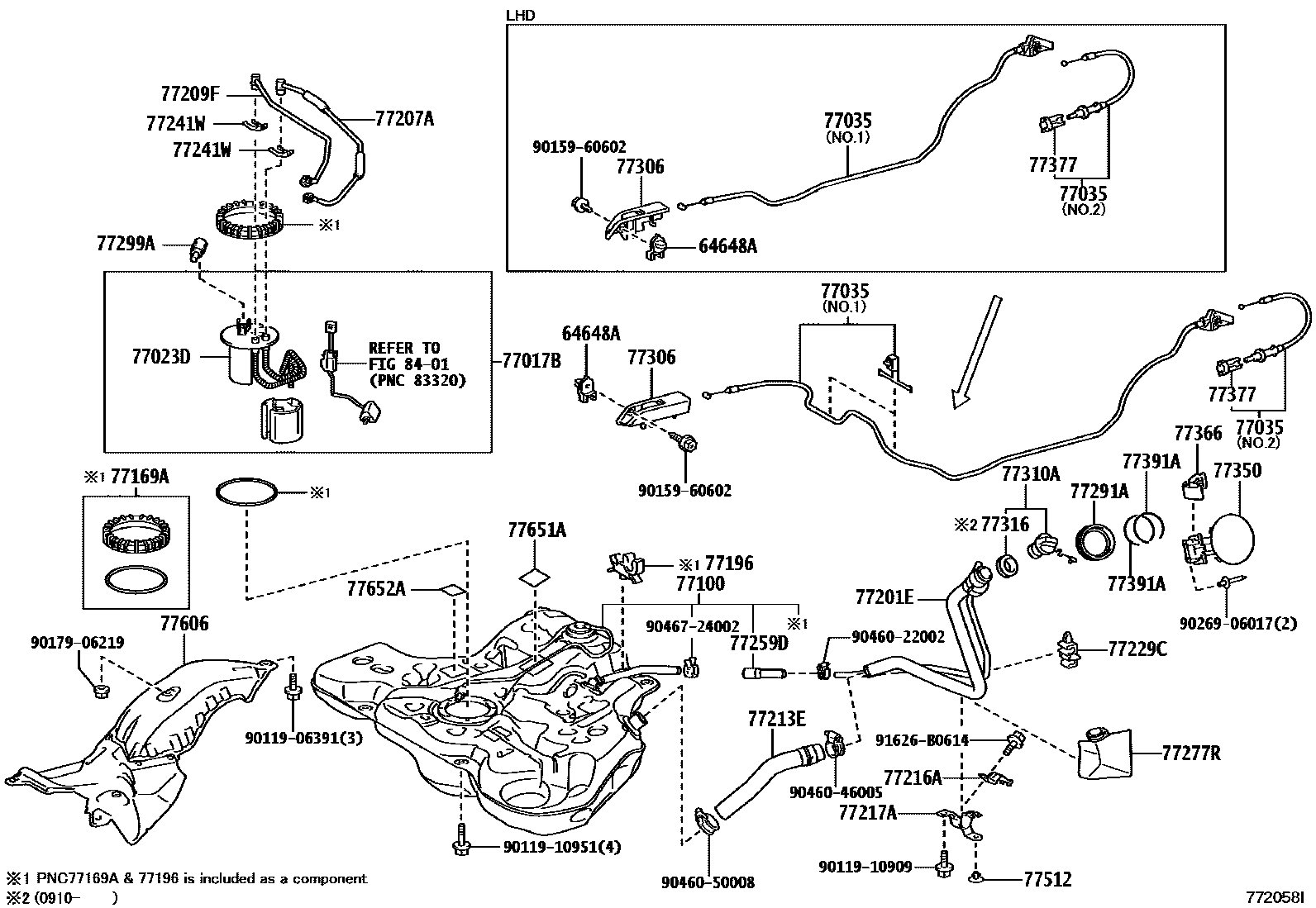

FUEL TANK & TUBE

0001 1FUEL TANK 0003 1FUEL TANK 0005 1FUEL TANK 0006 1FUEL TUBE 0008 1FUEL TUBE

64648AGROMMET, LUGGAGE DOOR LOCK OPENER

main64648-12020iNDE150,ZRE151,ZZE150200610-201003

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77010-12370iNDE150200610-200910

77023DFILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-12060iNDE150200610-200910

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-12430iNDE150,ZRE151,ZZE150..RHD200610-200910

NO.1

main77035-12440iNDE150,ZRE151,ZZE150..LHD200610-201003

NO.1

main77035-12490iNDE150,ZRE151..TERRA200610-201003

NO.2

77100TANK ASSY, FUEL

main77001-12B60iNRE150,ZRE15#..6F,6FS200610-201208

main77001-12B80iNDE150;ADE150..DCRL200610-201208

77169AGASKET, FUEL SUCTION TUBE SET

main77169-52040iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200610-201208

77196CLAMP, EVAPORATION VENT TUBE, NO.1

main77196-12080iNDE150,ZRE151..TERRA200610-201003

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-12640iNRE150,ZRE15#..6F,6FS200610-200910

sub77201-12641

sub77216-12190

sub77217-47080

sub91626-B0614

main77201-12650iNDE150200610-200910

sub77201-12651

sub77216-12190

sub77217-47080

sub91626-B0614

77207ATUBE SUB-ASSY, FUEL RETURN

main77204-12130iNDE150200610-200910

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-12210iNDE150,ZRE151,ZZE150200610-201208

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-12270iADE150200610-201208

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-12190iADE150,ZZE150;NDE150,ZRE151..5F,5FS200610-201208

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-47080iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200610-201208

77229CCLAMP, BREATHER TUBE

main77229-12070iNDE150,ZRE151,ZZE150200610-200910

77241WCLIP, TUBE JOINT

main77241-33011iZRE151201003-201208

main77241-60320iNDE150200610-201002

77259DHOSE, FUEL, NO.1

main77259-76010iADE150,ZZE150;NDE150,ZRE151..5F,5FS200610-201208

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-12180iNDE150,ZRE151,ZZE150200610-200910

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-12190iNDE150,ZRE151,ZZE150200610-201003

77299ACLAMP, FUEL TUBE, NO.5

main77298-42010iNDE150200610-200910

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-52030iNDE150,ZRE151,ZZE150..RHD200610-201010

main77306-52040iNDE150..LHD..(6F,6FS);ADE150,NRE150,ZRE15#..LHD..(6F,6FS)..(DCRL,HTWC,HTWVM)200610-201010

main77306-52050iNDE150201010

main77306-52060iZRE151201010

77310ACAP ASSY, FUEL TANK

main77300-20020iADE150,NDE150200901-200910

main77300-52030iZRE151..SOL200610-201003

77316GASKET, FUEL TANK CAP

main77316-52040iNDE150,ZRE151200910

77350LID ASSY, FUEL FILLER OPENING

main77350-12480iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200610-201003

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-52010iNDE150,ZRE151,ZZE150200610-201003

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12060iNDE150,ZRE151,ZZE150200610-201003

77391ARING, FUEL INLET BOX

main77391-12020iNDE150,ZRE151..TERRA200610-201003

77512BRACKET, FUEL TANK, REAR

main77512-35140iNDE150,ZRE151,ZZE150200610-200910

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-12130iNDE150,ZRE151,ZZE150200610-201003

77651ACUSHION, FUEL TANK, NO.1

main77651-12070iNDE150,ZRE151,ZZE150200610-201003

77652ACUSHION, FUEL TANK, NO.2

main77652-45020iNDE150,ZRE151,ZZE150200610-201003

8401

9011906391

main90119-06391

9011910909

main90119-10909

9011910951

main90119-10951

9015960602

main90159-60602

9017906219

main90179-06219

9026906017

main90269-06017

9046022002

main90460-22002

9046046005

main90460-46005

9046050008

main90460-50008

9046724002

main90467-24002

91626B0614

main91626-B0614

42 parts on this diagram · 5 diagrams in section
