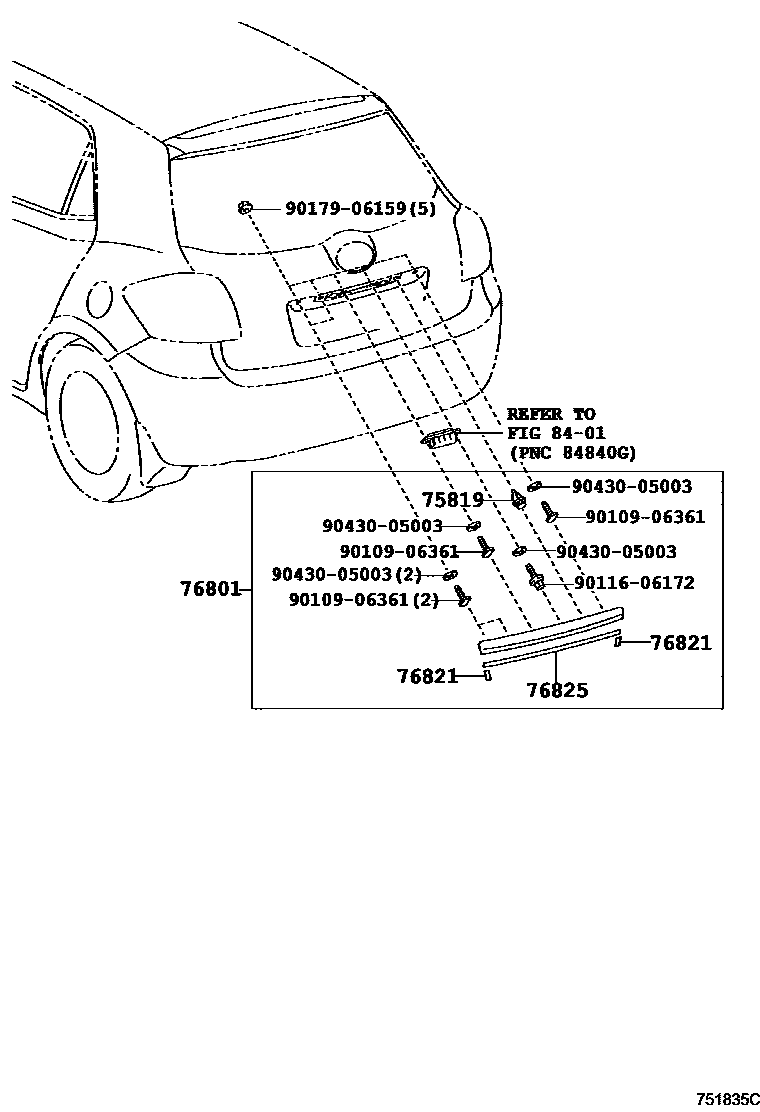

REAR MOULDING

0001 1 0002 1

75819CLIP, LUGGAGE COMPARTMENT DOOR MOULDING

main75819-33010iNDE150,ZRE151,ZZE150¥130200610-200910

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-12800-A0iADE150,ZZE150;NDE150,ZRE151..5F,5FS200610-200910

SUPER WHITE 2,040

sub76801-12800¥10,000

main76801-12800-A1iADE150,ZZE150;NDE150,ZRE151..5F,5FS200610-200901

WHITE PEARL CS.,070

sub76801-12800¥10,000

main76801-12800-B0iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200610-200910

SILVER ME.,1C0

sub76801-12800¥10,000

main76801-12800-B1iADE150,ZZE150;NDE150,ZRE151..5F,5FS200610-200910

GRAY ME.,1G3

sub76801-12800¥10,000

main76801-12800-C0iADE150,ZZE150;NDE150,ZRE151..5F,5FS200610-200910

BLACK MC.,209

sub76801-12800¥10,000

main76801-12800-D1iNDE150..5F;ADE150,ZZE150;NDE150..LHD..5FS200610-200901

RED M.M.,3R3

sub76801-12800¥10,000

main76801-12800-J0iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200610-200910

LT.BLUE M.M.,8S1

sub76801-12800¥10,000

main76801-12800-J1iADE150,ZZE150;NDE150,ZRE151..5F,5FS200610-200910

DK.BLUE MC.,8S6

sub76801-12800¥10,000

main76801-12800-J2iADE150,ZZE150;NDE150,ZRE151..5F,5FS200610-200910

DK.BLUE ME.,8T8

sub76801-12800¥10,000

main76801-12B10-A1iNDE150,ZRE151200910-201112

SUPER WHITE 2,040

sub76801-12B11¥22,000

main76801-12B10-B0iNDE150,ZRE151200910-201112

SILVER ME.,1F7

sub76801-12B11¥22,000

main76801-12B10-B1iNDE150,ZRE151200910-201112

GRAY ME.,1G3

sub76801-12B11¥22,000

main76801-12B10-C0iNDE150,ZRE151200910-201112

BLACK MC.,209

sub76801-12B11¥22,000

main76801-12B10-D0iNDE150,ZRE151200910-201112

RED M.M.,3R3

sub76801-12B11¥22,000

main76801-12B10-J1iNDE150,ZRE151200910-201112

BLUE ME.,8T7

sub76801-12B11¥22,000

main76801-12B10-J2iNDE150,ZRE151200910-201112

LT.BLUE M.M.,8S1

sub76801-12B11¥22,000

main76801-12B10-J3iNDE150,ZRE151200910-201112

DK.BLUE MC.,8S6

sub76801-12B11¥22,000

main76801-12B11-A1iNDE150,ZRE151201201-201208

SUPER WHITE 2,040

sub76801-12B11¥22,000

main76801-12B11-B0iNDE150,ZRE151201201-201208

SILVER ME.,1F7

sub76801-12B11¥22,000

main76801-12B11-B1iNDE150,ZRE151201201-201208

GRAY ME.,1G3

sub76801-12B11¥22,000

main76801-12B11-C0iNDE150,ZRE151201201-201208

BLACK MC.,209

sub76801-12B11¥22,000

main76801-12B11-D0iNDE150,ZRE151201201-201208

RED M.M.,3R3

sub76801-12B11¥22,000

main76801-12B11-J1iNDE150,ZRE151201201-201208

BLUE ME.,8T7

sub76801-12B11¥22,000

main76801-12B11-J2iNDE150,ZRE151201201-201208

LT.BLUE M.M.,8S1

sub76801-12B11¥22,000

main76801-12B11-J3iNDE150,ZRE151201201-201208

DK.BLUE MC.,8S6

sub76801-12B11¥22,000

76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER

main76821-12200iNDE150,ZRE151,ZZE150¥160200610-200910

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-12040iNDE150,ZRE151,ZZE150¥300200610-200910

main76825-12080iNDE150,ZRE151¥590200910

8401

9010906361

main90109-06361¥60

9011606172

main90116-06172¥100

9017906159

main90179-06159¥70

9043005003

main90430-05003¥60

9 parts on this diagram · 2 diagrams in section
