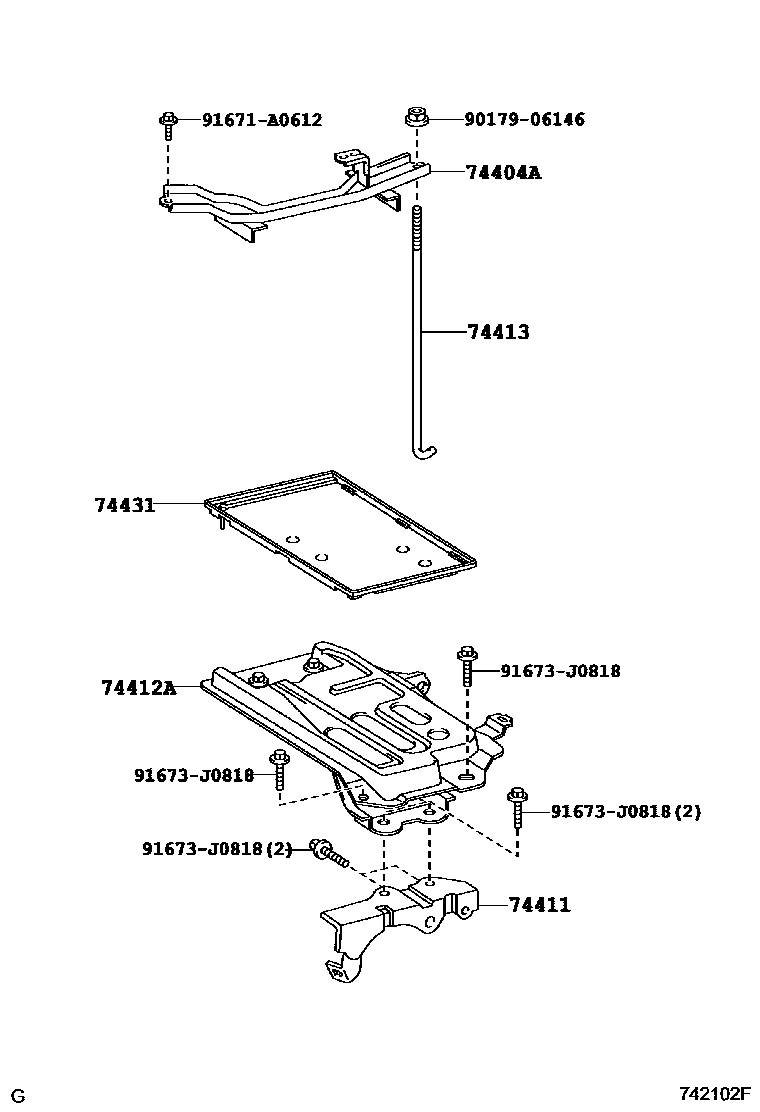

BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-12450iADE150200901-200910

main74404-12460iNDE150200610-200812

main74404-12470supersedes 74404-12480iZRE151,ZZE150..SOL200610-200812

COLD AREA SPEC&FRONT FOG LAMP-MOP

74411CARRIER, BATTERY

main74401-12010iADE150200610-200901

74412ACARRIER, BATTERY, NO.2

main74410-12010iADE150200901-200910

main74410-12020iZRE151,ZZE150200610-200812

main74410-12030iNDE150200610-200812

main74410-12050iNRE150200809-200910

STOP & START SYSTEM PACKAGE

74413BOLT, BATTERY CLAMP

main74451-58011iNDE150,ZRE151,ZZE150200610-200812

74431TRAY, BATTERY

main74431-12070iADE150200610-200901

main74431-12110supersedes 74431-12130iZRE151,ZZE150..SOL200610-200812

SUB COLD AREA SPEC

main74431-12100supersedes 74431-12120iNDE150..LHD200610-200812

COLD AREA SPEC

9017906146

main90179-06146

91671A0612

main91671-A0612

91673J0818

main91673-J0818

8 parts on this diagram · 1 diagram in section
