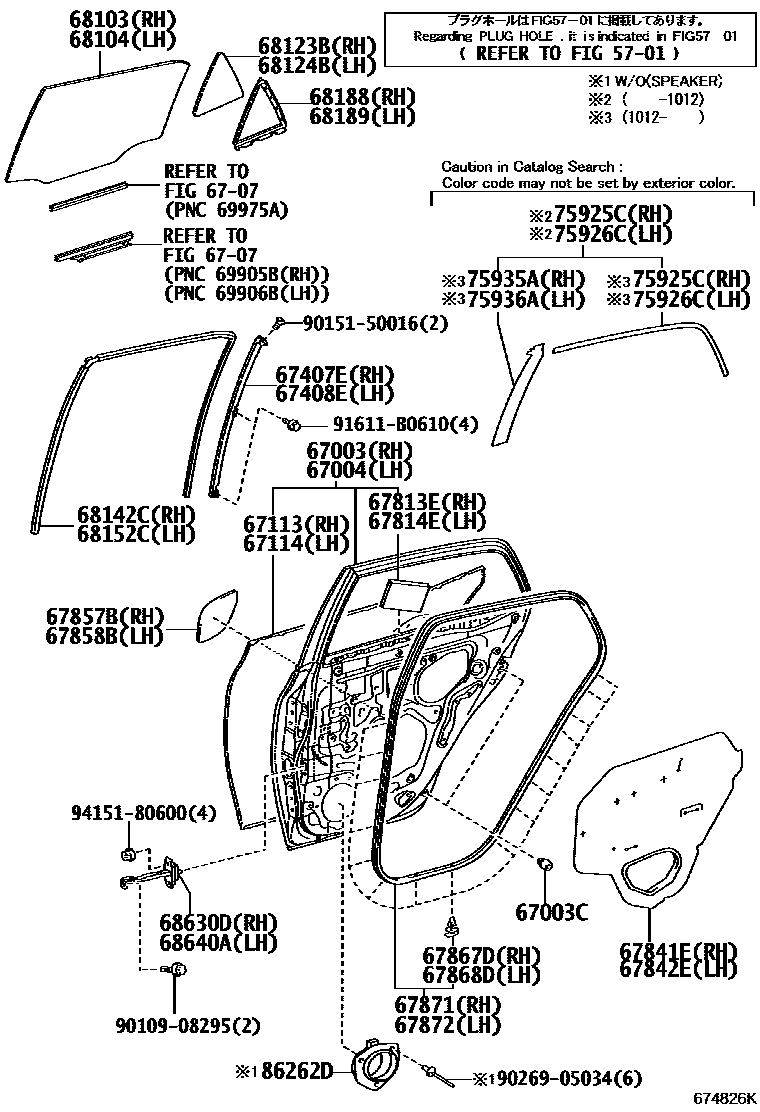

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

5701

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-12A10iNDE150,ZRE151200610-201208

67003CCUSHION, REAR DOOR PANEL

main90541-09124iADE150,NDE150,ZRE151,ZZE150200610-200806

main90541-09143iNDE150,ZRE151,ZZE150200807-201003

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-12A10iADE150,ZZE150;NDE150,ZRE151..5F,5FS200610-201208

6707

67113PANEL, REAR DOOR, OUTER RH

main67113-12290iADE150,ZZE150;NDE150,ZRE151..5F,5FS200610-201208

67114PANEL, REAR DOOR, OUTER LH

main67114-12290iADE150,ZZE150;NDE150,ZRE151..5F,5FS200610-201208

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-12280iNDE150,ZRE151..TERRA200610-201003

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-12280iADE150200610-201003

67813ESHEET, QUARTER PANEL SILENCER, RH

main67817-47010iNDE150,ZRE151,ZZE150200610-201003

67814ESHEET, QUARTER PANEL SILENCER, LH

main67817-47010iNDE150,ZRE151,ZZE150200610-201003

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-12350iNDE150,ZRE151,ZZE150200610-201003

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-12160iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200610-201003

67857BPROTECTOR, REAR DOOR PANEL, RH

67858BPROTECTOR, REAR DOOR PANEL, LH

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150iNDE150,ZRE151,ZZE150200610-200910

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150iNDE150,ZRE151,ZZE150200610-200910

67871WEATHERSTRIP, REAR DOOR, RH

main67871-12520iNDE150,ZRE151,ZZE150200610-201103

sub67871-12521

main67871-12521iNDE150,ZRE151201104

67872WEATHERSTRIP, REAR DOOR, LH

main67872-12520iNDE150,ZRE151,ZZE150200610-201103

sub67872-12521

main67872-12521iNDE150,ZRE151201104

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-12750iADE150,ZZE150;NDE150,ZRE151..5F,5FS200610-201208

*UVCT,T=3.1,GREEN

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-12750iADE150,ZZE150;NDE150,ZRE151..5F,5FS200610-201208

*UVCT,T=3.1,GREEN

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-12850iNDE150,ZRE151,ZZE150200610-201003

*UVCT,T=3.1,GREEN

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-12850iNDE150,ZRE151,ZZE150200610-201003

*UVCT,T=3.1,GREEN

sub68124-12780

68142CRUN, REAR DOOR GLASS, RH

main68142-12270iNDE150,ZRE151,ZZE150200610-201003

68152CRUN, REAR DOOR GLASS, LH

main68152-12180iNDE150,ZRE151,ZZE150200610-201003

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-12320iNDE150,ZRE151,ZZE150200610-201003

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-12320iNDE150,ZRE151,ZZE150200610-201003

68630DCHECK ASSY, REAR DOOR, RH

main68630-12100iNDE150,ZRE151,ZZE150200610-201006

main68630-12101iNDE150,ZRE151201006-201208

68640ACHECK ASSY, REAR DOOR, LH

main68630-12100iNDE150,ZRE151,ZZE150200610-201006

main68630-12101iNDE150,ZRE151201006-201208

75925CTAPE, BLACK OUT, NO.3 RH

main75925-12030iNDE150,ZRE151,ZZE150200610-201012

main75925-12050iNDE150,ZRE151201012

75926CTAPE, BLACK OUT, NO.3 LH

main75926-12030iNDE150,ZRE151,ZZE150200610-201012

main75926-12050iNDE150,ZRE151201012

75935ATAPE, BLACK OUT, NO.6 RH

main75935-12030iNDE150,ZRE151201012

75936ATAPE, BLACK OUT, NO.6 LH

main75936-12030iNDE150,ZRE151201012

86262DCOVER, REAR DOOR SPEAKER

main86262-13010iNDE150,ZRE151,ZZE150..TERRA200610-200910

9010908295

main90109-08295

9015150016

main90151-50016

9026905034

main90269-05034

91611B0610

main91611-B0610

9415180600

main94151-80600

39 parts on this diagram · 2 diagrams in section
