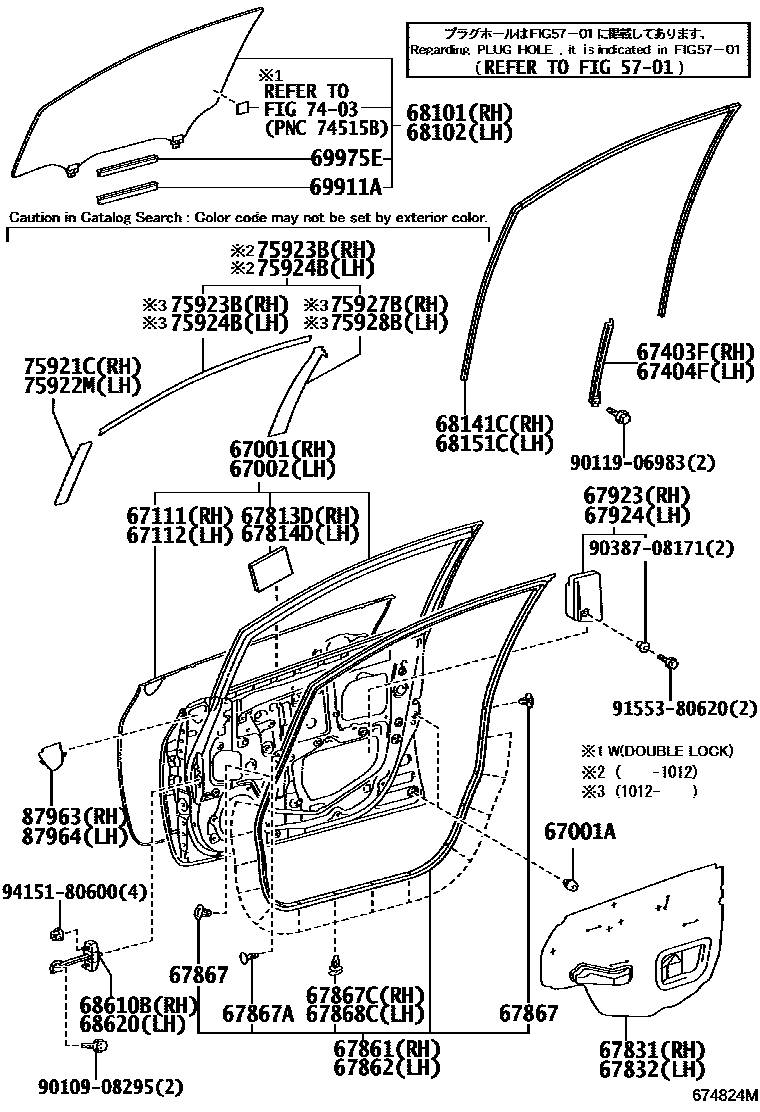

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

5701

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-12A20iNDE150,ZRE151200910-201208

67001ACUSHION, FRONT DOOR PANEL

main90541-09124×4iADE150,NDE150,ZRE151,ZZE150200610-200806

main90541-09143×4iNDE150,ZRE151..TERRA200910

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-12A20iADE150,ZZE150;NDE150,ZRE151..5F,5FS200610-200901

67111PANEL, FRONT DOOR, OUTER RH

main67111-12680iNDE150,ZRE151200910-201208

67112PANEL, FRONT DOOR, OUTER LH

main67112-12680iADE150,ZZE150;NDE150,ZRE151..5F,5FS200610-200901

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-12250iNDE150,ZRE151,ZZE150200610-200812

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-12240iNDE150,ZRE151,ZZE150200610-200812

67813DSHEET, QUARTER PANEL SILENCER, RH

main67817-47010iNDE150,ZRE151,ZZE150200610-200812

67814DSHEET, QUARTER PANEL SILENCER, LH

main67817-47010iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200809-200910

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-12660iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200809-200910

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-12440iNDE150,ZRE151..TERRA200910

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-12A10iNRE150200809-200810

main67861-12A70iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200811-200910

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-12A10iNRE150200809-200810

main67862-12A70iADE150200811-200901

67867CLIP, DOOR WEATHERSTRIP

main90467-04034×4iNDE150,ZRE151,ZZE150200610-200812

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67869-20030×2iADE150200610-200901

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×13iNDE150,ZRE151,ZZE150200610-200812

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×13iNDE150,ZRE151,ZZE150200610-200812

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-12020iADE150,NDE150,ZRE151,ZZE150200610-200807

main67923-12060iNDE150,ZRE151,ZZE150200808-200812

67924CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-12020iADE150,NDE150,ZRE151,ZZE150200610-200807

main67924-12060iNDE150,ZRE151,ZZE150200808-200812

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-12A50iADE150,ZZE150;NDE150,ZRE151..5F,5FS200610-200901

*UVCT,T=3.5,GREEN

main68101-12A51iZRE151201103-201208

*UVCT,T=3.5,GREEN

main68101-12B30iADE150..RHD200901-200910

*UVCT,T=3.5,GREEN,UK SPEC&POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)

sub68101-12B31

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-12A50iZRE151200910-201102

*UVCT,T=3.5,GREEN

main68102-12A51iZRE151201103-201208

*UVCT,T=3.5,GREEN

main68102-12B30iADE150..RHD200610-200901

*UVCT,T=3.5,GREEN,UK SPEC&POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)

sub68102-12B31

68141CRUN, FRONT DOOR GLASS, RH

main68141-12530iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200809-200910

68151CRUN, FRONT DOOR GLASS, LH

main68151-12230iNDE150,ZRE151..TERRA200910

68610BCHECK ASSY, FRONT DOOR, RH

main68610-12180iNDE150,ZRE151,ZZE150200610-200812

main68610-12181iNDE150,ZRE151201006-201208

68620CHECK ASSY, FRONT DOOR, LH

main68610-12180iNDE150,ZRE151,ZZE150200610-200812

main68610-12181iNDE150,ZRE151201006-201208

69911ACHANNEL, FRONT DOOR GLASS, NO.1

main69911-20050×2iNDE150,ZRE151,ZZE150200610-200812

main69955-47010×2iADE150,NDE150,NRE150,ZRE15#200904-200910

69975EFILLER, FRONT DOOR GLASS CHANNEL, NO.1

main69975-16020×2iNDE150,ZRE151,ZZE150200610-200812

main69975-47010×2iADE150,NDE150,NRE150,ZRE15#200904-200910

7403

75921CTAPE, BLACK OUT, NO.1 RH

main75921-12070iNDE150,ZRE151,ZZE150200610-200812

75922MTAPE, BLACK OUT, NO.1 LH

main75922-12070iNDE150,ZRE151,ZZE150200610-200812

75923BTAPE, BLACK OUT, NO.2 RH

main75923-12050iNDE150,ZRE151,ZZE150200610-200812

main75923-12080iNDE150,ZRE151201012

75924BTAPE, BLACK OUT, NO.2 LH

main75924-12050iNDE150,ZRE151,ZZE150200610-200812

main75924-12090iNDE150,ZRE151201012

75927BTAPE, BLACK OUT, NO.4 RH

main75927-12030iNDE150,ZRE151201012

75928BTAPE, BLACK OUT, NO.4 LH

main75928-12030iNDE150,ZRE151201012

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-12010iNDE150,ZRE151,ZZE150200610-200812

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-12010iNDE150,ZRE151200910

9010908295

main90109-08295

9011906983

main90119-06983

9038708171

main90387-08171

9155380620

main91553-80620

9415180600

main94151-80600

42 parts on this diagram · 2 diagrams in section
