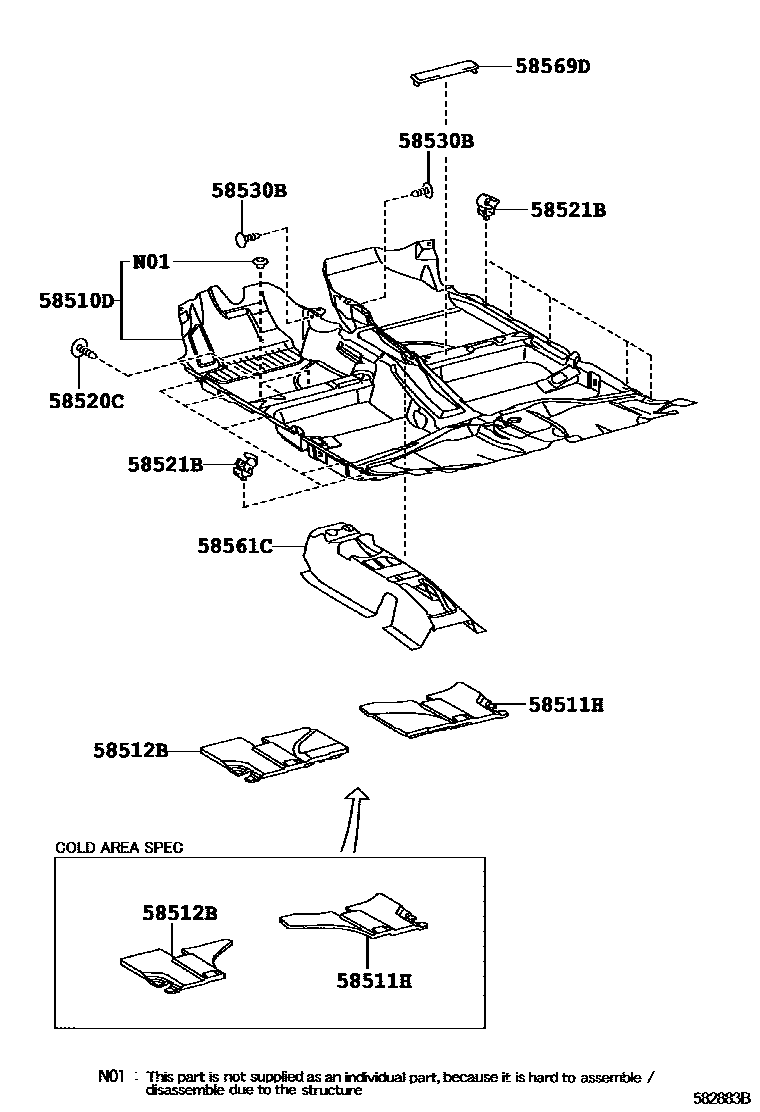

MAT & CARPET

0001 1 0002 1

58510DCARPET ASSY, FLOOR, FRONT

main58510-12B70-B1iZRE151200910-201208

DK.GRAY,TRIM1#

main58510-12B70-E0iNDE150..LHD..(6F,6FS)..SOL;ADE150,NRE150,ZRE15#..LHD..(6F,6FS)..SOL..(DCRL,HTWC,HTWVM)200809-200910

GREGE,TRIM4#

main58510-12B90-B1iNDE150..RHD..(5F,5FS);ADE150,ZRE151,ZZE150..RHD..(DCR,HTWC)200610-200901

DK.GRAY,TRIM1#

main58510-12B90-E0iNDE150..RHD..(6F,6FS)..SOL;ADE150,NRE150,ZRE15#..RHD..(6F,6FS)..SOL..(DCRL,HTWC,HTWVM)200809-200910

GREGE,TRIM4#

main58510-12B80-B1supersedes 58510-12B70-B1iADE150,ZZE150..LHD;NDE150,ZRE151..LHD..(5F,5FS)200610-200901

COLD AREA SPEC,DK.GRAY,TRIM1#

main58510-12B80-E0supersedes 58510-12B70-E0iADE150,ZZE150..LHD..SOL;NDE150,ZRE151..LHD..(5F,5FS)..SOL200610-200901

COLD AREA SPEC,GREGE,TRIM4#

58511HMAT, FLOOR, FRONT RH

main58512-12190iNDE150,ZRE151..TERRA200910

sub58512-12191

main58512-12200iNDE150,ZRE151,ZZE150..LHD200610-200812

COLD AREA SPEC

sub58512-12201

58512BMAT, FLOOR, FRONT LH

main58511-12610iADE150200610-200901

sub58511-12611

main58511-12620iADE150..LHD200610-200901

COLD AREA SPEC

sub58511-12621

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-B7iADE150,ZZE150;NDE150,ZRE151..5F,5FS200610-200901

DK.GRAY

58521BHOOK, FLOOR CARPET

main58521-12140×10iNDE150,ZRE151,ZZE150200610-200812

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-05164-B2×2iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200809-200910

DK.GRAY

58561CSILENCER, FRONT FLOOR, NO.1

main58561-12040iNDE150,ZRE151,ZZE150200610-200812

main58561-12041iADE150,NDE150,NRE150,ZRE15#200902-200910

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-12010-B0iNDE150,ZRE151200910-201208

DK.GRAY

8 parts on this diagram · 2 diagrams in section
