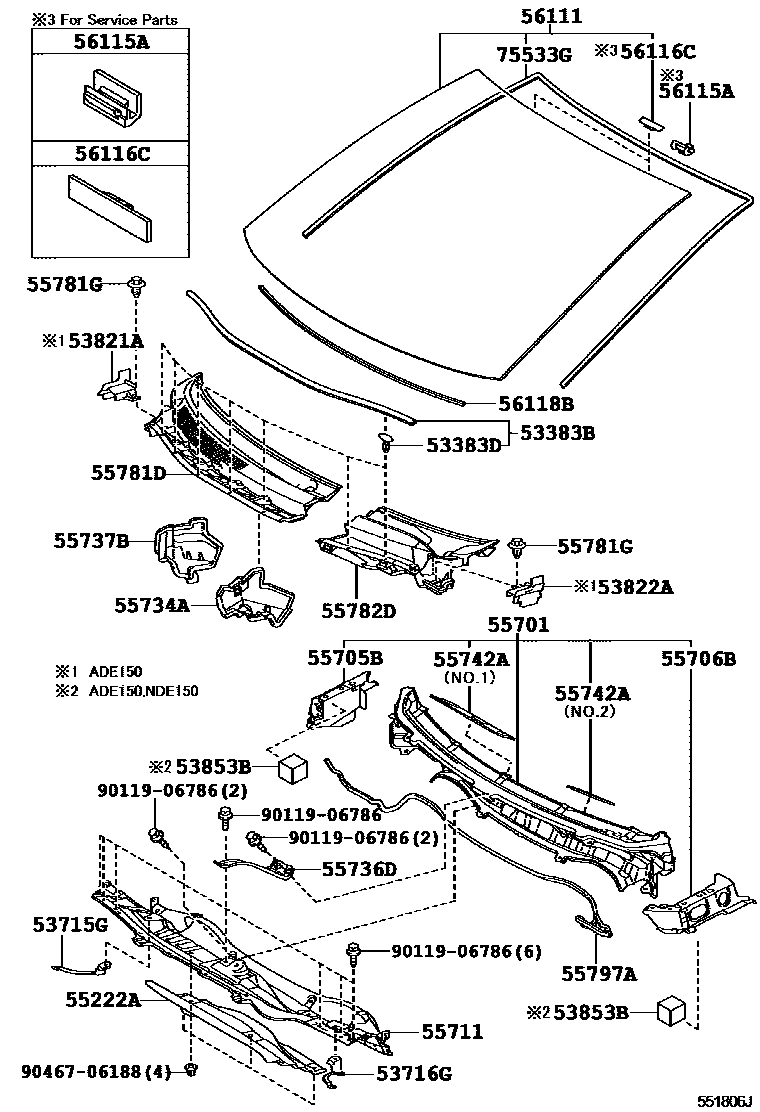

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53383BSEAL, HOOD TO COWL TOP

main53383-12150iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200610-201003

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-12150iNDE150,ZRE151,ZZE150200610-201003

53715GEXTENSION, FRONT FENDER APRON, REAR RH

main53715-12060iADE150,NDE150,ZRE151,ZZE150200610-200702

sub53715-12061

main53715-12061iNDE150,ZRE151,ZZE150200702-201003

53716GEXTENSION, FRONT FENDER APRON, REAR LH

main53716-12070iADE150,NDE150,ZRE151,ZZE150200610-200702

sub53716-12071

main53716-12071iNDE150,ZRE151,ZZE150200702-201003

53821APROTECTOR, FRONT SIDE PANEL, NO.1 RH

main53821-12060iADE150200610-200910

53822APROTECTOR, FRONT SIDE PANEL, NO.1 LH

main53822-12060iADE150200610-200910

53853BPAD, FRONT WHEEL OPENING EXTENSION, NO.1

main53855-12020iNDE150200610-200910

55222AINSULATOR, DASH PANEL, OUTER CENTER

main55224-12010iNDE150,ZRE151,ZZE150200610-201003

55701PANEL SUB-ASSY, COWL

main55700-12A50iZRE151200610-201208

main55700-12A60iNDE150..RHD..(5F,5FS);ADE150,ZRE151,ZZE150..RHD..(DCR,HTWC)200610-201208

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-12070iNDE150,ZRE151,ZZE150200610-201003

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-12080iNDE150,ZRE151,ZZE150200610-201003

55711PANEL, COWL TOP, OUTER

main55701-12A00iZRE151..TERRA200610-201003

main55701-12A10iADE150..RHD200610-200910

55734APLATE, WATER GUARD, RH

main55734-12100iZRE151..TERRA200610-201003

main55734-12110iADE150..RHD200610-200910

55736DREINFORCEMENT, COWL BODY MOUNTING, LH

main55736-12040iNDE150,ZRE151,ZZE150..LHD200610-201003

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-12050iNDE150..LHD..(6F,6FS);ADE150,NRE150,ZRE15#..LHD..(6F,6FS)..(DCRL,HTWC,HTWVM)200610-201003

55742ASHEET, COWL TOP INSULATOR

main55742-12130iADE150200610-201003

NO.1

main55743-12040iADE150200610-201003

NO.2

55781DLOUVER, COWL TOP VENTILATOR, RH

main55708-12290iADE150,NDE150,ZRE151,ZZE150..LHD200610-200807

sub55708-12291

main55708-12291iADE150..LHD200808-201003

main55708-12310iADE150,NDE150,ZRE151,ZZE150..RHD200610-200710

sub55708-12311

main55708-12311iNDE150..RHD..(6F,6FS);ADE150,NRE150,ZRE15#..RHD..(6F,6FS)..(DCRL,HTWC,HTWVM)200711-200910

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-07076-C0iNDE150,ZRE151,ZZE150200610-201208

BLACK

sub90467-07041

sub90467-07076

sub90467-A0016

55782DLOUVER, COWL TOP VENTILATOR, LH

main55709-12080iNDE150,ZRE151,ZZE150..LHD200610-201003

main55709-12090iADE150,NDE150,ZRE151,ZZE150..RHD200610-200807

sub55709-12091

main55709-12091iNDE150200808-200910

55797ASEAL, COWL WATER EXTRACT

main55797-12030iADE150200610-201003

56111GLASS, WINDSHIELD

main56101-12100iNDE150..LHD..(6F,6FS);ADE150,NRE150,ZRE15#..LHD..(6F,6FS)..(DCRL,HTWC,HTWVM)200610-201002

*LAM,T=4.76,GREEN

main56101-12110iNDE150,ZRE151,ZZE150..RHD200610-201003

*LAM,T=4.76,GREEN

main56101-12750iZRE151201003-201208

*LAM,T=4.76,GREEN

main56101-12780iNDE150201003-201208

*LAM,T=4.76,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30120iNDE150,ZRE151,ZZE150200610-201208

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iNDE150,ZRE151200610-200910

56118BDAM, WINDOW GLASS ADHESIVE, NO.2

main56117-12290iNDE150,ZRE151,ZZE150200610-201208

L=1089

sub56117-50140

main56117-12290iNDE150,ZRE151,ZZE150200610-200910

L=1089,INTERMITTENT WIPER-AUTO(RAIN SENSOR)

sub56117-50140

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-12630iNDE150,ZRE151,ZZE150200610-200910

9011906786

main90119-06786

9046706188

main90467-06188

27 parts on this diagram · 2 diagrams in section
