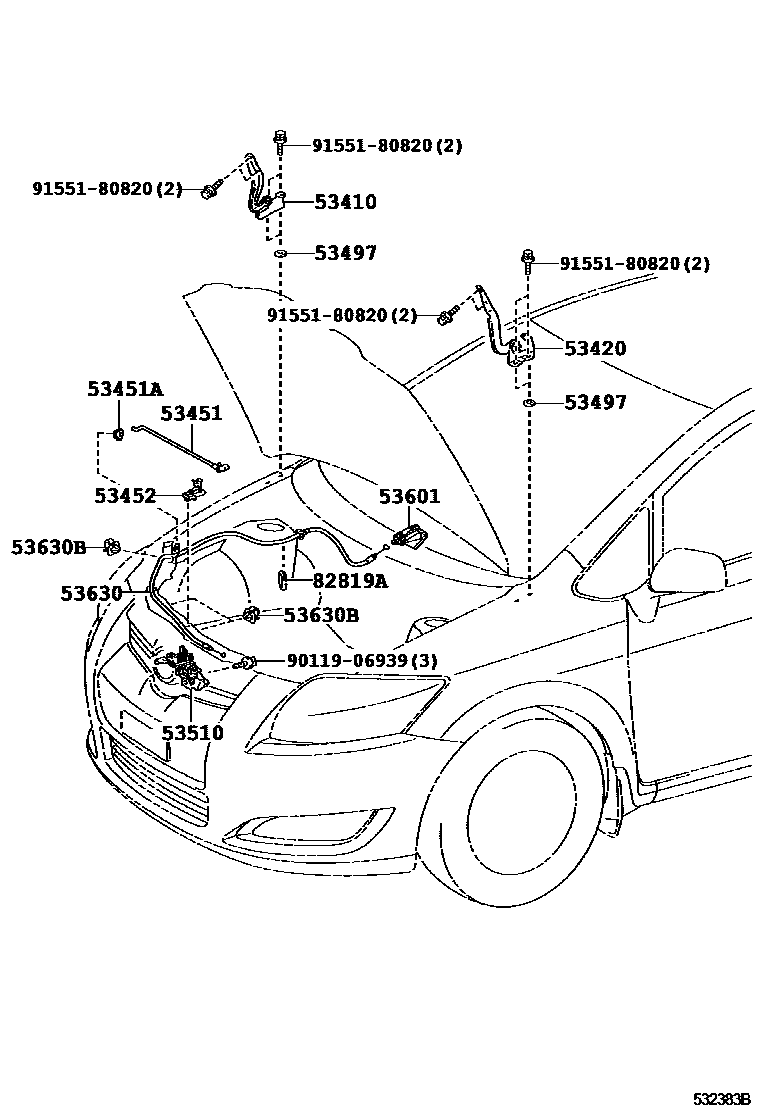

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-12480iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200610-201208

53420HINGE ASSY, HOOD, LH

main53420-12470iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200610-201208

53451ROD, HOOD SUPPORT

main53440-12050iADE150200610-201003

53451AGROMMET(FOR HOOD SUPPORT ROD)

main53454-52010iNDE150,ZRE151,ZZE150200610-201003

53452HOLDER, HOOD STAY

main53452-12050iNDE150,ZRE151,ZZE150200610-201003

53497PAD, HOOD HINGE, NO.1

main53497-42010iADE150200610-201003

T=0.5

53510LOCK ASSY, HOOD

main53510-12810iADE150200610-200910

main53510-12880iNRE150200809-200910

STOP & START SYSTEM PACKAGE

main53510-12880iADE150..RHD200610-200910

UK SPEC

main53510-12B20iNDE150,ZRE151200910

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-B3iNDE150..(6F,6FS)..TERRA;ADE150,NRE150,ZRE15#..(6F,6FS)..TERRA..(DCRL,HTWC,HTWVM)200610-201208

DK.GRAY,TRIM1#

sub53601-52010

main53601-52010-B3iADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL200610-201003

DK.GRAY,TRIM1#,4#

sub53601-52010

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-12530iNDE150,ZRE151,ZZE150..RHD200610-200910

main53630-12540iZRE151200610-200910

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005iNDE150,ZRE151,ZZE150200610-200910

82819AGROMMET, WIRE

main82817-1A810iNDE150,ZRE151,ZZE150200610-200910

9011906939

main90119-06939

9155180820

main91551-80820

13 parts on this diagram · 1 diagram in section
