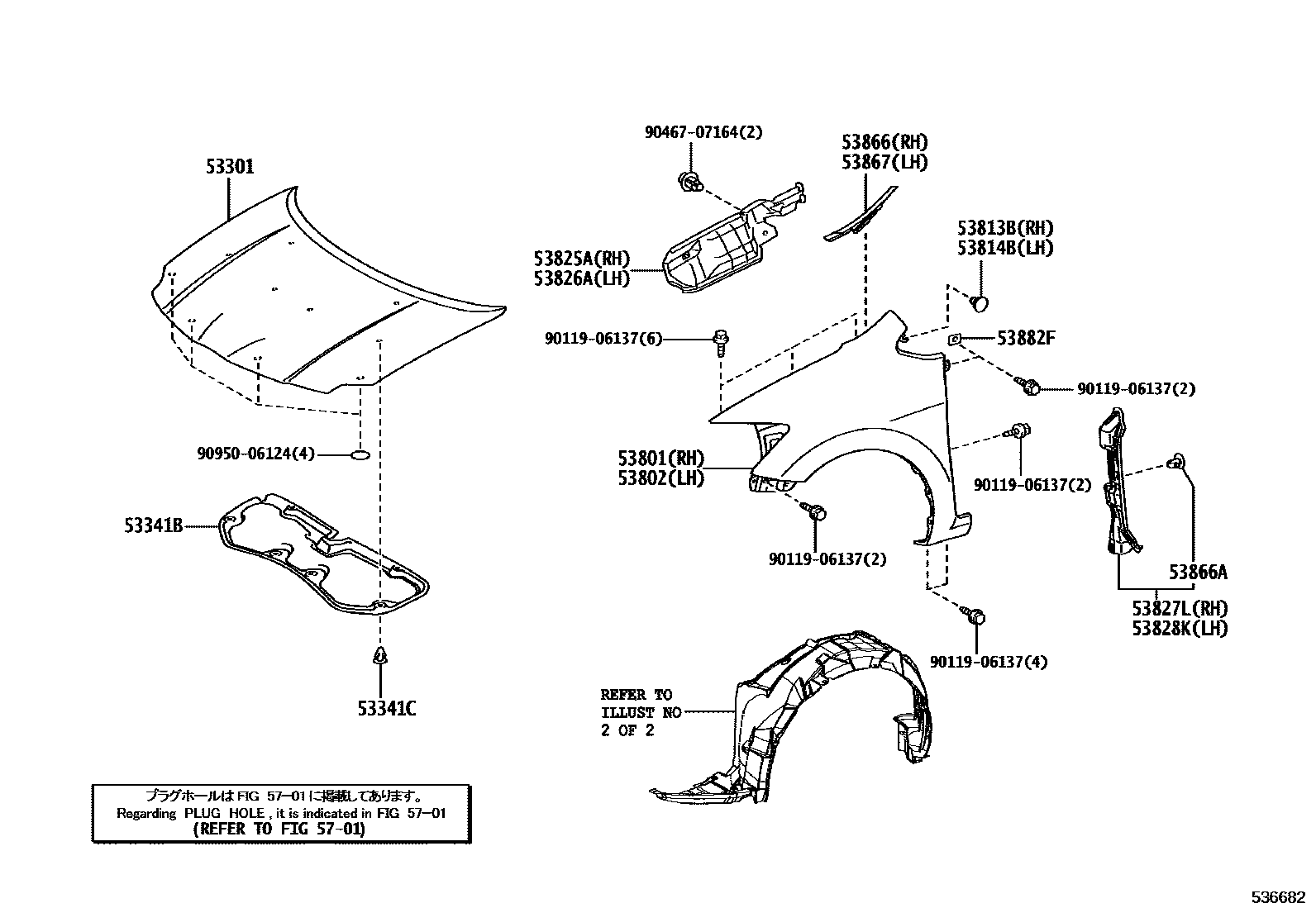

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-12A10iADE150,ZZE150;NDE150,ZRE151..5F,5FS¥34,100200610-200910

main53301-12B00iNDE150,ZRE151¥43,200200910-201208

53341BINSULATOR, HOOD

main53341-12240iNDE150;ADE150,ZRE15#..DCRL,HTWC,HTWVM¥10,800200610-201003

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iNDE150;ADE150,ZRE15#..DCRL,HTWC,HTWVM¥120200812-201003

(J)

main90467-09050iNDE150,ZRE151¥120200610-200901

(L)

main90467-W0003iNDE150;ADE150,ZRE15#..DCRL,HTWC,HTWVM¥130200812-201003

(L)

main90467-W0003iADE150¥130200610-200901

(J)

53801FENDER SUB-ASSY, FRONT RH

main53801-12A00iADE150,ZZE150;NDE150,ZRE151..5F,5FS¥33,400200610-200910

main53801-12A80iNDE150,ZRE151¥33,400200910-201208

53802FENDER SUB-ASSY, FRONT LH

main53802-12A00iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)¥33,400200610-200910

main53802-12A80iNDE150,ZRE151¥33,400200910-201208

53813BEXTENSION, FRONT FENDER, RH

main53813-52020iNDE150,ZRE151¥160200610-200910

53814BEXTENSION, FRONT FENDER, LH

main53813-52020iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)¥160200610-200910

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-12040iNDE150,ZRE151,ZZE150¥3,020200610-201003

main53825-12070iADE150200610-200910

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-12020iNDE150,ZRE151,ZZE150¥3,150200610-201003

main53826-12060iADE150200610-200910

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-12070iNDE150,ZRE151,ZZE150¥2,910200610-201003

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-12070iNDE150,ZRE151,ZZE150¥2,910200610-201003

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-12030iNDE150,ZRE151,ZZE150¥740200610-200910

53866ACLIP(FOR FRONT FENDER TO COWL SIDE SEAL)

main90467-06205-C0iNDE150,ZRE151200807-201208

BLACK

main90467-08136iADE150,NDE150,ZRE151,ZZE150¥90200610-200806

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-12040iNDE150,ZRE151,ZZE150¥740200610-200910

53882FSEAL, FRONT FENDER

main53882-16030iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)¥60200610-200910

5701

9011906137

main90119-06137¥70

9046707164

main90467-07164¥120

9095006124

main90950-06124¥90

19 parts on this diagram · 2 diagrams in section
