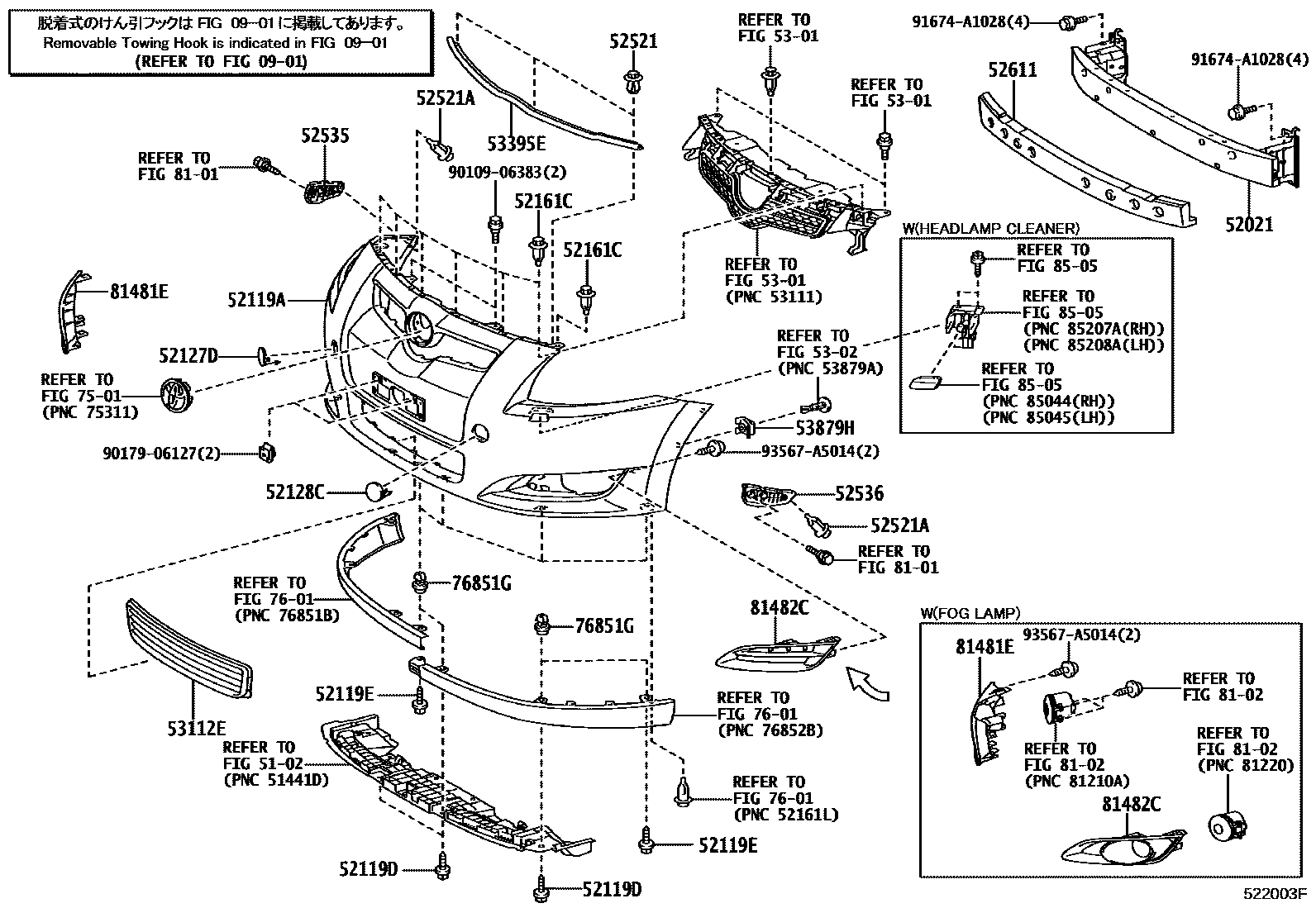

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

0901

5102

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-12230iADE150,ZZE150;NDE150,ZRE151..5F,5FS200610-200901

52119ACOVER, FRONT BUMPER

main52119-12939iNDE150,NRE150,ZRE15#..6F,6FS200809-200901

PAINT REQ.

main52119-12953iADE150,NDE150,NRE150,ZRE15#200901-200910

PAINT REQ.

main52119-12957iNDE150,ZRE151200910-201107

PAINT REQ.

main52119-12972iNDE150,ZRE151201107-201208

PAINT REQ.

main52119-12940iZRE151..TERRA..HTWVM;NRE150,ZRE152..LHD..TERRA200809-200901

PAINT REQ.,RUSSIA SPEC, WITH(EURO 4 REGULATION)&HEADLAMP CLEANER-WITH

main52119-12954iZRE151..TERRA..HTWVM;NRE150,ZRE152..LHD..TERRA200901-200910

PAINT REQ.,RUSSIA SPEC, WITH(EURO 4 REGULATION)&HEADLAMP CLEANER-WITH

main52119-52940iZRE151..TERRA..HTWVM;NRE150,ZRE152..LHD..TERRA200809-200901

PAINT REQ.,RUSSIA SPEC, WITHOUT(EURO 4 REGULATION)&HEADLAMP CLEANER-WITH

52119DSCREW, NO.1

main90159-60488×6iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200809-200910

52119ESCREW, NO.2

main90159-60488iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200809-200910

52127DCOVER, FRONT BUMPER HOLE, RH

main52127-12901iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200809-200910

main52127-12907iNDE150,ZRE151200910-201208

52128CCOVER, FRONT BUMPER HOLE, LH

main52128-12901iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200809-200910

main52128-12906iNDE150,ZRE151200910-201208

52161CPIECE, FRONT BUMPER

main52161-16010×8iNDE150,ZRE151200910-201208

sub52161-0K040

52521RETAINER, FRONT BUMPER, UPPER CENTER

main90467-05063-C0×3iADE150,ZZE150;NDE150,ZRE151..5F,5FS200610-200901

BLACK

52521ACLIP(FOR FRONT BUMPER RETAINER)

main90467-05090-B1×2iNDE150,ZRE151200910-201208

DK.GRAY

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-12100iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200809-200910

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-12080iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200809-200910

52611ABSORBER, FRONT BUMPER ENERGY

main52611-12180iADE150200610-200901

main52611-12260iZRE151..SOL200910-201003

5301

5302

53112EGRILLE, RADIATOR, LOWER NO.1

main53112-12120iADE150200610-200901

NO PAINT REQ.

main53112-12220iNDE150,ZRE151200910

NO PAINT REQ.

53395ESEAL, HOOD TO FRONT END PANEL

main53395-12040iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200809-200910

main53395-12080iNDE150,ZRE151200910

53879HRETAINER, FRONT FENDER LINER

main53879-58010×2iNDE150,ZRE151200910-201208

7501

7601

76851GGROMMET, SCREW, NO.1

main90189-05144×7iADE150,ZZE150..LHD..TERRA;NDE150,ZRE151..LHD..(5F,5FS)..TERRA200610-200901

HEADLAMP CLEANER-WITH&FRONT FOG LAMP-MOP

main90189-06234×7iZRE151..TERRA..HTWVM;NRE150,ZRE152..LHD..TERRA200901-200910

HEADLAMP CLEANER-WITH&FRONT FOG LAMP-MOP

8101

8102

81481ECOVER, FOG LAMP, RH

main81481-12070supersedes 81481-12060iADE150,ZZE150..LHD..TERRA;NDE150,ZRE151..LHD..(5F,5FS)..TERRA200610-200901

HEADLAMP CLEANER-WITH&FRONT FOG LAMP-MOP

main81481-12150iNDE150,ZRE151..TERRA200910

81482CCOVER, FOG LAMP, LH

main81482-12050supersedes 81482-12040iADE150,ZZE150..LHD..TERRA;NDE150,ZRE151..LHD..(5F,5FS)..TERRA200610-200901

HEADLAMP CLEANER-WITH&FRONT FOG LAMP-MOP

main81482-12110iNDE150,ZRE151..TERRA200910

8505

9010906383

main90109-06383

9017906127

main90179-06127

91674A1028

main91674-A1028

93567A5014

main93567-A5014

31 parts on this diagram · 2 diagrams in section
