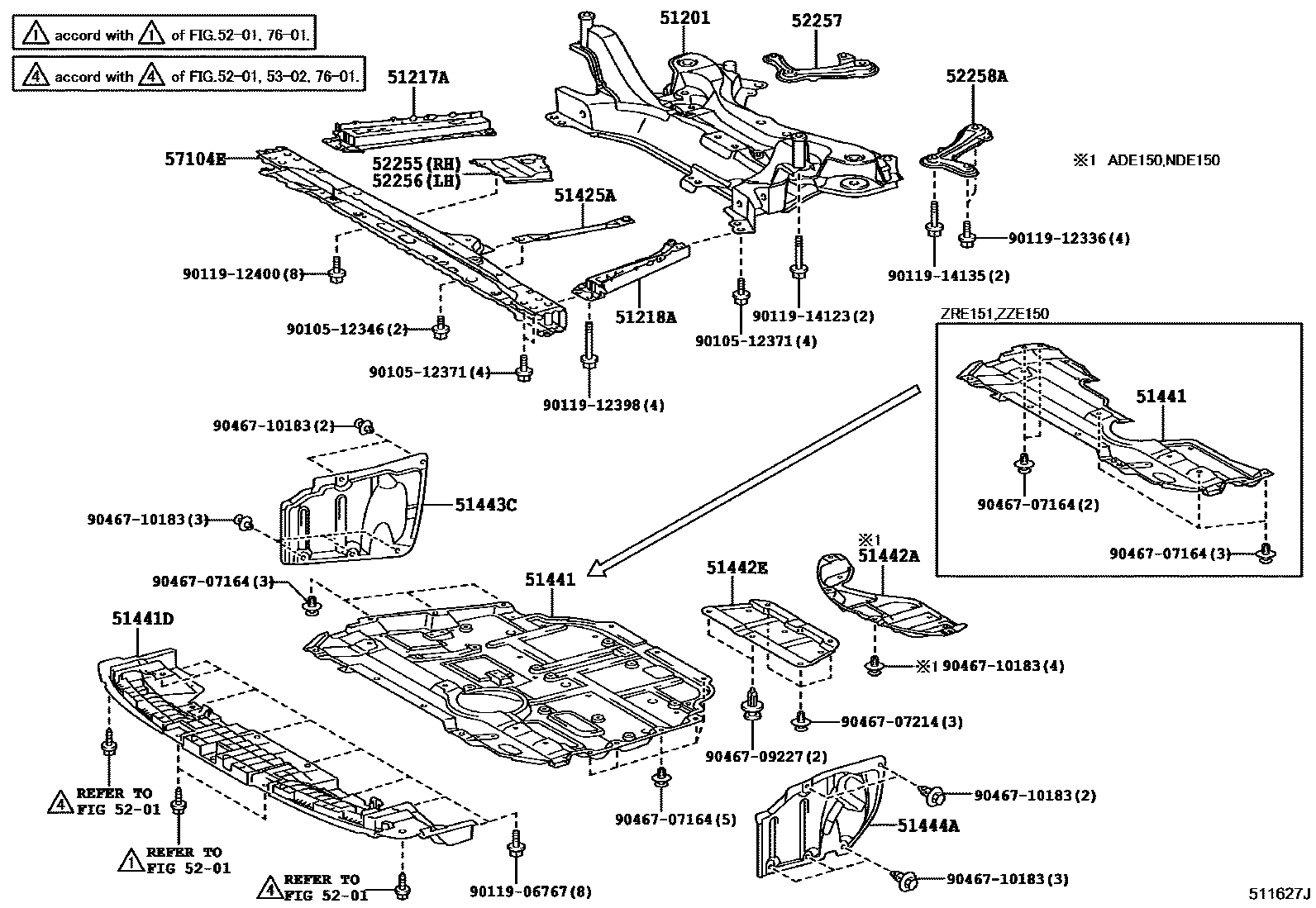

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0003 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-12441iADE150200610-200901

sub51201-12442

51217AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main51107-12010iNDE150,ZRE151,ZZE150200610-200812

51218AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH

main51108-12010iNDE150,ZRE151,ZZE150200610-200812

51425AREINFORCEMENT, ENGINE FRONT MOUNTING BRACKET, LOWER

main51425-12060iZRE151..SOL200910-201003

51441COVER, ENGINE UNDER, NO.1

main51410-12070iADE150200610-200901

main51410-12080iZRE15#200812-200910

main51410-12081iZRE151200910-201012

main51410-12082iZRE151201101

main51410-12090iADE150200901-200910

sub51410-12091

main51441-12221iNDE150200610-200812

main51441-12270iNDE150,NRE150..6F,6FS200809-200910

51441DCOVER, ENGINE UNDER

main52618-12010iADE150,ZZE150;NDE150,ZRE151..5F,5FS200610-200901

51442ACOVER, ENGINE UNDER, FRONT NO.3

main51442-12210iNDE150200610-200812

51442ECOVER, ENGINE UNDER, NO.2

main51442-12270iNDE150,ZRE151,ZZE150200610-200812

51443CCOVER, ENGINE UNDER, REAR RH

main51443-12080iNDE150,ZRE151,ZZE150200610-200812

51444ACOVER, ENGINE UNDER, REAR LH

main51444-12050iNDE150,ZRE151,ZZE150200610-200812

5201

52255BRACE, FRONT SUSPENSION MEMBER, FRONT RH

main52255-12010iADE150,ZZE150;NDE150,ZRE151..5F,5FS200610-200901

52256BRACE, FRONT SUSPENSION MEMBER, FRONT LH

main52256-12010iADE150,ZZE150;NDE150,ZRE151..5F,5FS200610-200901

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-12010iADE150,NDE150,ZRE151,ZZE150200610-200803

main52257-12011iNDE150,ZRE151,ZZE150200804-200812

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-12010iADE150,NDE150,ZRE151,ZZE150200610-200803

main52258-12011iNDE150,ZRE151,ZZE150200804-200812

57104EMEMBER SUB-ASSY, FRONT CROSS

main57104-12270iNDE150,ZRE151,ZZE150200610-200812

9010512346

main90105-12346

9010512371

main90105-12371

9011906767

main90119-06767

9011912336

main90119-12336

9011912398

main90119-12398

9011912400

main90119-12400

9011914123

main90119-14123

9011914135

main90119-14135

9046707164

main90467-07164

9046707214

main90467-07214

9046709227

main90467-09227

9046710183

main90467-10183

28 parts on this diagram · 2 diagrams in section
