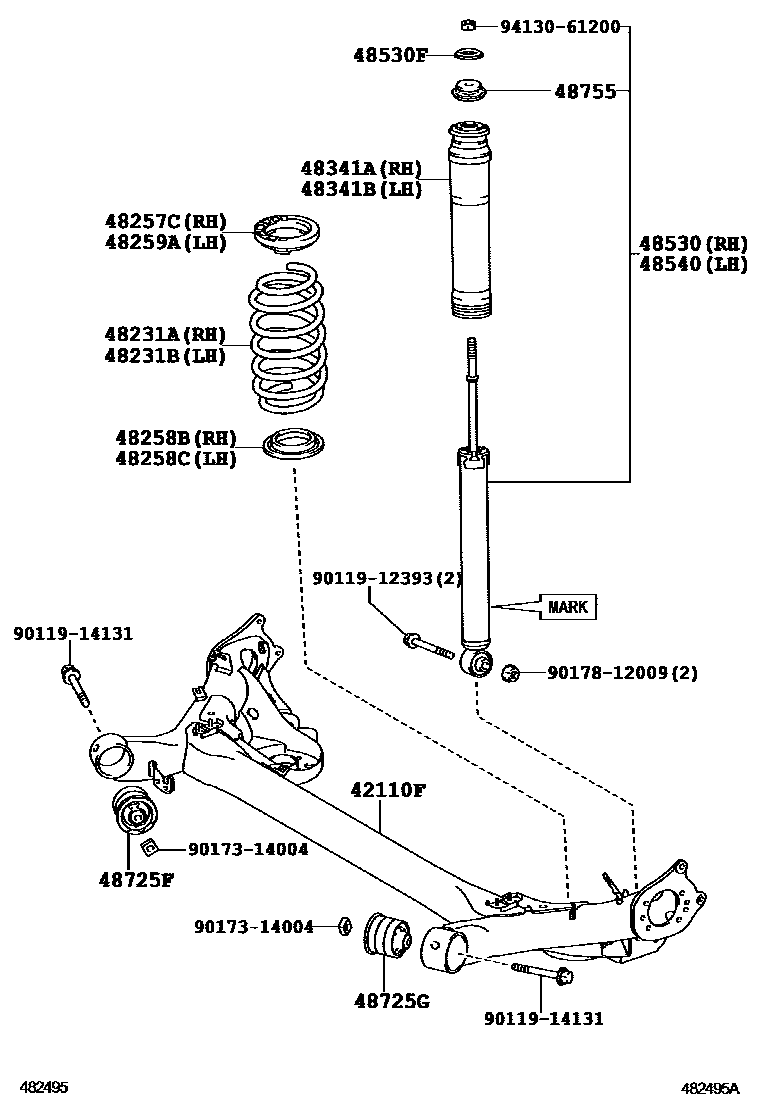

REAR SPRING & SHOCK ABSORBER

42110FBEAM ASSY, REAR AXLE

main42101-12171iADE150,ZZE150;NDE150,ZRE151..5F,5FS200610-200901

48231ASPRING, COIL, REAR RH

main48231-12A50iNDE150,ZRE151,ZZE150200610-200812

main48231-12A60iZRE151200910-201012

ROUGH ROAD AREA SPEC

sub48231-12A61

48231BSPRING, COIL, REAR LH

main48231-12A50iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200809-200910

main48231-12A60iZRE151,ZZE150..LHD200610-200812

ROUGH ROAD AREA SPEC

sub48231-12A61

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-52010iNDE150,ZRE151..TERRA200910

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-52030iNDE150,ZRE151,ZZE150200610-200812

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-52030iNDE150,ZRE151,ZZE150200610-200812

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-52010iNDE150,ZRE151,ZZE150200610-200812

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-12210iADE150,NDE150,ZRE151,ZZE150200610-200704

main48341-12220iNDE150,ZRE151,ZZE150200704-200812

sub48341-12240

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-12210iADE150,NDE150,ZRE151,ZZE150200610-200704

main48341-12220iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200809-200910

sub48341-12240

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-80379iADE150,NDE150,ZRE151,ZZE150200610-200704

MARK 48530-12C40

sub48530-80503

main48530-80444iADE150,NDE150,ZRE151,ZZE150200704-200803

MARK 48530-12C40

main48530-80499iNDE150,ZRE151200910

MARK 48530-12C41

main48530-80382iZRE151,ZZE150..LHD200610-200704

MARK 48530-12C50,ROUGH ROAD AREA SPEC

sub48530-80504

main48530-80447iZRE151,ZZE150..LHD200704-200803

MARK 48530-12C50,ROUGH ROAD AREA SPEC

main48530-80500iNRE150,ZRE15#..LHD..(6F,6FS)200809-200910

MARK 48530-12C51,ROUGH ROAD AREA SPEC

48530FRETAINER, SHOCK ABSORBER CUSHION(FOR REAR)

main90948-02159×2iNDE150,ZRE151,ZZE150200610-200812

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-80379iADE150,NDE150,ZRE151,ZZE150200610-200704

MARK 48530-12C40

sub48530-80503

main48530-80444iADE150,NDE150,ZRE151,ZZE150200704-200803

MARK 48530-12C40

main48530-80499iNDE150,ZRE151200910

MARK 48530-12C41

main48530-80382iZRE151,ZZE150..LHD200610-200704

MARK 48530-12C50,ROUGH ROAD AREA SPEC

sub48530-80504

main48530-80447iZRE151,ZZE150..LHD200704-200803

MARK 48530-12C50,ROUGH ROAD AREA SPEC

main48530-80500iZRE151200910-201012

MARK 48530-12C51,ROUGH ROAD AREA SPEC

48725FBUSH, REAR AXLE CARRIER, RH

main48725-12590iNDE150,ZRE151,ZZE150200610-200812

48725GBUSH, REAR AXLE CARRIER, LH

main48725-12590iADE150200610-200901

48755SUPPORT, REAR SUSPENSION

main48755-12100×2iNDE150,ZRE151,ZZE150200704-200812

main48755-12110×2iADE150,NDE150,ZRE151,ZZE150200610-200704

9011912393

main90119-12393

9011914131

main90119-14131

9017314004

main90173-14004

9017812009

main90178-12009

9413061200

main94130-61200

20 parts on this diagram · 1 diagram in section
