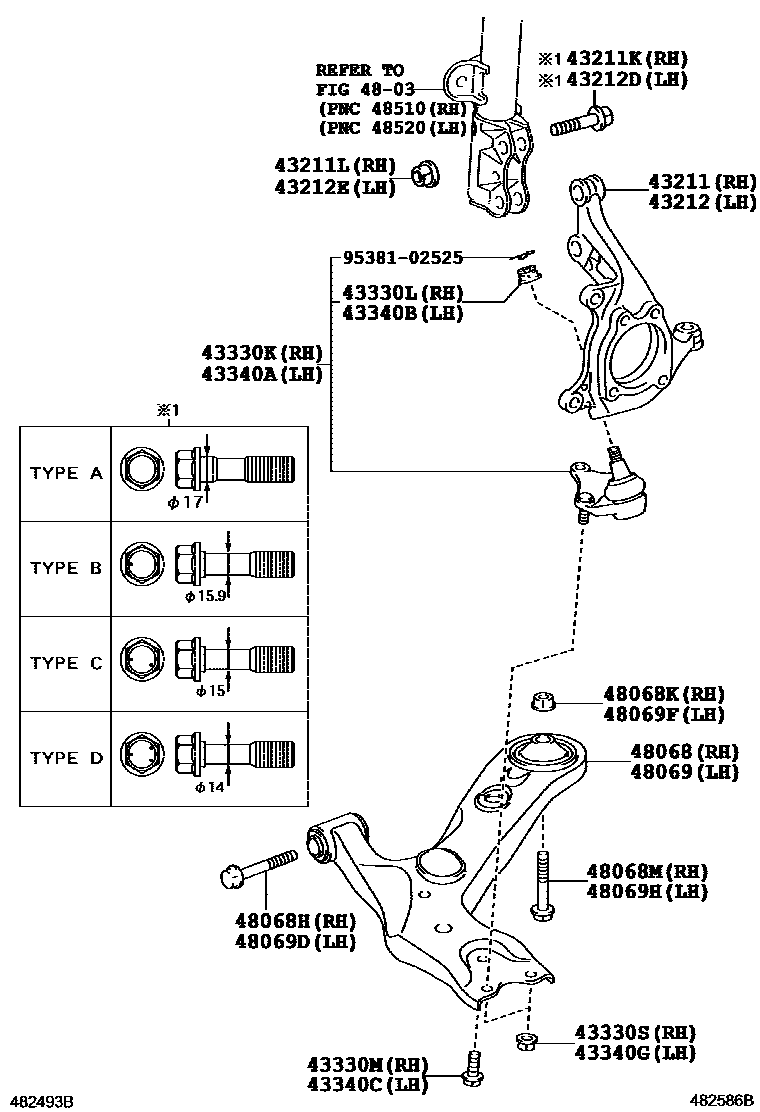

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-12460iNDE150,ZRE151200610-201208

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17008iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200610-201208

OD=17,TYPE A:REFER ILLUST.

main90105-17009iNDE150,ZRE151200610-201208

OD=15.9,TYPE B:REFER ILLUST.

main90105-17010iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200610-201208

OD=15,TYPE C:REFER ILLUST.

main90105-17011iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200610-201208

OD=14,TYPE D:REFER ILLUST.

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-17002iNDE150,ZRE151200610-201208

43212KNUCKLE, STEERING, LH

main43212-12410iADE150200610-201208

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17008iADE150,ZZE150;NDE150,ZRE151..5F,5FS200610-201208

OD=17,TYPE A:REFER ILLUST.

main90105-17009iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200610-201208

OD=15.9,TYPE B:REFER ILLUST.

main90105-17010iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200610-201208

OD=15,TYPE C:REFER ILLUST.

main90105-17011iADE150,ZZE150;NDE150,ZRE151..5F,5FS200610-201208

OD=14,TYPE D:REFER ILLUST.

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-17002iADE150,ZZE150;NDE150,ZRE151..5F,5FS200610-201208

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-19245iADE150,ZZE150;NDE150,ZRE151..5F,5FS200610-201208

sub43330-19275

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003iNDE150,ZRE151,ZZE150200610-201003

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main90105-12346iNDE150,ZRE151,ZZE150200610-201003

43330SNUT (FOR FRONT LOWER BALL JOINT RH)

main90178-12019iNDE150,ZRE151,ZZE150200610-201003

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-19245iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200610-201003

sub43330-19275

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003iNDE150,ZRE151,ZZE150200610-201003

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main90105-12346iNDE150,ZRE151,ZZE150200610-201003

43340GNUT (FOR FRONT LOWER BALL JOINT LH)

main90178-12019iNDE150,ZRE151,ZZE150200610-201003

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-12300iNDE150,ZRE151,ZZE150200610-201003

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main91554-L1690iNDE150,ZRE151,ZZE150200610-201003

48068KNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90178-16006iNDE150,ZRE151,ZZE150200610-201003

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main91554-L1690iNDE150,ZRE151,ZZE150200610-201003

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-12300iNDE150,ZRE151,ZZE150200610-201003

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main91554-L1690iNDE150,ZRE151,ZZE150200610-201003

48069FNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90178-16006iNDE150,ZRE151,ZZE150200610-201003

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main91554-L1690iNDE150,ZRE151,ZZE150200610-201003

9538102525

main95381-02525

24 parts on this diagram · 1 diagram in section
