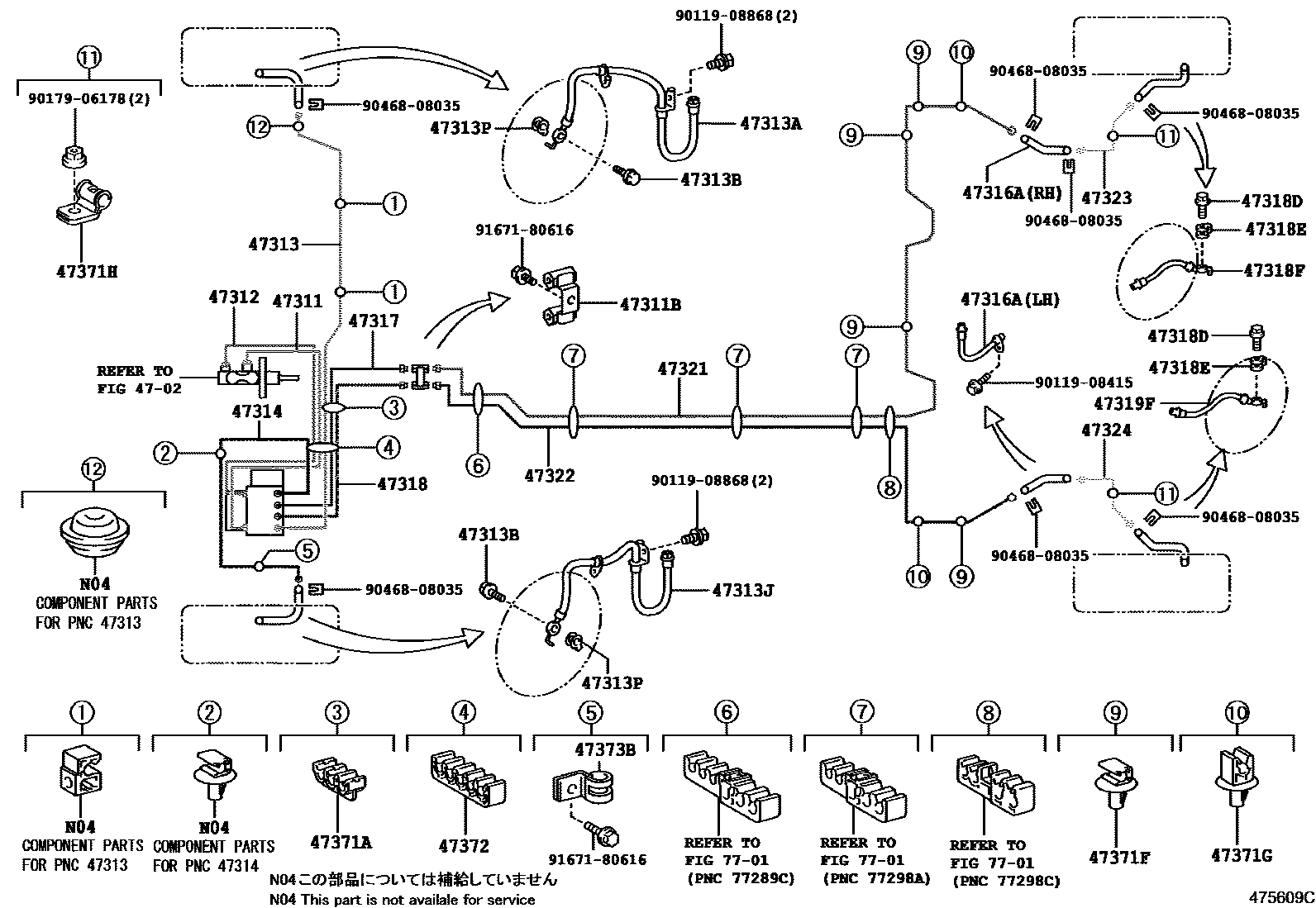

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1W(VSC) 0007 1 0008 1W(VSC)

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-12A10iADE150..RHD200610-200901

main47311-12A30iNRE150,ZRE15#..RHD..(6F,6FS)200610-200910

main47311-12B40iNDE150200812-201012

main47311-12B50iNDE150201012

main47311-1A010iNDE150..LHD200610-200910

main47311-1A030iZRE151,ZZE150..LHD200610-200910

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10260iNDE150,ZRE151,ZZE150200610-201201

main90412-10285iNDE150,ZRE151201201

47312TUBE, FRONT BRAKE, NO.2

main47312-12490iNDE150..LHD200610-200910

main47312-12520iZRE151200610-200910

main47312-12540iNDE150..RHD200610-200901

main47312-12560iNRE150,ZRE15#..RHD..(6F,6FS)200610-200910

main47312-12670iNDE150200812-201012

main47312-12680iNDE150201012

47313TUBE, FRONT BRAKE, NO.3

main47313-12660iNDE150..LHD200610-200910

main47313-12690iNRE150,ZRE15#..LHD..(6F,6FS)200610-200910

main47313-12710iNDE150..RHD200610-200901

main47313-12730iZRE151,ZZE150..RHD200610-200910

main47313-12840iNDE150200812-201012

main47313-12850iNDE150201012

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02E33iNDE150,ZRE151,ZZE150200610-201207

main90947-02G30iNDE150,ZRE151201207-201208

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iNDE150,ZRE151,ZZE150200610-201003

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02E34iNDE150,ZRE151,ZZE150200610-201207

main90947-02G31iNDE150,ZRE151201207-201208

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200610-201003

47314TUBE, FRONT BRAKE, NO.4

main47314-12540iADE150..LHD200610-200910

main47314-12570iZRE151,ZZE150..LHD200610-200910

main47314-12590iNDE150..RHD;ADE150..RHD..DCRL200610-201012

main47314-12600iNDE150201012

main47314-12610iNRE150,ZRE15#..RHD..(6F,6FS)200610-200910

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02E31iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200610-201207

LH

main90947-02E32iNDE150,ZRE151,ZZE150200610-201207

RH

main90947-02F85iNDE150,ZRE151201207-201208

LH

main90947-02F86iNDE150,ZRE151201207-201208

RH

47317TUBE, FRONT BRAKE, NO.7

main47317-12300iNDE150..LHD;ADE150..LHD..DCRL200610-200910

main47317-12330iZRE151,ZZE150..LHD200610-200910

main47317-12350iADE150..RHD200610-201012

main47317-12360iNDE150201012

main47317-12370iZRE151,ZZE150..RHD200610-200708

sub47317-12460

main47317-12460iNRE150,ZRE15#..RHD..(6F,6FS)200709-200910

47318TUBE, FRONT BRAKE, NO.8

main47318-12440iADE150..LHD200610-200910

main47318-12470iNRE150,ZRE15#..LHD..(6F,6FS)200610-200910

main47318-12490iNDE150200610-201012

main47318-12500iNDE150201012

main47318-12510iZRE151,ZZE150..RHD200610-200708

sub47318-12600

main47318-12600iNRE150,ZRE15#..RHD..(6F,6FS)200709-200910

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058iNDE150,ZRE151,ZZE150200610-201003

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020iNDE150,ZRE151,ZZE150200610-201003

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02E30iADE150200610-201207

main90947-02F87iNDE150,ZRE151201207-201208

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02E30iNDE150,ZRE151,ZZE150200610-201207

main90947-02F87iNDE150,ZRE151201207-201208

47321TUBE, REAR BRAKE, NO.1

main47321-12290iNDE150,ZRE151,ZZE150200610-201003

sub47321-12430

47322TUBE, REAR BRAKE, NO.2

main47322-12450iADE150,ZZE150;NDE150,ZRE151..5F,5FS200610-201208

sub47322-12590

47323TUBE, REAR BRAKE, NO.3

main47323-12230iNDE150,ZRE151,ZZE150200610-201003

sub47323-47050

47324TUBE, REAR BRAKE, NO.4

main47324-12190iNDE150,ZRE151,ZZE150200610-201003

sub47324-47050

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00868iZRE151200610-201012

main90464-00899iNDE150201012

47371FCLAMP, BRAKE TUBE, NO.10

main90949-01D17iADE150,ZZE150;NDE150,ZRE151..5F,5FS200610-201208

47371GCLAMP, BRAKE TUBE, NO.11

main90949-01D29iADE150,ZZE150;NDE150,ZRE151..5F,5FS200610-201208

47371HCLAMP, BRAKE TUBE, NO.12

main90461-10837iADE150200610-201201

main90461-10843iNDE150,ZRE151201201

47372CLAMP, BRAKE TUBE, NO.2

main90464-00890iZRE151,ZZE150..RHD200610-200910

NO.1

main90464-00890iNDE150200610-201012

main90464-00892iNDE150201012

main90464-00900iNDE150..LHD..(6F,6FS);ADE150,NRE150,ZRE15#..LHD..(6F,6FS)..(DCRL,HTWC,HTWVM)200610-200910

NO.2

main90464-00900iADE150..LHD200610-200901

47373BCLAMP, BRAKE TUBE, NO.3

main90461-10781iZRE151200610-201201

main90461-10843iZRE151201201-201208

main90949-01D32iNDE150200812-201012

NO.2

main90949-01D43iNDE150201012-201208

NO.1

main90949-01D45iADE150..RHD200610-200901

NO.1 & NO.2

main90949-01D45iNDE150..RHD..(6F,6FS);ADE150,NRE150,ZRE15#..RHD..(6F,6FS)..(DCRL,HTWC,HTWVM)200803-201012

NO.1

main90949-01D45iZRE151,ZZE150..RHD200610-200709

main90949-01D68iNRE150,ZRE15#..RHD..(6F,6FS)200803-200910

NO.2

main90949-01D72iNDE150201012-201208

NO.2

7701

9011908415

main90119-08415

9011908868

main90119-08868

9017906178

main90179-06178

9046808035

main90468-08035

9167180616

main91671-80616

33 parts on this diagram · 8 diagrams in section
