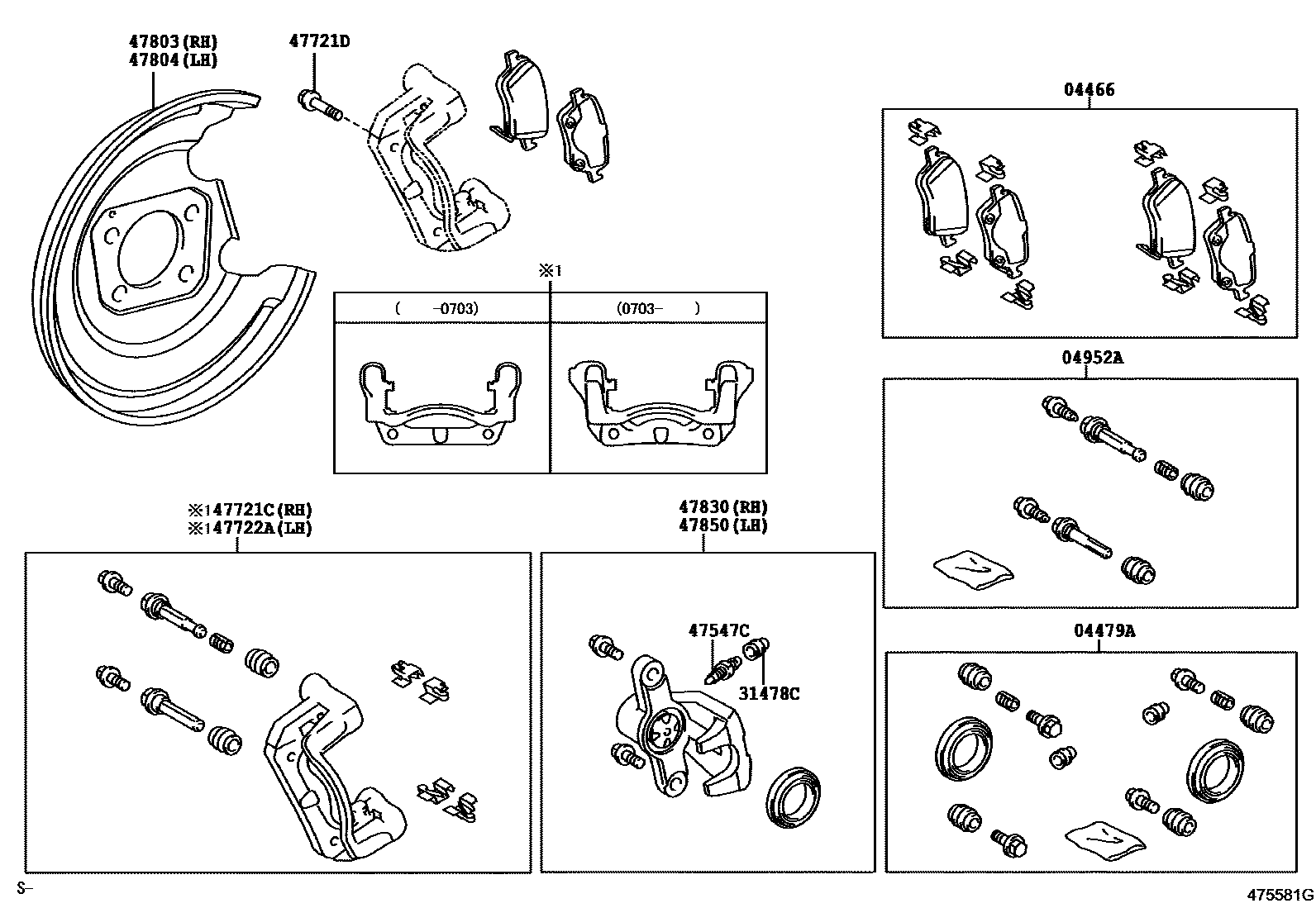

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04466PAD KIT, DISC BRAKE, REAR

main04466-02180iADE150200610-200901

MARK GALFER G3409

main04466-02181iNDE150200910-201203

MARK GALFER G3409

main04466-12130iZRE151,ZZE150200610-200812

MARK AK NS254

main04466-12140iZRE151201111-201205

MARK AK NS254

main04466-12150iZRE151201206-201208

MARK AK NS254

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-02310iADE150200610-200901

main04479-12230iZRE151..SOL200910-201003

04952APIN KIT, REAR DISC BRAKE CYLINDER SLIDE

main04952-02220×2iNDE150200910

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-52010×2iZRE151200910

main90069-39001×2iNDE150200910

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47847-52050×2iZRE151,ZZE150200610-200812

main90069-39000×2iNDE150;ADE150..DCRL200812-200910

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-09010iADE150,NDE150200610-200703

main47821-09020iADE150;NDE150..5F,5FS200703-200901

main47821-12150iZRE151,ZZE150200610-200710

main47821-12151iZRE151200910

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-10404×4iNDE150,ZRE151200910-201208

*10-1.25PX24-21.5

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47821-12150iZRE151,ZZE150200610-200710

main47821-12151iZRE151,ZZE150200710-200812

main47822-09010iADE150,NDE150200610-200703

main47822-09020iNDE150200910

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47881-12070iADE150,NDE150,ZRE151,ZZE150200610-200710

main47881-12071iADE150,ZZE150;NDE150,ZRE151..5F,5FS200710-200901

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47882-12070iADE150,NDE150,ZRE151,ZZE150200610-200710

main47882-12071iADE150,ZZE150;NDE150,ZRE151..5F,5FS200710-200901

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-02100iNDE150200610-200812

main47830-12151iZRE151..SOL200910-201003

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-02100iNDE150200610-200812

sub47850-02101

main47850-12151iZRE151..TERRA200910

12 parts on this diagram · 2 diagrams in section
