BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1

1905

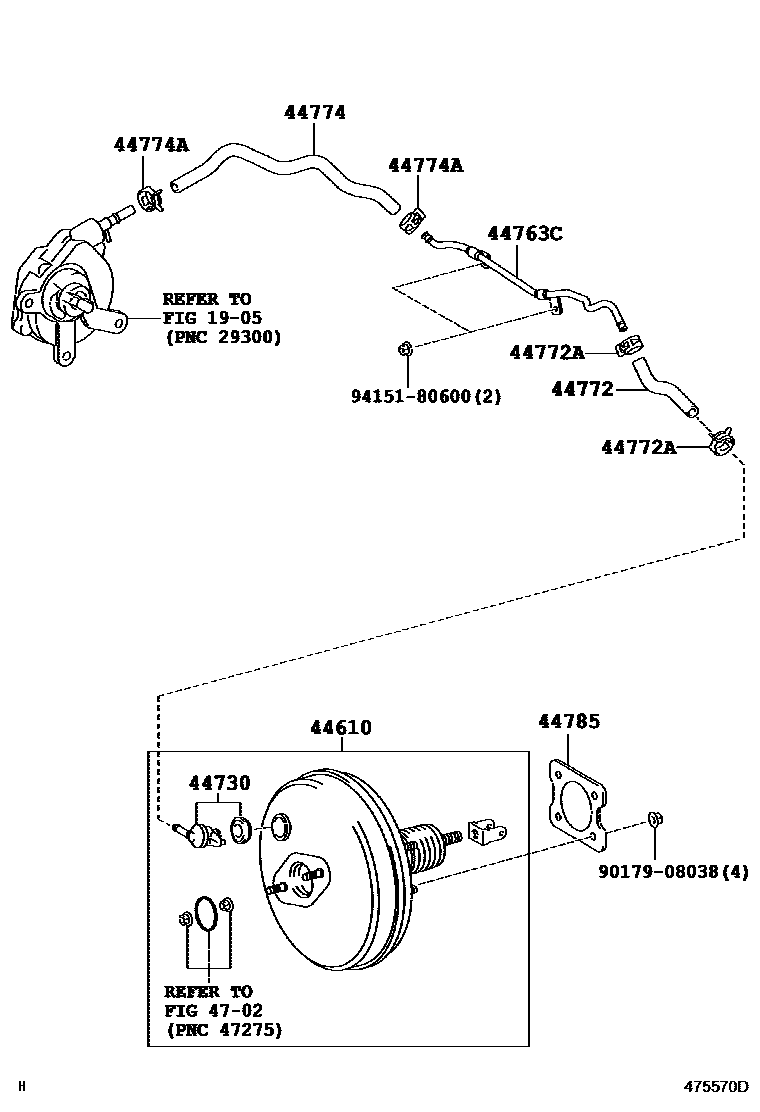

44610BOOSTER ASSY, BRAKE

main44610-12C10iZRE151,ZZE150..LHD200610-200802

sub44610-12C11

main44610-12C11iZRE151,ZZE150..LHD200803-201208

main44610-12D50iZRE151,ZZE150..RHD200610-200803

sub44610-12D51

main44610-12D51iNRE150..RHD200803-200910

main44610-12F31iZRE15#..RHD200812-200910

main44610-12F81iZRE15#..LHD..HTWVM200812-200910

main44610-19015iADE150..LHD;NDE150..LHD..(5F,5FS)200610-200910

main44610-19035iNDE150200910-201208

main44610-19045iNDE150..RHD;ADE150..RHD..DCRL200610-200910

sub44610-09721

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-09020iNDE150¥1,430200610-201208

main44730-12070iNRE150,ZRE15#..RHD..(6F,6FS)¥1,720200610-200910

main44730-14050iZRE151,ZZE150..LHD¥1,380200610-201208

44763CTUBE, HOSE TO HOSE, NO.2

main44763-12400iZRE151200610-201208

main44763-12420iZZE150..RHD¥1,460200610-200812

main44763-12430iZZE150..LHD200610-200812

main44763-12440iZRE15#..RHD¥1,200200610-200910

main44763-12450iNDE150..RHD200610-201208

main44763-12470iNDE150..LHD200610-200812

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-12510iNRE150,ZRE15#..LHD..(6F,6FS)200610-201208

main44772-12580iNDE150..LHD;ADE150..LHD..DCRL200610-200910

main44772-12600iZRE15#..RHD¥850200610-200910

main44772-12610iNDE150..RHD200610-200812

main44772-12620iNDE150..RHD¥850200812-201208

main44772-12640iADE150..RHD200610-200910

main44772-12680iNRE150..RHD200809-200910

sub44772-12681

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90467-16014iNRE150..RHD¥230200809-200910

main96133-41500iADE150¥140200610-201208

44774HOSE, UNION TO CONNECTOR TUBE

main44774-12530iZRE15#..LHD200610-201208

sub44774-02410

main44774-12540iNDE150..LHD200610-200812

main44774-12560iZRE151..RHD¥1,130200610-200910

main44774-12570iNDE150..RHD200610-200812

main44774-12580iADE150..LHD200610-200910

sub44774-64050

main44774-12590iZZE150..RHD200610-200812

main44774-12630iZZE150..LHD200610-200812

main44774-12740iNRE150..LHD200809-200910

sub44774-02440

main44774-12750iNDE150..LHD200812-200910

sub44774-12751

main44774-12760iNDE150200812-201003

sub44774-12761

main44774-12761iNDE150201004-201208

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main96133-41500iADE150..LHD;NDE150,ZRE151,ZZE150..5F,5FS¥140200610-201208

44785GASKET, BRAKE BOOSTER

main44785-12040iADE150¥200200610-201003

4702

9017908038

main90179-08038¥130

9415180600

main94151-80600¥60

12 parts on this diagram · 14 diagrams in section
