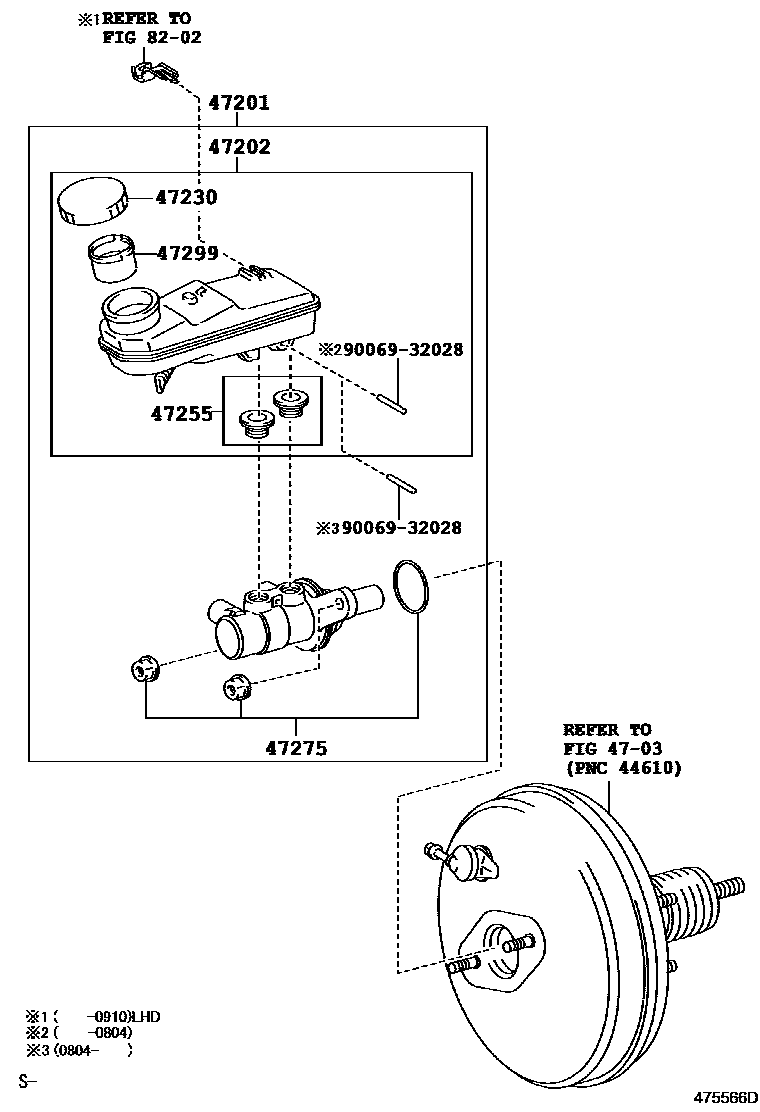

BRAKE MASTER CYLINDER

0001 1 0002 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-12A00iZRE151,ZZE150..RHD200610-200910

main47201-12A70iZRE151200610-201208

main47201-19015iADE150,NDE150..LHD200610-200804

sub47201-19065

main47201-19045iADE150,NDE150..RHD200610-200804

sub47201-19085

main47201-19065iNDE150..LHD;ADE150..LHD..DCRL200804-200910

main47201-19075iNDE150200910-201208

main47201-19085iNDE150..RHD;ADE150..RHD..DCRL200804-200910

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-09090iNDE150..LHD;ADE150..LHD..DCRL200610-200910

main47220-09100iNDE150..RHD;ADE150..RHD..DCRL200610-201208

main47220-12190iNRE150,ZRE15#..RHD..(6F,6FS)200610-200910

main47220-12200iZRE151200610-201208

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0D010iADE150200610-201208

main47230-20140iZRE151200610-201208

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-09040iNDE150200610-201208

main90029-48001iZRE151200610-201208

sub90016-AT001

47275GASKET, BRAKE MASTER CYLINDER

main47275-09010iADE150;NDE150..5F,5FS200610-201208

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-02160iNDE150200610-201208

main47299-20060iZRE151,ZZE150200610-201208

8202

9006932028

main90069-32028

9 parts on this diagram · 2 diagrams in section
