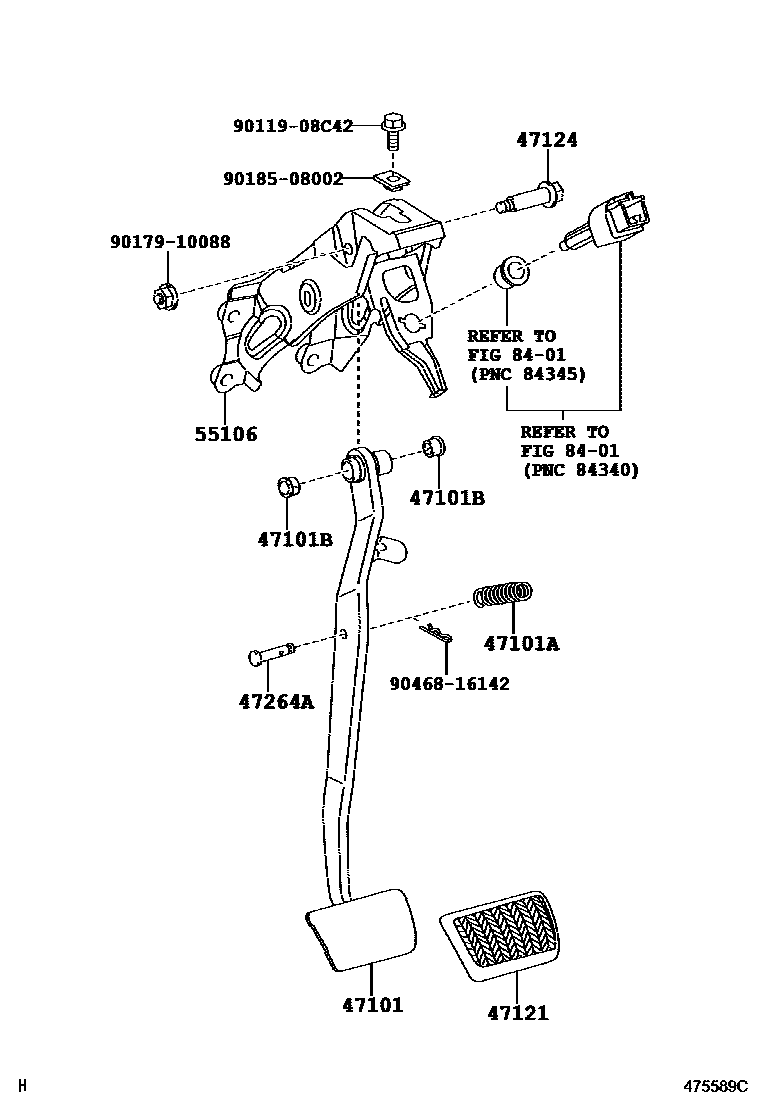

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-12630iADE150,NDE150,ZRE151,ZZE150..RHD..(5F,6F)200610-200707

sub47101-12631

main47101-12631iADE150..RHD200708-200910

main47101-12640iNDE150,ZRE151..RHD..5FS200610-200707

sub47101-12641

main47101-12641iNDE150,ZRE151..RHD..6FS200708-200910

main47101-12650iZRE151..TERRA200610-201003

main47101-12660iNDE150,ZRE151..LHD..5FS200610-200910

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-15005iNDE150,ZRE151,ZZE150200610-201208

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iADE150,NDE150,ZRE151,ZZE150..RHD200610-201003

47121PAD, BRAKE PEDAL

main31321-42010iNDE150,ZRE151200610-201208

main47121-42010iNDE150,ZRE151..5FS200610-200910

47124SHAFT, BRAKE PEDAL

main90109-10174iNDE150,ZRE151,ZZE150..LHD200610-201003

47264APIN(FOR PUSH ROD)

main90249-08256iZRE151..SOL200610-201003

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-12680iADE150,NDE150,ZRE151,ZZE150..RHD200610-200910

main55106-12690iZRE151..TERRA200610-201003

8401

9011908C42

main90119-08C42

9017910088

main90179-10088

9018508002

main90185-08002

9046816142

main90468-16142

12 parts on this diagram · 1 diagram in section
