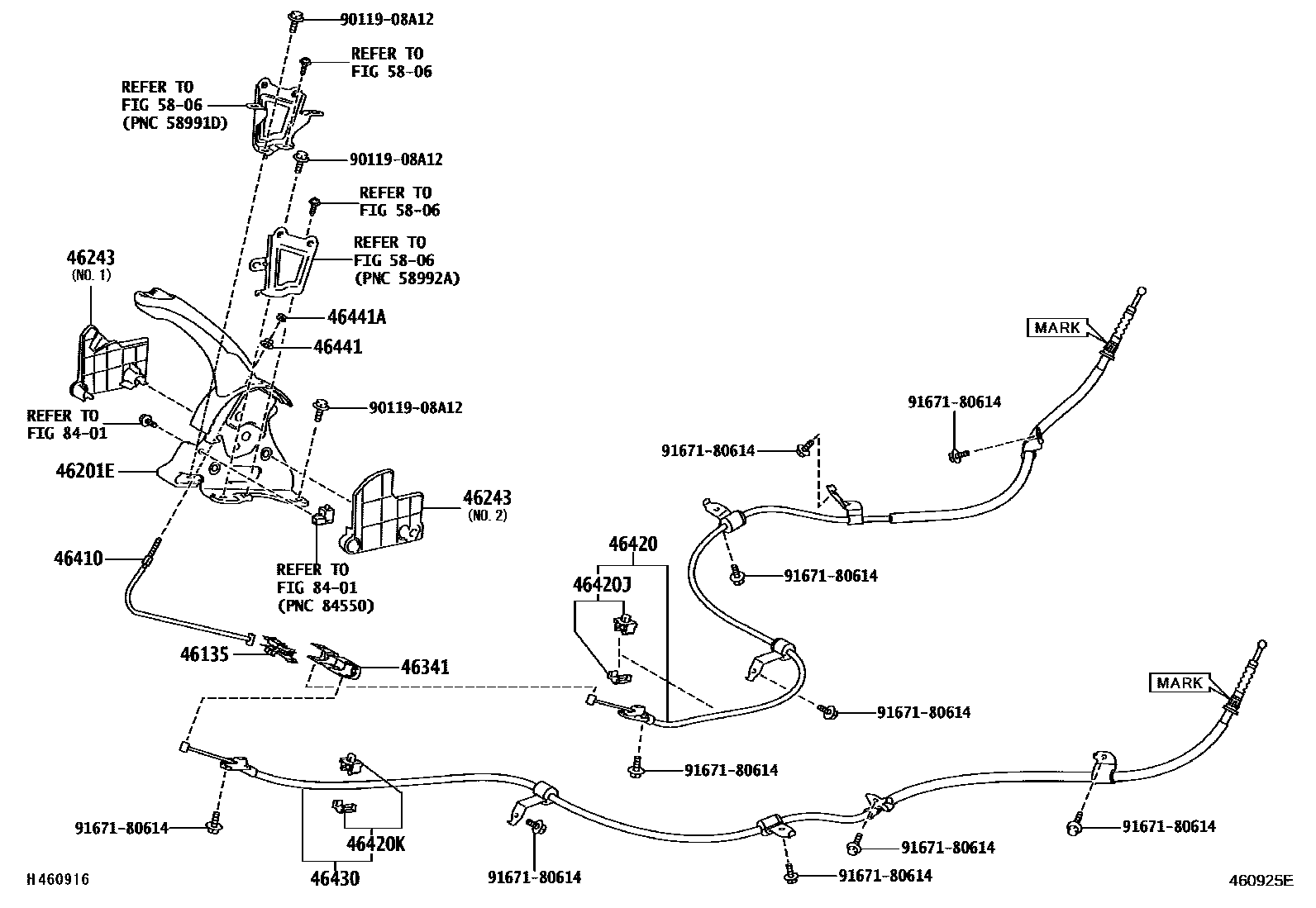

PARKING BRAKE & CABLE

0001 1 0002 1

46135STOPPER, PARKING BRAKE CABLE END

main46135-12010iNDE150,ZRE151200610-200910

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-12351-B0iADE150,NDE150,ZRE151,ZZE150..TERRA200610-200708

DK.GRAY,TRIM1#

sub46201-12352

main46201-12351-B0iADE150,NDE150,ZRE151,ZZE150..SOL200610-200708

DK.GRAY,TRIM1#,4#

sub46201-12352

main46201-12352-B0iNDE150..(6F,6FS)..TERRA;ADE150,NRE150,ZRE15#..(6F,6FS)..TERRA..(DCRL,HTWC,HTWVM)200709-200910

DK.GRAY,TRIM1#,4#

sub46201-12353

sub90159-50360

main46201-12352-B0iNDE150..(6F,6FS)..SOL;ADE150,NRE150,ZRE15#..(6F,6FS)..SOL..(DCRL,HTWC,HTWVM)200709-200910

DK.GRAY,TRIM1#

sub46201-12353

sub90159-50360

main46201-12500-B3iNDE150,ZRE151200910-201208

DK.GRAY,TRIM1#

46243COVER, PARKING BRAKE LEVER

main46243-12041iNDE150,ZRE151,ZZE150200610-200910

NO.1

main46243-12051iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200610-200910

NO.2

46341EQUALIZER, PARKING BRAKE

main46341-12040iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200610-200910

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-12280iADE150,NDE150,ZRE151,ZZE150200610-200910

main46410-12350iNDE150,ZRE151200910

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-12590iADE150,NDE150200610-200701

NO MARK

sub46420-12730

main46420-12700iZRE151,ZZE150200610-200711

sub46420-12720

main46420-12700iADE150,NDE150200701-200711

PINK MARK

sub46420-12720

main46420-12720iADE150,ZZE150;NDE150,ZRE151..5F,5FS200712-201207

sub46420-12810

main46420-12721iNDE150,ZRE151201207-201208

sub46420-12720

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main46402-12010iADE150,NDE150,ZRE151,ZZE150200610-200711

sub46402-12030

main46402-12030iNDE150,ZRE151,ZZE150200712-201003

46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)

main46402-12010iADE150,NDE150,ZRE151,ZZE150200610-200711

sub46402-12030

main46402-12030iNDE150,ZRE151,ZZE150200712-201003

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-12470iADE150,NDE150200610-200701

NO MARK

sub46430-12620

main46430-12580iZRE151,ZZE150200610-200711

sub46430-12610

main46430-12580iADE150,NDE150200701-200711

PINK MARK

sub46430-12610

main46430-12610iADE150,ZZE150;NDE150,ZRE151..5F,5FS200712-201207

sub46430-12700

main46430-12611iNDE150,ZRE151201207-201208

sub46430-12610

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iADE150,NDE150,ZRE151,ZZE150200610-200910

46441ANUT, WIRE ADJUSTING, NO.2

main90179-06299iNDE150,ZRE151,ZZE150200610-201104

5806

8401

9011908A12

main90119-08A12

9167180614

main91671-80614

15 parts on this diagram · 2 diagrams in section
