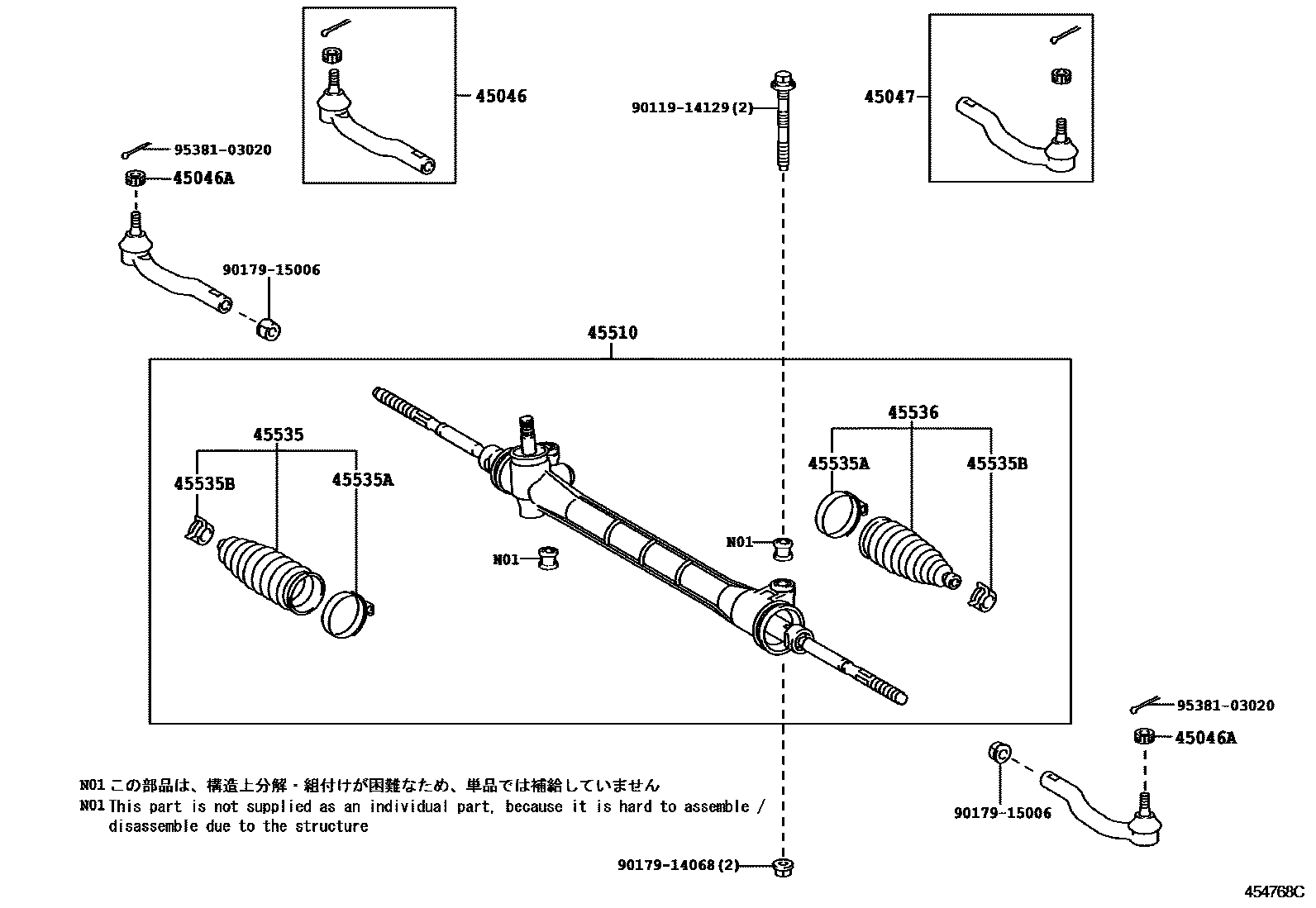

FRONT STEERING GEAR & LINK

0001 1 0002 1

45046END SUB-ASSY, TIE ROD, RH

main45046-19415iADE150200610-201003

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iNDE150,ZRE151,ZZE150200610-201003

45047END SUB-ASSY, TIE ROD, LH

main45047-19215iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200610-201003

45510GEAR ASSY, STEERING

main45510-12360iNDE150,ZRE151,ZZE150..RHD200610-201107

sub45510-12361

main45510-12361iNDE150201108

main45510-12390iNDE150..LHD..(6F,6FS);ADE150,NRE150,ZRE15#..LHD..(6F,6FS)..(DCRL,HTWC,HTWVM)200610-201010

sub45510-12391

main45510-12470iZRE151201011-201107

sub45510-12471

main45510-12471iZRE151201108

45535BOOT, STEERING RACK, NO.1

main45535-49015iNDE150,ZRE151,ZZE150200610-201003

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-47010iNDE150,ZRE151,ZZE150200610-201003

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021iNDE150,ZRE151,ZZE150200610-201003

45536BOOT, STEERING RACK, NO.2

main45535-49015iNDE150,ZRE151,ZZE150200610-201003

9011914129

main90119-14129

9017914068

main90179-14068

9017915006

main90179-15006

9538103020

main95381-03020

12 parts on this diagram · 2 diagrams in section
