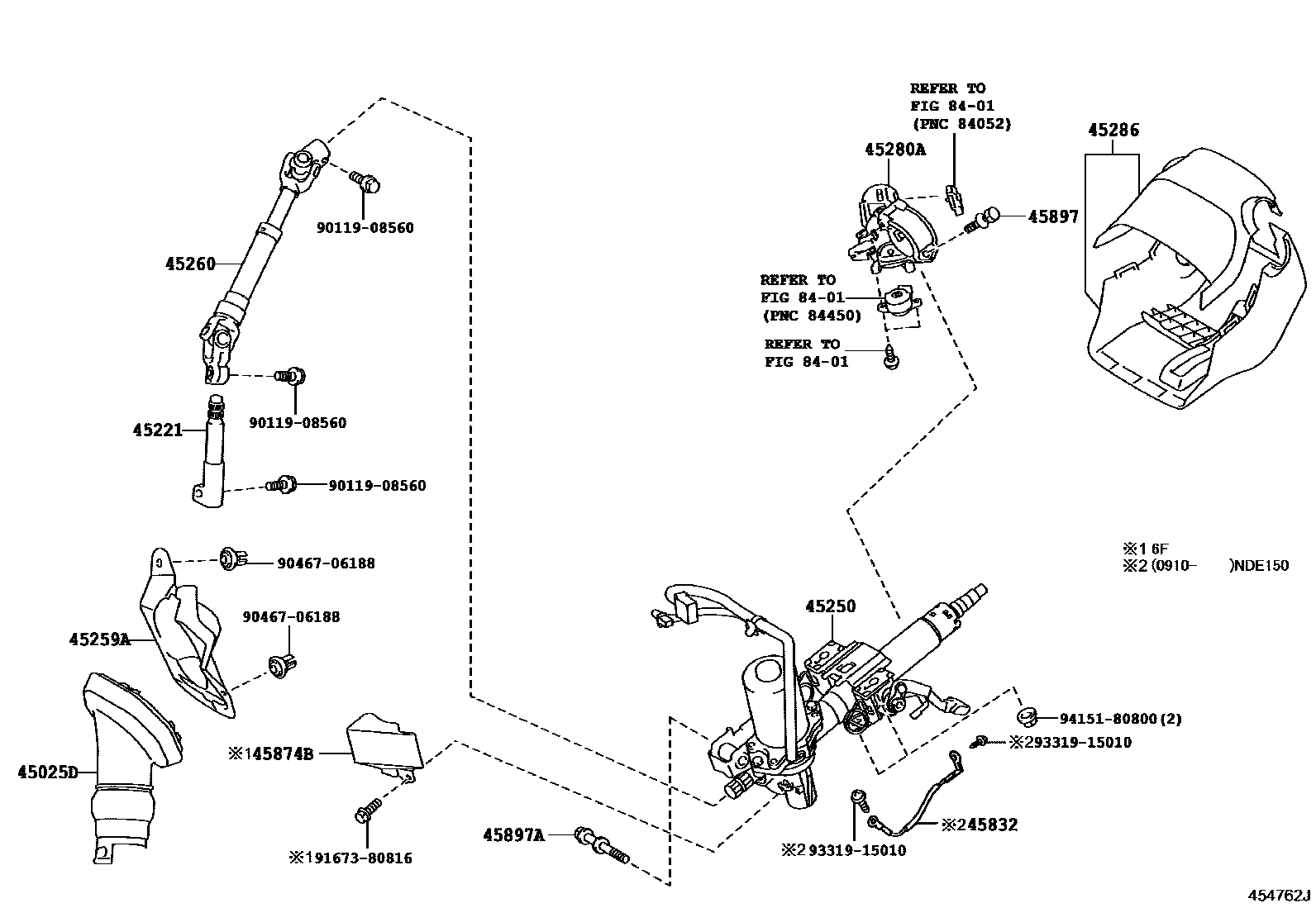

STEERING COLUMN & SHAFT

0001 1 0002 1STARTING SYSTEM-PUSH BUTTON

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-12280iADE150..RHD200610-200910

main45025-12300iZRE151..TERRA200610-201003

45221SHAFT, STEERING INTERMEDIATE

main45221-12330iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200610-201003

45250COLUMN ASSY, STEERING

main45250-12B70iADE150,NDE150,ZRE151,ZZE150..RHD200610-200708

sub45250-12B71

main45250-12B71iADE150,NDE150,ZRE151,ZZE150..RHD200709-200712

sub45250-12B72

main45250-12B72iNDE150200801-201208

main45250-12B90iADE150,NDE150,ZRE151,ZZE150..LHD200610-200708

sub45250-12B91

main45250-12B91iADE150,NDE150,ZRE151,ZZE150..LHD200709-200712

sub45250-12B92

main45250-12B92iNDE150,ZRE151,ZZE150..LHD200801-201208

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-12050iNDE150,ZRE151,ZZE150..RHD200610-201002

main45259-12070iNDE150,ZRE151,ZZE150..LHD200610-200910

main45259-12120iNDE150201003

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-12520iNDE150,ZRE151,ZZE150..RHD200610-201102

sub45260-47070

main45260-12550iZRE151200610-201107

sub45260-47080

main45260-12730iNDE150201201

main45260-12740iZRE151201201

main45260-47070iNDE150201103-201112

sub45260-12770

main45260-47080iZRE151201108-201201

sub45260-12760

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-42140iZRE151200610-201208

main45280-42160iNDE150..RHD..(6F,6FS);ADE150,NRE150,ZRE15#..RHD..(6F,6FS)..(DCRL,HTWC,HTWVM)200610-201208

sub45280-42161

45286COVER, STEERING COLUMN

main45286-12977-B0iNDE150..(6F,6FS)..TERRA;ADE150,NRE150,ZRE15#..(6F,6FS)..TERRA..(DCRL,HTWC,HTWVM)200610-200910

DK.GRAY,TRIM1#,4#

main45286-12977-B0iNDE150..(6F,6FS)..SOL;ADE150,NRE150,ZRE15#..(6F,6FS)..SOL..(DCRL,HTWC,HTWVM)200610-201102

DK.GRAY,TRIM1#

main45286-12986-B0iNDE150,ZRE151201102-201208

DK.GRAY,TRIM1#

sub45286-12986

45832CABLE, TILT STEERING SUPPORT BOND

main45832-21010iNDE150200910-201208

45874BPROTECTOR, STEERING COLUMN, NO.1

main45874-12090iNDE150,ZRE151,ZZE150..RHD..5F200610-200910

45897BOLT, STEERING LOCK SET

main45897-12020iNDE150,ZRE151,ZZE150200610-200910

45897ABOLT, TILT STEERING PAWL SET

main45897-42010iADE150,ZZE150;NDE150,ZRE151..5F,5FS200610-201003

8401

9011908560

main90119-08560

9046706188

main90467-06188

9167380816

main91673-80816

9331915010

main93319-15010

9415180800

main94151-80800

17 parts on this diagram · 2 diagrams in section
