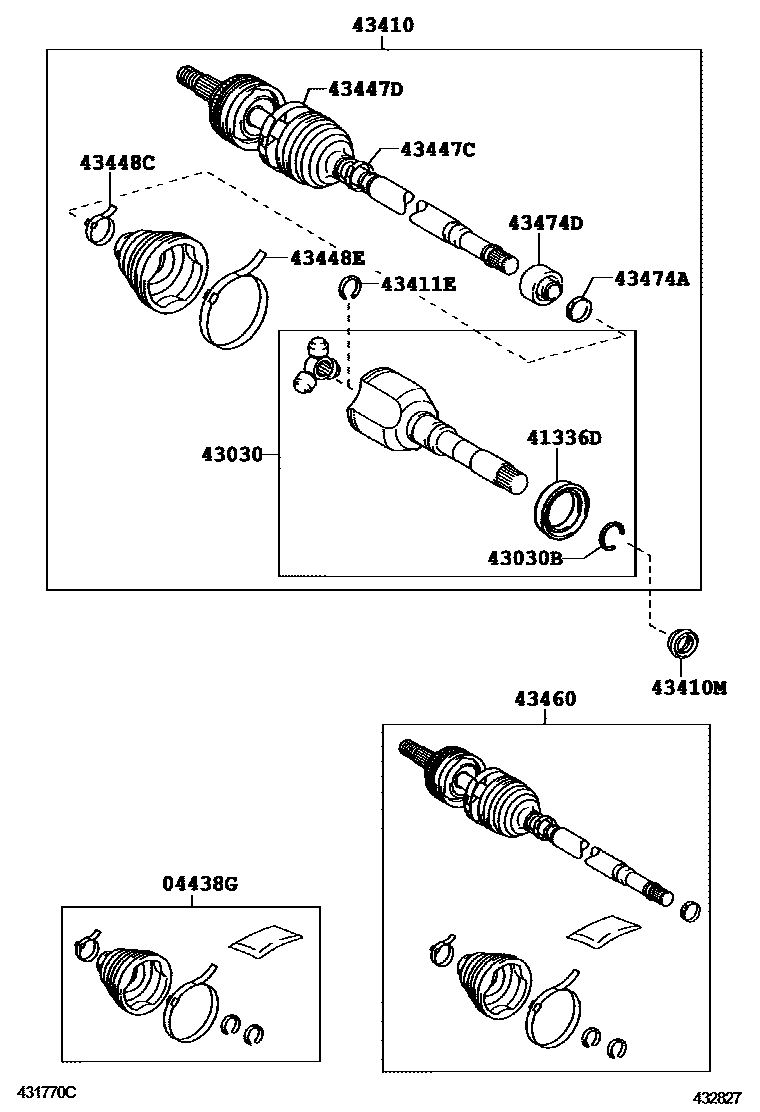

FRONT DRIVE SHAFT

0001 1RH 0002 1LH 0003 1 0004 1RH 0005 1LH

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-02280iNDE150,ZRE15#200610-200910

main04437-02290iZRE151,ZZE150200610-200910

main04437-05070iADE150200610-200910

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-05010iZRE151,ZZE150200610-200910

main41336-05100iADE150200610-200910

main41336-05140iNDE150,ZRE15#¥380200610-200910

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-05200iADE150200610-200910

main43040-02030iNRE150¥10,000200610-200910

main43040-05110iNDE150,ZRE15#200610-200910

43030BRING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH)

main43425-05050iADE150200610-200910

main90080-52055iNDE150¥90200610-200910

main90080-52056iNRE150¥100200610-200910

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-02570iNRE150200610-200910

sub43410-02571¥68,900

main43410-02580iNDE150¥82,800200610-201111

sub43410-02581

main43410-02581iNDE150,ZRE151201111-201208

main43410-02590iADE150200610-200910

sub43410-02591

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-34033iZRE151,ZZE150¥350200610-200812

sub90311-34039¥350

main90311-34037iNRE150¥350200809-200910

*201

sub90311-34041¥350

main90311-34037iNRE150¥350200810-200910

*206

sub90311-34041¥350

main90311-35057iNDE150¥350200610-200812

sub90311-35065¥270

main90311-35062iNDE150,ZRE151..6FS¥350200812-200910

*206

sub90311-35065¥270

main90311-35062iNDE150,ZRE151..6FS¥350200812-200910

*201

sub90311-35065¥270

main90311-35062iNDE150,ZRE151¥350200910-201011

*201,*206

sub90311-35065¥270

main90311-35065iNDE150,ZRE151¥270201011-201208

*201,*206

main90311-40030iADE150¥310200610-200910

sub90311-40036¥310

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-05040iADE150200610-200910

main90080-52093iNDE150,ZRE151,ZZE150¥120200610-200910

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-05140iNDE150,ZRE151,ZZE150¥250200610-200910

main42345-05280iADE150200610-200910

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-02220iNDE150,NRE150,ZRE15#..6F,6FS200610-200910

main42345-05270iADE150¥680200610-200910

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-02240iNDE150,ZRE151¥260200610-200910

main42345-05250iADE150200610-200910

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-05030iNDE150,ZRE151,ZZE150200610-200910

main42345-05210iADE150200610-200910

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-09R20iZRE151,ZZE150200610-200910

sub43460-09R21

main43460-09R30iNDE150,ZRE151200610-201110

sub43460-09R31

main43460-09R31iNDE150,ZRE151201111

main43470-09S90iADE150200610-200910

sub43470-09S91

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-02230iNDE150,ZRE151,ZZE150200610-200910

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-02150iNDE150,ZRE151,ZZE150200610-200910

14 parts on this diagram · 5 diagrams in section
