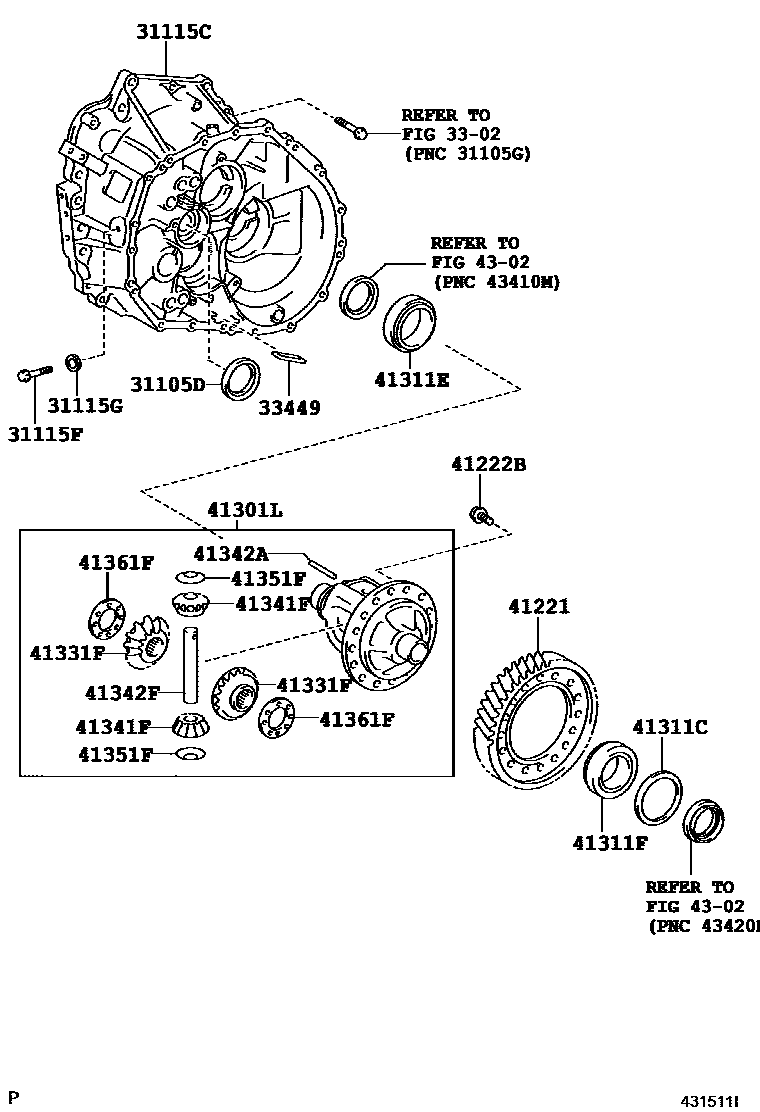

FRONT AXLE HOUSING & DIFFERENTIAL
31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
*201
*206
*201,*206
31115FBOLT(FOR FRONT TRANSAXLE CASE)
31115GGASKET(FOR FRONT TRANSAXLE CASE)
3302
33449MAGNET, TRANSMISSION
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41301LCASE SUB-ASSY, FRONT DIFFERENTIAL, NO.1
41311CASE, FRONT DIFFERENTIAL
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
*201,*206
*201
*206
41331FGEAR, FRONT DIFFERENTIAL SIDE
*201
*206
41341FPINION, FRONT DIFFERENTIAL
*206
*201
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
*201,*206
*201
*206
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
*206
*201
*206
*201
*201,*206
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.25
T=1.30
T=1.35
T=1.40
T=1.45
T=1.50
T=1.55
T=1.60
T=1.65
T=1.70
T=1.75
T=1.80
T=1.85
T=1.90
T=1.95
T=1.00,MARK 02,*201
T=1.00,MARK 02,*206
T=1.00,MARK 02
T=1.00,MARK 02,*201,*206
T=1.10,MARK 03,*201
T=1.10,MARK 03,*206
T=1.10,MARK 03,*201,*206
T=1.10,MARK 03
T=1.20,MARK 04
T=1.20,MARK 04,*206
T=1.20,MARK 04,*201
T=1.20,MARK 04,*201,*206
T=1.30,MARK 12,*206
T=1.30,MARK 12,*201
T=1.40,MARK 13,*206
T=1.40,MARK 13,*201
T=0.95,MARK 14
T=0.95,MARK 14,*206
T=0.95,MARK 14,*201
T=0.95,MARK 14,*201,*206
T=1.05,MARK 15
T=1.05,MARK 15,*206
T=1.05,MARK 15,*201
T=1.05,MARK 15,*201,*206
T=1.15,MARK 16
T=1.15,MARK 16,*201,*206
T=1.15,MARK 16,*201
T=1.15,MARK 16,*206
T=1.25,MARK 17,*206
T=1.25,MARK 17,*201
T=1.35,MARK 18,*206
T=1.35,MARK 18,*201
4302
20 parts on this diagram · 4 diagrams in section
