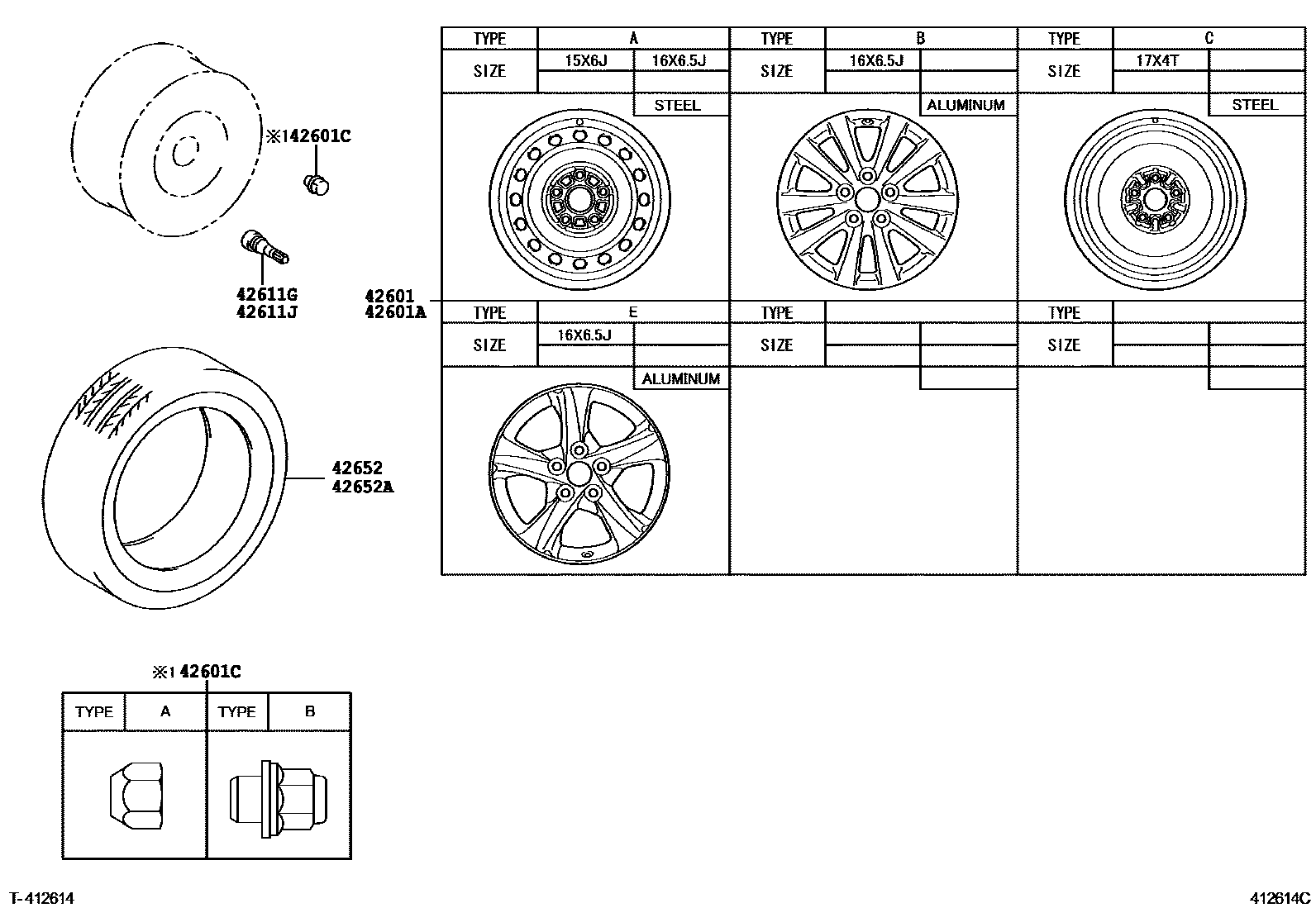

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
16X6.5J, #,FINLAND SPEC&TIRE & DISC WHEEL-205/55R16 6.5J STEEL&SPARE TIRE-GROUND TIRE(205/55R16),STEEL WHEEL,TYPE A:REFER ILLUST.
16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMINUM&SPARE TIRE-GROUND TIRE(205/55R16),STEEL WHEEL,TYPE B:REFER ILLUST.
16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMINUM,PNC42601=TYPE E&SPARE TIRE-GROUND TIRE(205/55R16),STEEL WHEEL,TYPE E:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
16X6.5J, #,TYPE A:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TYPE A:REFER ILLUST.
TIRE & DISC WHEEL-205/55R16 6.5J ALUMINUM,TYPE B:REFER ILLUST.
42611GVALVE (FOR TUBELESS TIRE)
GREECE SPEC
42611JVALVE (FOR TUBELESS TIRE SPARE)
GREECE SPEC
42652TIRE
main42652-12B81×4iNDE150..RHD..(6F,6FS)..SOL;ADE150,NRE150,ZRE15#..RHD..(6F,6FS)..SOL..(DCRL,HTWC,HTWVM)200809-200910
205/55R16,*D/L,TIRE & DISC WHEEL-205/55R16 6.5J STEEL&SPARE TIRE-GROUND TIRE(205/55R16),STEEL WHEEL
205/55R16,*D/L,TIRE & DISC WHEEL-205/55R16 6.5J STEEL&SPARE TIRE-GROUND TIRE(205/55R16),STEEL WHEEL
main42652-12C00×4iNDE150..RHD..(6F,6FS)..SOL;ADE150,NRE150,ZRE15#..RHD..(6F,6FS)..SOL..(DCRL,HTWC,HTWVM)200809-200904
205/55R16,*Y/H,TIRE & DISC WHEEL-205/55R16 6.5J STEEL&SPARE TIRE-GROUND TIRE(205/55R16),STEEL WHEEL
205/55R16,*Y/H,TIRE & DISC WHEEL-205/55R16 6.5J STEEL&SPARE TIRE-GROUND TIRE(205/55R16),STEEL WHEEL
205/55R16,*Y/H,TIRE & DISC WHEEL-205/55R16 6.5J STEEL&SPARE TIRE-GROUND TIRE(205/55R16),STEEL WHEEL
205/55R16,*Y/H,TIRE & DISC WHEEL-205/55R16 6.5J STEEL&SPARE TIRE-GROUND TIRE(205/55R16),STEEL WHEEL
205/55R16,*D/L
205/55R16,*Y/H
205/55R16,*Y/H,TIRE & DISC WHEEL-205/55R16 6.5J STEEL&SPARE TIRE-GROUND TIRE(205/55R16),STEEL WHEEL
sub42652-12D42
main42652-12F80×4supersedes 42652-12B60iNDE150..RHD..(6F,6FS)..SOL;ADE150,NRE150,ZRE15#..RHD..(6F,6FS)..SOL..(DCRL,HTWC,HTWVM)200809-200910
205/55R16,*B/S,TIRE & DISC WHEEL-205/55R16 6.5J STEEL
205/55R16,*B/S,FINLAND SPEC&TIRE & DISC WHEEL-205/55R16 6.5J STEEL
195/65R15,GOODYEAR,TIRE & DISC WHEEL-195/65R15 6J STEEL&SPARE TIRE-GROUND TIRE(195/65R15),STEEL WHEEL
sub42652-12C41
195/65R15,GOODYEAR,FINLAND SPEC&TIRE & DISC WHEEL-195/65R15 6J STEEL&SPARE TIRE-GROUND TIRE(195/65R15),STEEL WHEEL
sub42652-12C51
195/65R15,*Y/H,TIRE & DISC WHEEL-195/65R15 6J STEEL&SPARE TIRE-GROUND TIRE(195/65R15),STEEL WHEEL
sub42652-12C61
195/65R15,*Y/H,FINLAND SPEC&TIRE & DISC WHEEL-195/65R15 6J STEEL&SPARE TIRE-GROUNDTIRE(195/65R15),STEEL WHEEL
sub42652-12C71
main42652-12D11×4iNDE150..RHD..(6F,6FS);ADE150,NRE150,ZRE15#..RHD..(6F,6FS)..(DCRL,HTWC,HTWVM)200809-200910
205/55R16,*D/L,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI,GENERAL COUNTRIES&SPARE TIRE-GROUND TIRE(205/55R16),STEEL WHEEL
205/55R16,*Y/H,TIRE & DISC WHEEL-205/55R16 6.5J STEEL&SPARE TIRE-GROUND TIRE(205/55R16),STEEL WHEEL
205/55R16,*Y/H,TIRE & DISC WHEEL-205/55R16 6.5J STEEL&SPARE TIRE-GROUND TIRE(205/55R16),STEEL WHEEL
42652ATIRE (FOR SPARE)
205/55R16,*D/L
205/55R16,*Y/H
205/55R16,*Y/H,TIRE & DISC WHEEL-205/55R16 6.5J STEEL&SPARE TIRE-GROUND TIRE(205/55R16),STEEL WHEEL
sub42652-12D42
T125/70D17,*B/S,TIRE & DISC WHEEL-205/55R16 6.5J STEEL
main42652-05250iADE150,NRE150,ZRE152..LHD..(DCRL,HTWC,HTWVM);NDE150,ZRE151..LHD..(6F,6FS)..(DCR,DCRL,HTWVM)200809-200910
T125/70D17,MICHELIN,FINLAND SPEC
195/65R15,*D/L,SPARE TIRE-GROUND TIRE(195/65R15),STEEL WHEEL
195/65R15,*D/L,FINLAND SPEC&SPARE TIRE-GROUND TIRE(195/65R15),STEEL WHEEL
195/65R15,*Y/H,SPARE TIRE-GROUND TIRE(195/65R15),STEEL WHEEL
195/65R15,*Y/H,FINLAND SPEC&SPARE TIRE-GROUND TIRE(195/65R15),STEEL WHEEL
main42652-12B81iNDE150..RHD..(6F,6FS)..SOL;ADE150,NRE150,ZRE15#..RHD..(6F,6FS)..SOL..(DCRL,HTWC,HTWVM)200809-200910
205/55R16,*D/L,TIRE & DISC WHEEL-205/55R16 6.5J STEEL&SPARE TIRE-GROUND TIRE(205/55R16),STEEL WHEEL
main42652-12B91iADE150,NRE150,ZRE152..LHD..(DCRL,HTWC,HTWVM);NDE150,ZRE151..LHD..(6F,6FS)..(DCR,DCRL,HTWVM)200809-200910
205/55R16,*D/L,FINLAND SPEC&SPARE TIRE-GROUND TIRE(205/55R16),STEEL WHEEL
main42652-12C00iNDE150..RHD..(6F,6FS)..SOL;ADE150,NRE150,ZRE15#..RHD..(6F,6FS)..SOL..(DCRL,HTWC,HTWVM)200809-200904
205/55R16,*Y/H,TIRE & DISC WHEEL-205/55R16 6.5J STEEL&SPARE TIRE-GROUND TIRE(205/55R16),STEEL WHEEL
205/55R16,*Y/H,TIRE & DISC WHEEL-205/55R16 6.5J STEEL&SPARE TIRE-GROUND TIRE(205/55R16),STEEL WHEEL
main42652-12C10iADE150,NRE150,ZRE152..LHD..(DCRL,HTWC,HTWVM);NDE150,ZRE151..LHD..(6F,6FS)..(DCR,DCRL,HTWVM)200809-200904
205/55R16,*Y/H,TIRE & DISC WHEEL-205/55R16 6.5J STEEL&SPARE TIRE-GROUND TIRE(205/55R16),STEEL WHEEL
205/55R16,*Y/H,TIRE & DISC WHEEL-205/55R16 6.5J STEEL&SPARE TIRE-GROUND TIRE(205/55R16),STEEL WHEEL
195/65R15,GOODYEAR,TIRE & DISC WHEEL-195/65R15 6J STEEL&SPARE TIRE-GROUND TIRE(195/65R15),STEEL WHEEL
sub42652-12C41
195/65R15,GOODYEAR,FINLAND SPEC&TIRE & DISC WHEEL-195/65R15 6J STEEL&SPARE TIRE-GROUND TIRE(195/65R15),STEEL WHEEL
sub42652-12C51
195/65R15,*Y/H,TIRE & DISC WHEEL-195/65R15 6J STEEL&SPARE TIRE-GROUND TIRE(195/65R15),STEEL WHEEL
sub42652-12C61
195/65R15,*Y/H,FINLAND SPEC&TIRE & DISC WHEEL-195/65R15 6J STEEL&SPARE TIRE-GROUNDTIRE(195/65R15),STEEL WHEEL
sub42652-12C71
205/55R16,*D/L,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI&SPARE TIRE-GROUND TIRE(205/55R16),STEEL WHEEL
205/55R16,*Y/H,TIRE & DISC WHEEL-205/55R16 6.5J STEEL&SPARE TIRE-GROUND TIRE(205/55R16),STEEL WHEEL
205/55R16,*Y/H,TIRE & DISC WHEEL-205/55R16 6.5J STEEL&SPARE TIRE-GROUND TIRE(205/55R16),STEEL WHEEL
main42652-12F80iNDE150..RHD..(6F,6FS)..SOL;ADE150,NRE150,ZRE15#..RHD..(6F,6FS)..SOL..(DCRL,HTWC,HTWVM)200809-200910
205/55R16,*B/S,TIRE & DISC WHEEL-205/55R16 6.5J ALUMINUM&SPARE TIRE-GROUND TIRE(205/55R16),STEEL WHEEL
main42652-12F90iADE150,NRE150,ZRE152..LHD..(DCRL,HTWC,HTWVM);NDE150,ZRE151..LHD..(6F,6FS)..(DCR,DCRL,HTWVM)200809-200910
205/55R16,*B/S,FINLAND SPEC&TIRE & DISC WHEEL-205/55R16 6.5J STEEL&SPARE TIRE-GROUND TIRE(205/55R16),STEEL WHEEL
7 parts on this diagram · 3 diagrams in section
