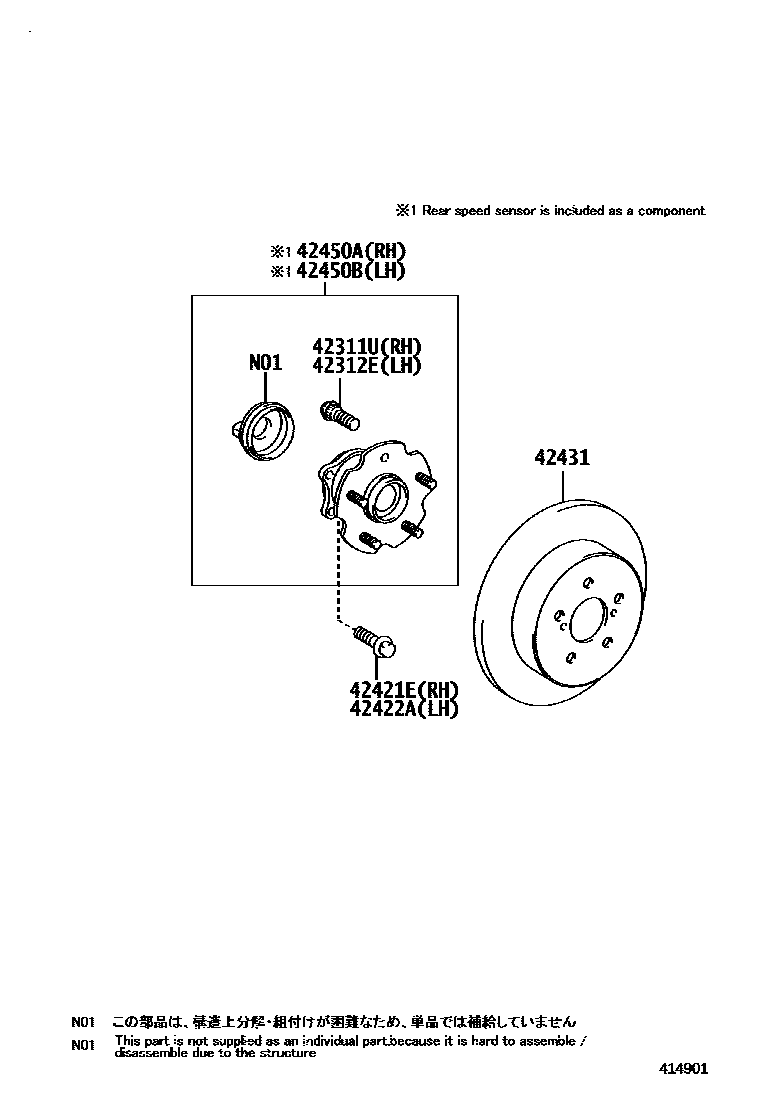

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049iADE150¥240200610-200910

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049iNDE150,ZRE151,ZZE150¥240200610-200910

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12350iADE150,ZZE150;NDE150,ZRE151..5F,5FS¥160200610-201208

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12350iADE150,ZZE150;NDE150,ZRE151..5F,5FS¥160200610-201208

42431DISC, REAR

main42431-12260iNRE150,ZRE15#..6F,6FS¥7,500200610-201208

main42431-12280iNDE150;ADE150..DCRL¥9,800200610-201208

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-12090iZRE151¥18,100200610-201208

main42450-12100iNDE150¥28,800200610-201208

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-12090iZRE151,ZZE150¥18,100200610-201208

main42450-12100iNDE150¥28,800200610-201208

7 parts on this diagram · 1 diagram in section
