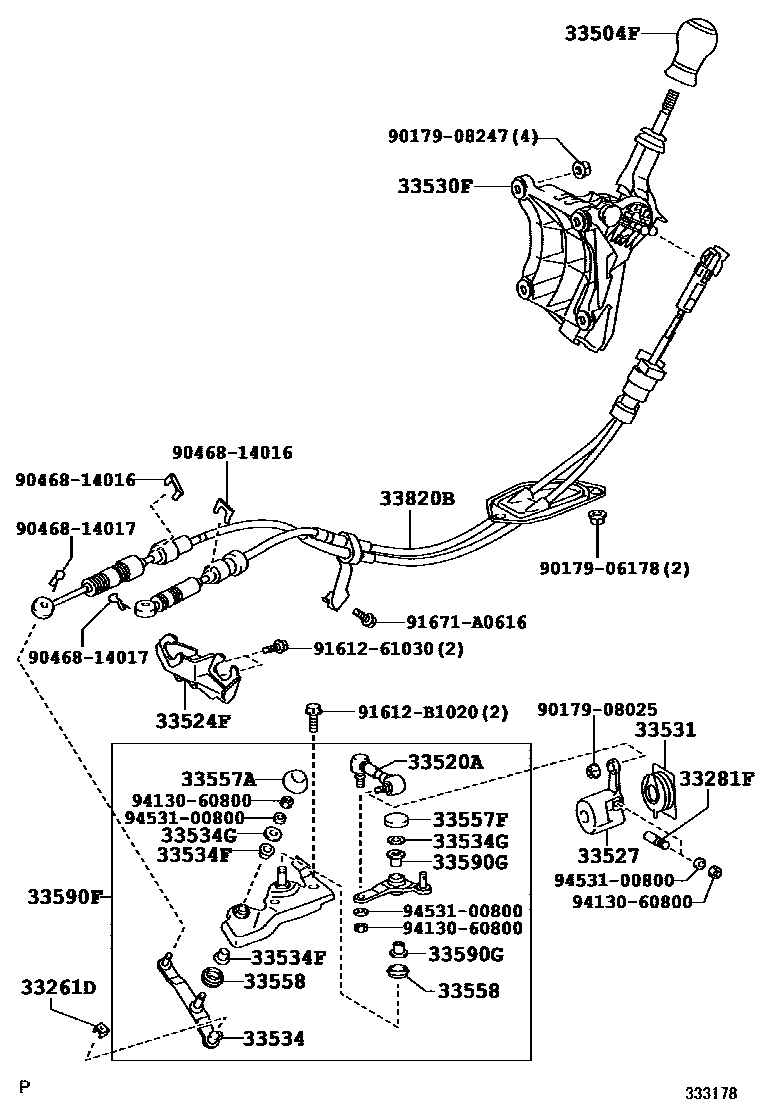

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0006 1

33261DBUSH (FOR SHIFT & SELECT LEVER)

main33557-33010iNDE150,ZRE151,ZZE150..5F200610-200812

33281FPIN, LEVER LOCK (FOR FLOOR SHIFT)

main33281-16020iNDE150,ZRE151,ZZE150..5F200610-200812

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12280-B0iNDE150,ZRE151..5FS..TERRA200610-200812

DK.GRAY,TRIM1#

main33504-12290-B0iNDE150,ZRE151..6FS..SOL200812-200910

DK.GRAY,TRIM1#,4#

main33504-12300-B1iNDE150,ZRE151,ZZE150..5F..TERRA200610-200812

DK.GRAY,TRIM1#

main33504-12310-B1iNDE150,ZRE151,ZZE150..5F..SOL200610-200812

DK.GRAY,TRIM1#,4#

sub33504-52220

main33504-12320-B1iADE150..TERRA200610-200901

DK.GRAY,TRIM1#

sub33504-33100

main33504-12330-B1iZRE151..SOL200910-201003

DK.GRAY,TRIM1#,4#

main33504-12330-C0supersedes 33504-12320-C0iNDE150,ZRE151201201-201208

STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH),BLACK,TRIM1#

33520ASHAFT ASSY, FLOOR SHIFT CONTROL

main33520-52050iNDE150,ZRE151,ZZE150..5F200610-200812

33524FBRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT)

main33524-12060iNDE150..5F200610-200812

main33524-52050iZRE151..5F200610-200812

main33524-52060iZZE150200610-200812

33527LEVER, CONTROL SHIFT (FOR FLOOR SHIFT)

main33527-52011iNDE150,ZRE151,ZZE150..5F200610-200812

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-12A00iNDE150,ZRE151,ZZE150..5F200610-200812

main33530-12A10iNDE150,ZRE151..TERRA200910

33531BOOT, DUST (FOR CONTROL SHIFT LEVER)

main33531-17010iNDE150,ZRE151,ZZE150..5F200610-200812

33534BELLCRANK, SELECTING

main33534-12120iZRE151,ZZE150..5F200610-200812

main33534-12130iNDE150..5F200610-200812

33534FBUSH (FOR SELECTING BELLCRANK NO.2)

main90386-12022×2iNDE150,ZRE151,ZZE150..5F200610-200812

33534GWASHER, PLATE (FOR SELECTING BELLCRANK NO.2)

main90201-08028×2iNDE150,ZRE151,ZZE150..5F200610-200812

33557ACOVER, SELECTING BELLCRANK DUST, NO.1

main33557-20010iADE150200901-200910

NO.2

main33557-32010iNDE150,ZRE151,ZZE150..5F200610-200812

main33557-33010iADE150200610-200901

NO.1

33557FCOVER, CONTROL BELLCRANK DUST (FOR FLOOR SHIFT)

main33557-20010iNDE150,ZRE151,ZZE150..5F200610-200812

33558COVER, SELECTING BELLCRANK DUST, NO.2

main33558-10030×2iNDE150,ZRE151,ZZE150..5F200610-200812

33590FCRANK ASSY, SELECTING BELL (FOR FLOOR SHIFT)

main33590-12070iZRE151,ZZE150..5F200610-200812

main33590-12080iNDE150..5F200610-200812

main33590-20040iADE150200901-200910

33590GBUSH (FOR SELECTING BELL CRANK)

main33546-20020×2iNDE150,ZRE151,ZZE150..5F200610-200812

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-12A50iNRE150200809-200910

main33820-12A90iZZE150200610-200812

main33820-12B00iNDE150..5F200610-200812

main33820-12B10iZRE151..5F200610-200812

main33820-12B30iADE150200610-200901

main33820-12E50iNDE150,ZRE15#..6F200812-200910

9017906178

main90179-06178

9017908025

main90179-08025

9017908247

main90179-08247

9046814016

main90468-14016

9046814017

main90468-14017

9161261030

main91612-61030

91612B1020

main91612-B1020

91671A0616

main91671-A0616

9413060800

main94130-60800

9453100800

main94531-00800

27 parts on this diagram · 5 diagrams in section
