TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

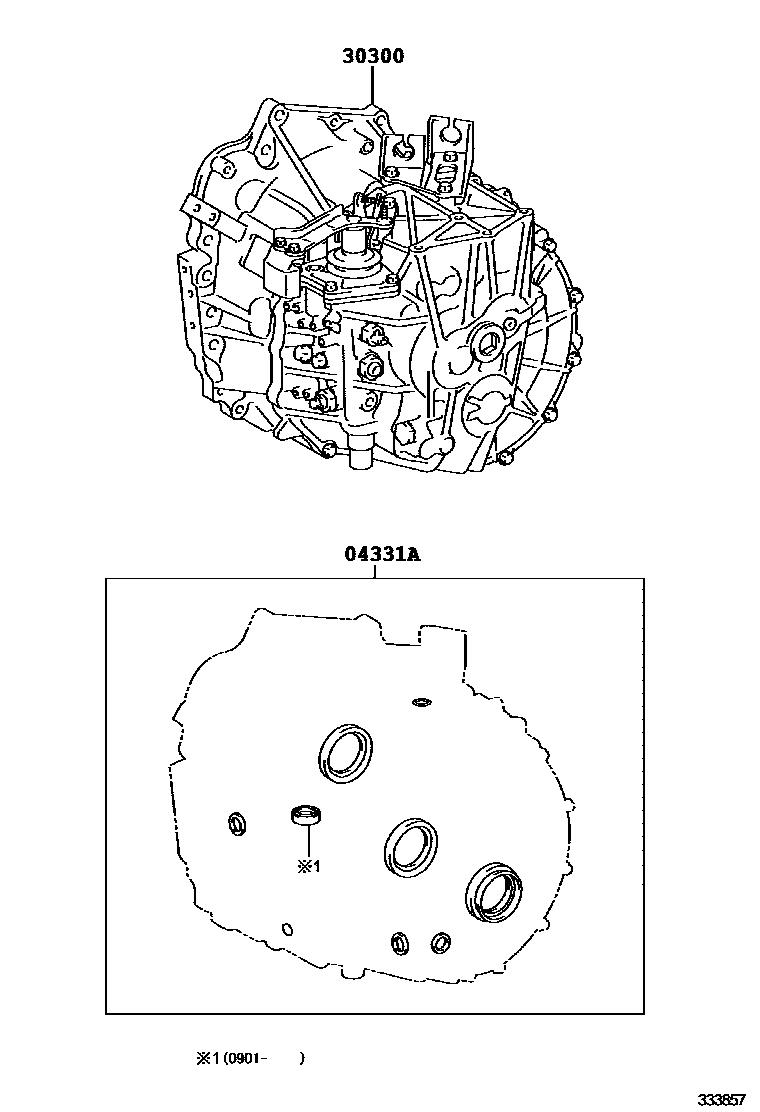

Parts diagram
04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)
main04331-12630i200610-200901
main04331-12640i200610-200812
sub04331-12641
main04331-12650i200610-200812
sub04331-12800
main04331-12660i200610-200812
main04331-12670i200610-200812
main04331-12690i200610-200812
sub04331-12691
main04331-20200i200901-200910
main04331-20250i200812-200910
*205
sub04331-20280
main04331-20250i200812-200910
*199
sub04331-20280
main04331-20250i200910-201208
*199,*205
sub04331-20280
main04331-52590i200810-200910
*205
sub04331-52592
main04331-52590i200809-200910
*199
sub04331-52592
main04331-52610i200812-200910
sub04331-52680
30300TRANSAXLE ASSY, MANUAL
main30300-12A80i200610-200812
C50
main30300-12A90i200610-200812
C50
main30300-12B00i200610-200812
C53
main30300-12B30i200610-200901
EA61
main30300-12C70i200809-200910
EC60,*199
sub30300-02170
main30300-12C80i200812-201004
EC60,*199
sub30300-02180
main30300-12D00i200812-201004
EC65,*199
main30300-12D10i200901-200910
EA60
main30300-12D40i200810-200910
EC60,*205
sub30300-02170
main30300-12D50i200812-201004
EC60,*205
sub30300-02180
sub30300-12D51
main30300-12D51i201004-201208
EC60,*205
main30300-12D60i200812-201004
EC65,*205
sub30300-12D61
main30300-12D61i201004-201208
EC65,*205
main30300-12D70i200812-200910
EC60,*205
sub30300-02190
sub30300-12D71
main30330-12040i200812-200910
EC60A
sub30330-12041
main30330-12050i200812-200910
EC65A
sub30330-12051
main30340-12020i200610-200812
C50A
main30340-12030i200610-200812
C53A

2 parts on this diagram · 5 diagrams in section
