FREE TRONIC

0001 1 0002 1

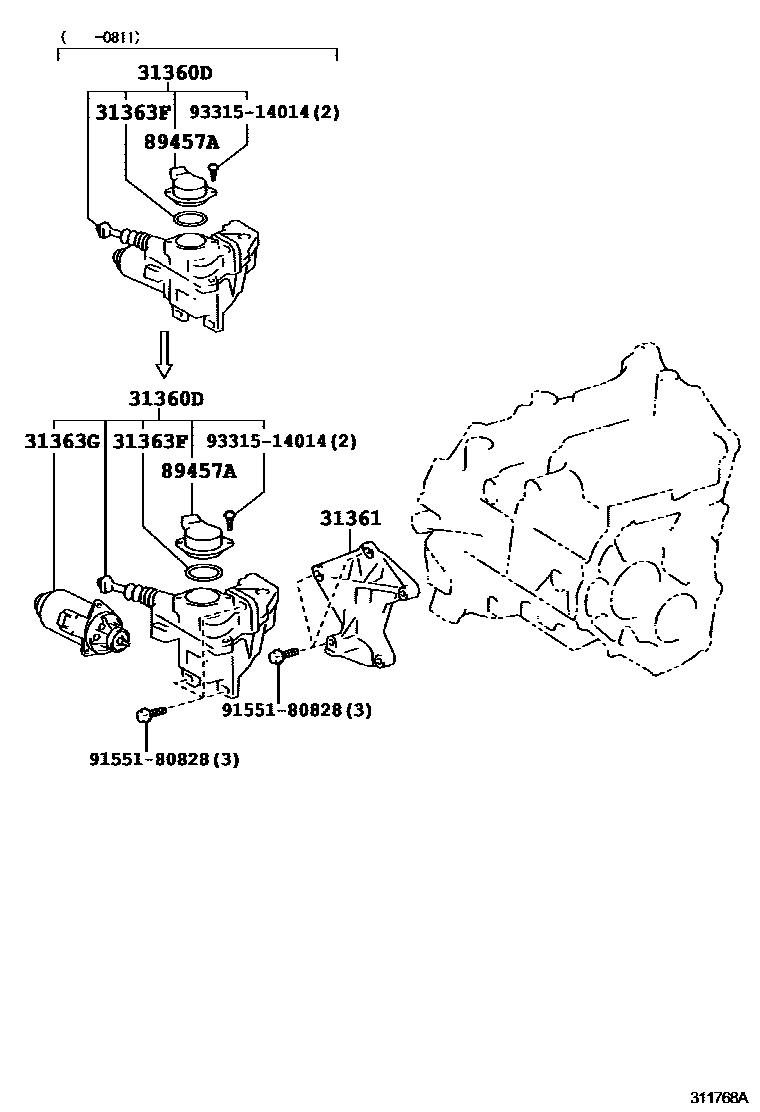

31360DACTUATOR ASSY, CLUTCH

main31360-12010iNDE150,ZRE151..5FS200702-200812

sub31360-12030

main31360-52041iNDE150,ZRE151..6FS200812-200910

sub31360-52042

main31360-64011iNDE150,ZRE151..5FS200610-200701

sub31360-12010

31361BRACKET, CLUTCH ACTUATOR, NO.1

main31361-12010iNDE150,ZRE151..6FS200812

main31361-64010iNDE150,ZRE151..5FS200610-200812

31363FRING, O(FOR CLUTCH ACTUATOR ACCUMULATOR)

main90301-37010iNDE150,ZRE151..5FS200610-200812

31363GMOTOR, CLUTCH ACTUATOR

main31363-12010iNDE150,ZRE151..5FS200811-200812

sub31363-12040

89457ASTROKE SENSOR, CLUTCH

main89457-52010iNDE150,ZRE151..5FS200610-200910

9155180828

main91551-80828

9331514014

main93315-14014

7 parts on this diagram · 2 diagrams in section
