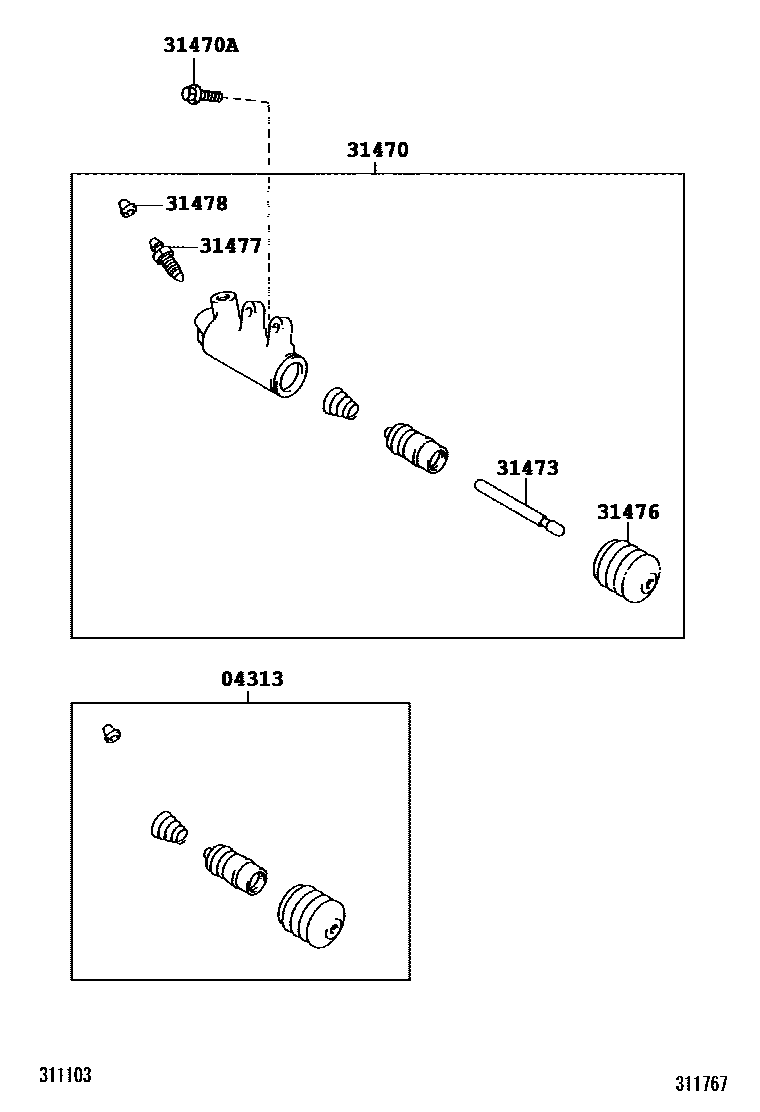

CLUTCH RELEASE CYLINDER

0001 1 0002 1 0003 1 0004 1 0005 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17040iZZE150¥860200610-200812

main04313-35060iNDE150..5F¥780200610-200812

main04313-37030iZRE151..5F¥780200610-200812

main04313-53010iADE150¥780200610-200910

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-12140iZZE150¥7,400200610-200812

main31470-12160iZRE151..5F200610-200812

sub31470-12161

main31470-12180iNDE150..5F200610-200812

main31470-12190iADE150¥7,100200610-200910

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iADE150,ZZE150;NDE150,ZRE151..5F¥170200610-200910

*8-1.25PX22-17.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-20031iZZE150¥470200610-200910

main31473-22030iNDE150,ZRE151..5F¥520200610-200812

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iADE150¥230200610-200910

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iNDE150,ZRE151,ZZE150..5F¥200200610-200910

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iNDE150,ZRE151,ZZE150..5F¥160200610-200910

main31478-30010iNDE150,NRE150,ZRE151..6F¥160200809-200910

*201

main31478-30010iNDE150,NRE150,ZRE15#..6F¥160200810-200910

*206

main31478-30010iNDE150,ZRE151¥160200910

*201,*206

7 parts on this diagram · 5 diagrams in section
