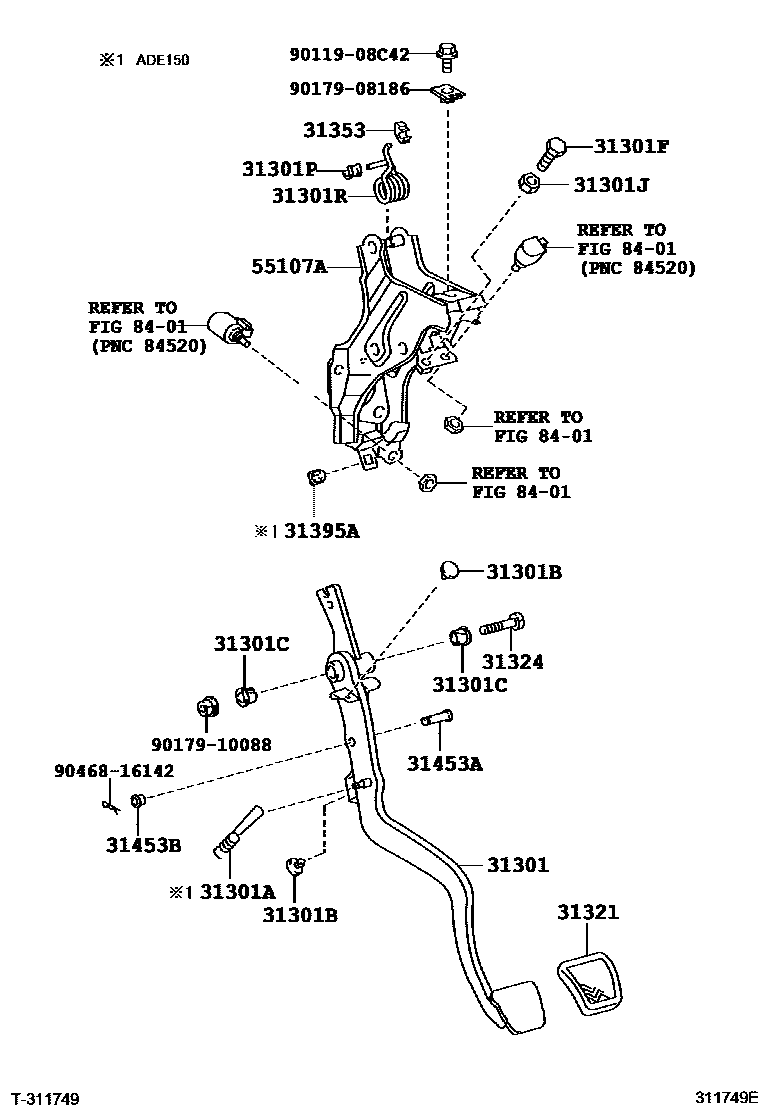

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-12510iNRE150,ZRE151..LHD..6F200610-200905

sub31301-12H01

main31301-12511iZRE151200906-200910

main31301-12520iADE150..LHD200610-200905

sub31301-12H00

main31301-12521iADE150,NDE150,ZRE152..LHD..6F200906-200910

main31311-12370iNDE150..RHD..6F;ADE150,NRE150,ZRE15#..RHD..6F..(DCRL,HTWC,HTWVM)¥2,000200610-201205

main31311-12371iNDE150¥1,390201205

31301ASPRING(FOR CLUTCH PEDAL)

main31394-25010iADE150..LHD200610-200910

main90507-14047iZRE151..TERRA¥100200610-201003

main90905-06079iADE150..RHD¥240200610-200910

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iADE150¥110200610-200910

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iNDE150,ZRE151¥120200610-200910

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10055iZRE151¥110200906-200910

main90101-10369iNDE150..LHD..6F;ADE150,NRE150,ZRE15#..LHD..6F..(DCRL,HTWC,HTWVM)¥110200610-200910

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main46441-12020iZRE151200906-200910

main94130-61000iNDE150..LHD..6F;ADE150,NRE150,ZRE15#..LHD..6F..(DCRL,HTWC,HTWVM)¥70200610-200910

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-06055iNDE150..LHD..5F¥100200610-200910

31301RSPRING, COMPRESSION(FOR TURNOVER SPRING SEAT)

main31394-12050iADE150..RHD200610-200910

main31394-12060iNDE150,ZRE152..RHD..6F¥480200610-200910

main31394-12070iADE150..LHD¥760200610-200910

main31394-12080iNDE150..LHD..5F¥440200610-200910

31321PAD, CLUTCH PEDAL

main31321-42010iNDE150,ZRE151¥230200610-200910

31324SHAFT, CLUTCH PEDAL

main90101-10039iNDE150¥160200610-200910

main90109-10167iNDE150..LHD..6F;ADE150,NRE150,ZRE15#..LHD..6F..(DCRL,HTWC,HTWVM)¥190200610-200910

31353HOLDER, CLUTCH PEDAL SPRING

main31353-26010iADE150¥210200610-200910

31395AHOOK, PEDAL SPRING, NO.1

main31395-33020iADE150¥90200610-200910

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08256iNDE150,ZRE151,ZZE150..LHD..5F¥130200610-201003

L=36.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iNDE150,ZRE151,ZZE150..LHD..5F¥110200610-201003

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-12270iNRE150,ZRE151..RHD..6F200610-200910

main55107-12280iNRE150,ZRE151..LHD..6F200610-200905

sub31301-12H01

main55107-12281iNRE150,ZRE151..LHD..6F200906-200910

main55107-12290iADE150..RHD¥4,010200610-201205

main55107-12291iNDE150¥2,780201205

main55107-12300iNDE150..LHD..5F200610-200905

sub31301-12H00

main55107-12301iADE150,NDE150,ZRE152..LHD..6F200906-200910

8401

9011908C42

main90119-08C42¥80

9017908186

main90179-08186¥210

9017910088

main90179-10088¥100

9046816142

main90468-16142¥70

20 parts on this diagram · 14 diagrams in section
