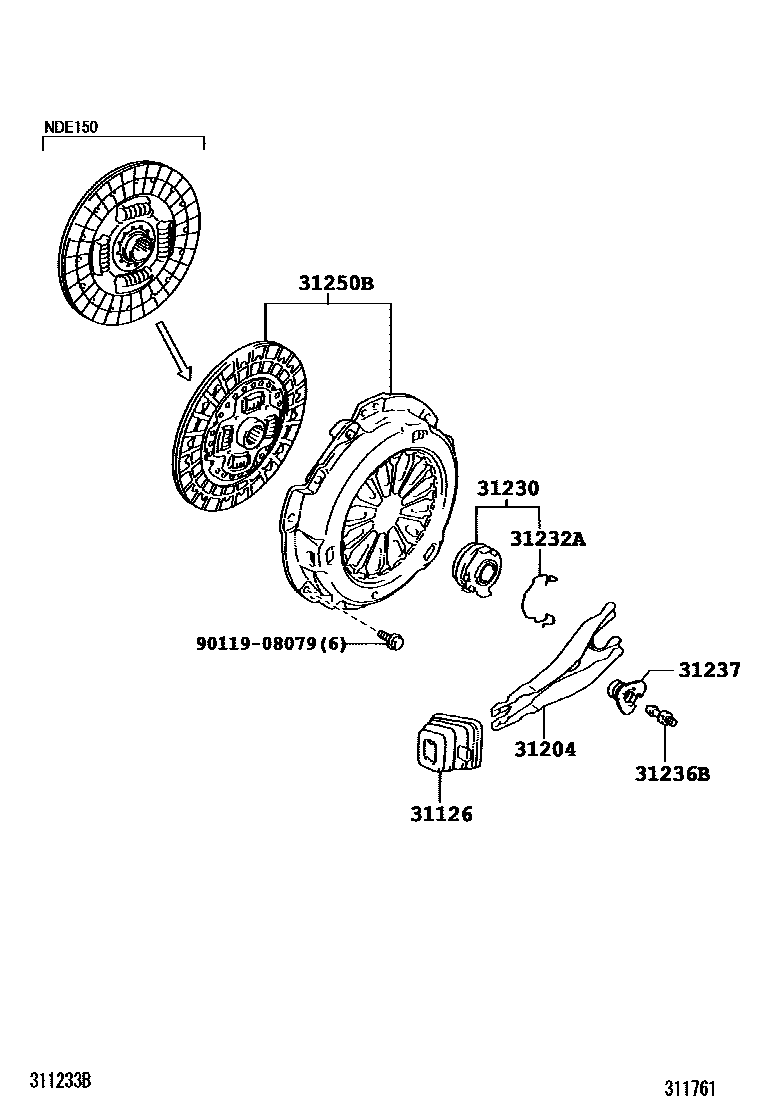

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1 0004 1 0005 1

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iNDE150,ZRE151,ZZE150..5F200610-200812

main31126-20080iADE150200610-200901

main31126-64010iNDE150,ZRE151..5FS200610-200812

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-17010iZZE150200610-200812

main31204-20140iADE150200610-200901

main31204-52010iNDE150,ZRE151..5F200610-200812

main31204-64010iNDE150,ZRE151..5FS200610-200812

31230BEARING ASSY, CLUTCH RELEASE

main31230-12180iNDE150..5F200610-200812

sub31230-12181

main31230-12191iZRE151,ZZE150..5F200610-200812

main31230-17011iNDE150,ZRE151..5FS200610-200812

sub31230-17012

main31230-20200iADE150200610-200901

31232ACLIP, RELEASE BEARING HUB

main31232-12070iZRE151,ZZE150..5F200610-200812

main31232-12080iNDE150..5F200610-200812

main31232-17010iNDE150,ZRE151..5FS200610-200812

main31232-20031iADE150200610-200901

31236BSUPPORT, RELEASE FORK

main31236-12020iNDE150,ZRE151,ZZE150200610-200812

main31236-20080iADE150200901-200910

31237BOOT, CLUTCH RELEASE FORK SUPPORT

main31237-12010iNDE150,ZRE151..5FS200610-200812

sub31237-12011

31250DISC ASSY, CLUTCH

main31250-12480iZRE151..6FS200812-200910

main31250-12500iZZE150200610-200812

main31250-12510iZRE151..5F200610-200812

main31250-12520iNDE150..5F200610-200812

sub31250-52110

main31250-12600iZRE15#..6F200812-200910

sub31250-12601

main31250-52120iNRE150200809-200910

sub31250-52210

main31250-52130iNDE150200910-201103

main31250-52131iNDE150201104

sub31250-52132

main31250-52150iNDE150..6FS200812-200910

sub31250-52151

31250BDISC SET, ADJUSTABLE CLUTCH

main31250-19085iNDE150..5FS200703-200812

main31250-19095iZRE151..5FS200703-200812

main31250-69045iZRE151..5FS200610-200612

main31250-69046iZRE151..5FS200701-200702

main31250-69055iNDE150..5FS200610-200612

main31250-69056iNDE150..5FS200701-200702

9011908079

main90119-08079

9 parts on this diagram · 5 diagrams in section
