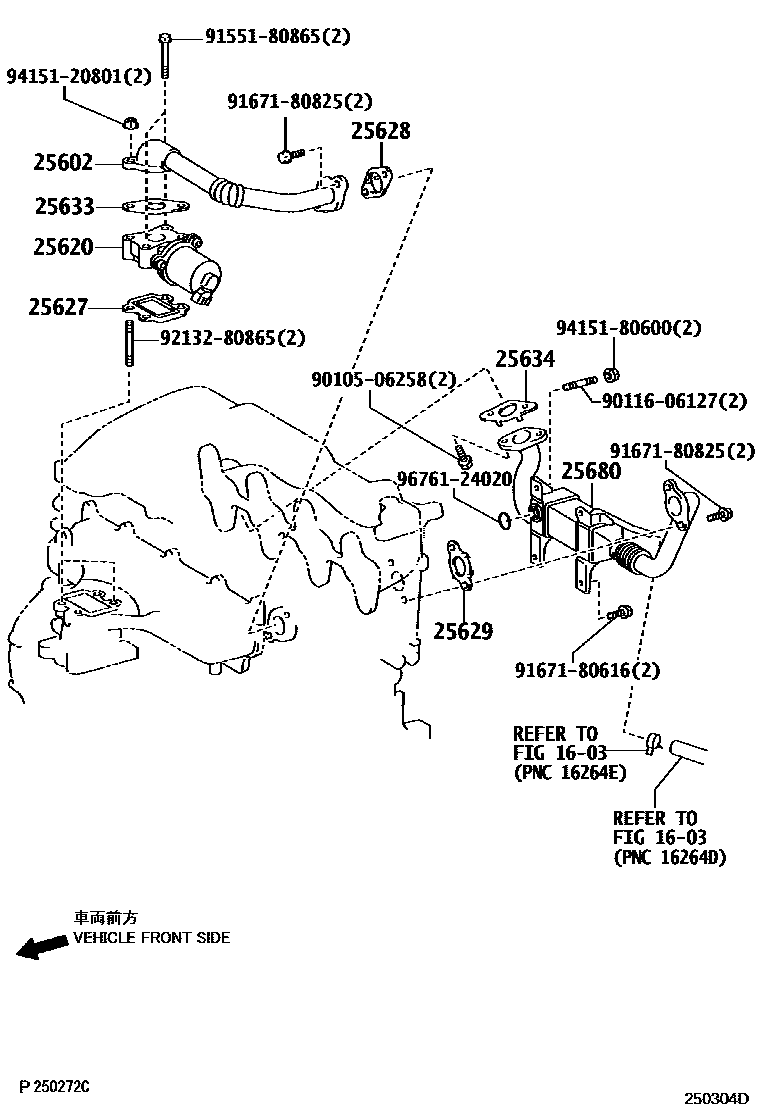

EXHAUST GAS RECIRCULATION SYSTEM
1603
25602PIPE SUB-ASSY, EGR, NO.2
(L)
(J)
25620VALVE ASSY, EGR
25627GASKET, EGR VALVE
(L)
(J)
25629GASKET, EGR VALVE ADAPTER
(L)
(J)
25633GASKET, EGR VALVE
(L)
(J)
25634GASKET, EGR PIPE
25680COOLER ASSY, EGR
9010506258
main90105-06258
9011606127
main90116-06127
9155180865
main91551-80865
9167180616
main91671-80616
9167180825
main91671-80825
9213280865
main92132-80865
9415120801
main94151-20801
9415180600
main94151-80600
9676124020
main96761-24020
18 parts on this diagram · 6 diagrams in section
