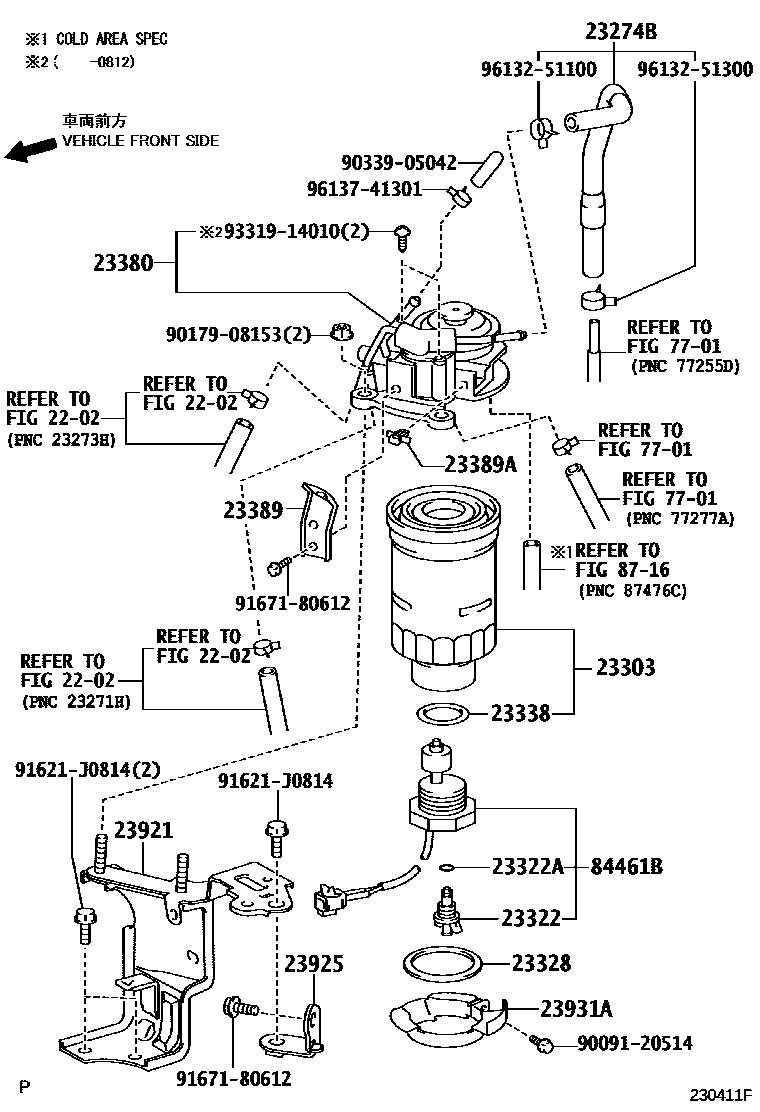

FUEL FILTER

0001 1 0002 1 0003 1 0004 1

2202

23274BHOSE, FUEL, NO.3

main23274-26060i1NDTV..NDE150200610-201208

23303ELEMENT SUB-ASSY, FUEL FILTER

main23390-26140i1NDTV..NDE150200610-200812

sub23390-26160

main23390-26160i1ADFTV..ADE150200812-201208

23322PLUG, DRAIN(FOR FUEL FILTER)

main23388-64470i1NDTV..NDE150200610-200910

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i1NDTV..NDE150200610-200910

23328GASKET(FOR FUEL FILTER)

main23385-30160i1NDTV..NDE150200610-201208

23338GASKET(FOR WARNING SWITCH)

main23344-64010i1NDTV..NDE150200610-201208

23380CAP ASSY, FUEL FILTER

main23380-0R051i1NDTV..NDE150200812-201208

sub23380-0R052

sub23380-26170

main23380-26130i1NDTV..NDE150200610-200812

sub23380-26131

main23380-26131i1ADFTV..ADE150200812-200901

sub23380-26132

23389CLAMP, FUEL FILTER

main23389-26130i1NDTV..NDE150200610-201208

23389ACLAMP, FUEL FILTER

main23389-27130i1NDTV..NDE150200610-201208

23921SUPPORT, FUEL FILTER

main23921-26040i1NDTV..NDE150200610-200807

sub23921-26041

main23921-26041i1ADFTV..ADE150200807-201208

23925STAY, FUEL FILTER SUPPORT

main23925-26010i1ADFTV..ADE150200610-200807

sub23925-26011

main23925-26011i1NDTV..NDE150200807-201208

23931ACOVER, FUEL FILTER

main23931-26010i1ADFTV..ADE150200610-200901

sub23931-26031

main23931-26030i1ADFTV..ADE150200812-201208

sub23931-26031

7701

84461BSWITCH, LEVEL WARNING

main84461-60080iNDE150200610-201110

sub84461-60081

main84461-60081iNDE150201110-201208

sub84461-60082

8716

9009120514

main90091-20514

9017908153

main90179-08153

9033905042

main90339-05042

91621J0814

main91621-J0814

9167180612

main91671-80612

9331914010

main93319-14010

9613251100

main96132-51100

9613251300

main96132-51300

9613741301

main96137-41301

25 parts on this diagram · 4 diagrams in section
