INJECTION NOZZLE

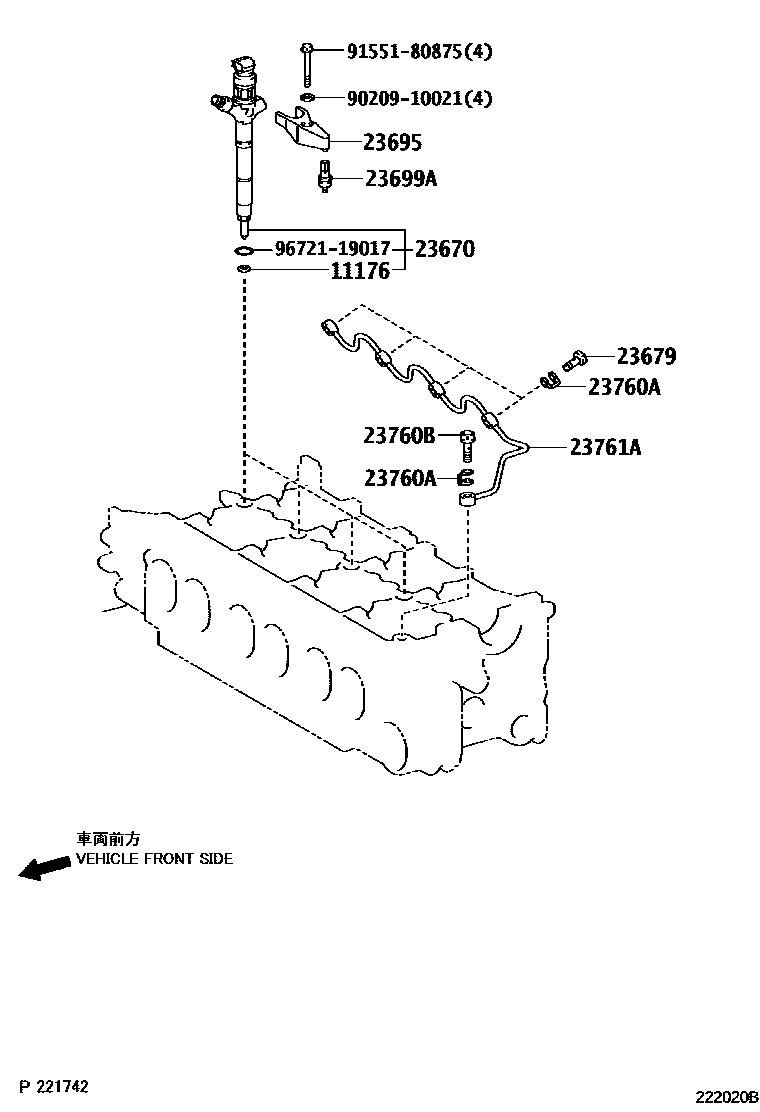

Parts diagram
11176SEAT, INJECTION NOZZLE
main11176-26010i200610-200811
sub11176-51010
main11176-26020i200901-200910
main11176-26030i200811-200901
sub11176-51010
main11176-33010i200610-200910
23670INJECTOR ASSY
main23670-09180i200610-200712
sub23670-09280
main23670-09190i200610-200712
sub23670-09270
main23670-09270i200712-200901
main23670-09280i200712-200901
main23670-09370i201112
main23670-09370i201103-201112
(L)
main23670-29115i200901-200910
sub23670-29116
main23670-39105i200610-200812
main23670-39325i200812-200911
sub23670-39415
main23670-39415i200911-201112
(J)
23679SCREW, INJECTOR FOLLOW
main23679-0R010i200610-200901
main23679-26020i200901-200910
23695CLAMP, NOZZLE HOLDER, NO.1
main23695-0R010i200610-200705
sub23695-0R011
main23695-0R011i200705-200707
sub23695-0R012
main23695-0R012i200707-200901
main23695-0R021i200901-200910
TYPE A:REFER ILLUST.
main23695-26020i200901-200910
TYPE B:REFER ILLUST.
main23695-33010i200610-200812
main23695-33020i200812-200910
23699ASEAT, NOZZLE HOLDER CLAMP
main23699-26010i200610-200901
main23699-26021i200901-200910
TYPE A:REFER ILLUST.
main23699-26030i200901-200910
TYPE B:REFER ILLUST.
main23699-33010i200610-200812
main23699-33020i200812-200910
23760PIPE ASSY, NOZZLE LEAKAGE
main23760-0W010i201103
(L)
main23760-33020i200610-200812
main23760-33030i200812-200910
main23760-33030i200910-201112
(J)
23760AGASKET
main90904-30008i200610-200910
23760BBOLT, UNION(FOR NOZZLE LEAKAGE PIPE)
main90401-08016i200610-200901
23761APIPE, NOZZLE LEAKAGE, NO.1
main23761-0R011i200610-200704
sub23761-26010
main23761-0R011i200704-200901
(L)
sub23761-26010
main23761-0R040i200901-200910
(L)
main23761-26010i200704-200901
(J)
main23761-26030i200901-200910
(J)
9020910021
main90209-10021
9155180875
main91551-80875
9672119017
main96721-19017

12 parts on this diagram · 5 diagrams in section
